AMRAAM: Deploying & Developing America’s Medium-Range Air-Air Missile

Raytheon’s AIM-120 Advanced, Medium-Range Air to Air Missile (AMRAAM) has become the world market leader for medium range air-to-air missiles, and is also beginning to make inroads within land-based defense systems. It was designed with the lessons of Vietnam in mind, and of local air combat exercises like ACEVAL and Red Flag. This DID FOCUS article covers successive generations of AMRAAM missiles, international contracts and key events from 2006 onward, and even some of its emerging competitors.

One of the key lessons learned from Vietnam was that a fighter would be likely to encounter multiple enemies, and would need to launch and guide several missiles at once in order to ensure its survival. This had not been possible with the AIM-7 Sparrow, a “semi-active radar homing” missile that required a constant radar lock on one target. To make matters worse, enemy fighters were capable of launching missiles of their own. Pilots who weren’t free to maneuver after launch would often be forced to “break lock,” or be killed – sometimes even by a short-range missile fired during the last phases of their enemy’s approach. Since fighters that could carry radar-guided missiles like the AIM-7 tended to be larger and more expensive, and the Soviets were known to have far more fighters overall, this was not a good trade…

• Some MRAAM History, and AMRAAM’s Design Approach
• AMRAAM: Versions & Derivatives
• AMRAAM’s International Competitors
• AMRAAM: Program [updated]
• AMRAAM: Contracts & Key Events, FY 2006-Present [updated]
• Additional Readings & Sources

Some MRAAM History, and AMRAAM’s Design Approach

Before 1991, the combat record of all air-air missiles was generally poor – and most of the kills scored in combat belonged to short-range heat-seeking missiles. The USA entered Vietnam expecting that 70% of AIM-7 Sparrow missile shots would result in a kill. The real-world total was 8%, even though the USA faced older MiG 17-21 aircraft, rather than the newest Russian fighters.

That trend began to shift somewhat in the 1980s.The Falklands War had no aircraft on either side that could use medium-range air-air missiles, but Israeli F-15s and F-16s used AWACS and poor Syrian tactics to produce an 88-0 kill ratio in 1982. The F-15s’ medium-range AIM-7F Sparrow missiles performed better in terms of fire:kill ratios than they had in past conflicts, but the vast majority of kills were still made with Sidewinder or Python short-range missiles. Further afield, the Iran-Iraq War saw Iran’s F-14 Tomcats demonstrate good performance with their long-range Phoenix missiles, against Iraqi aircraft that often lacked radar warning receivers, and never saw the missiles coming. A reprise of sorts took place in 1991, when exceptional situational awareness and poor Iraqi tactics allowed US aircraft to score around 80% of their Iraqi air-air kills in 1991 with modernized AIM-7 Sparrow medium-range missiles.

The lessons that had led to the AMRAAM program still applied, however, and the conflicts in Lebanon, Iran, and Iraq demonstrated the potential value of longer-range missiles and some of their enabling technologies. That helped AMRAAM retain its support, despite initial development glitches and rising costs. It still aimed to remove the shortcomings that made the AIM-7 a somewhat dangerous weapon for its own side. The key lay in its new approach to guidance.

In beyond-visual-range engagements, AMRAAM is guided initially by its inertial reference unit and microcomputer, which point it in the right direction based on instructions from the targeting aircraft or platform. A mid-course target location update can be transmitted directly from the launch radar system to correct that if necessary, an approach that may avoid triggering enemy radar warning receivers. In the final phase of tracking, however, the internal active radar seeker becomes completely independent and guides the missile through its own active lock-on. Most sources place its reported range at about 50 km/30 miles¹.

When coupled with modern radars, AMRAAM’s guidance approach allows a fighter to launch and control many missiles at once, avoiding a dangerous fixation on one target. Its autonomous guidance capability also provides a pilot with critical range-preserving launch and leave capability, improving survivability and helping to avoid “mutual kill” situations. Even more advanced technologies are emerging that go one step further, and allow secure “hand-off” of a fired AMRAAM to another friendly fighter.

All of these abilities, of course, assume an air environment in which it is possible to use IFF (Identification, Friend or Foe), AWACS (Airborne Warning & Control Systems) aircraft, Link 16/MIDS, etc. to safely distinguish enemy aircraft from friendlies. This has been a problem in past conflicts, resulting in rules of engagement that force the use of visual identification before firing. Obviously, that negates many of the tactical advantages of having beyond-visual-range (BVR) missiles.

Customers & Performance

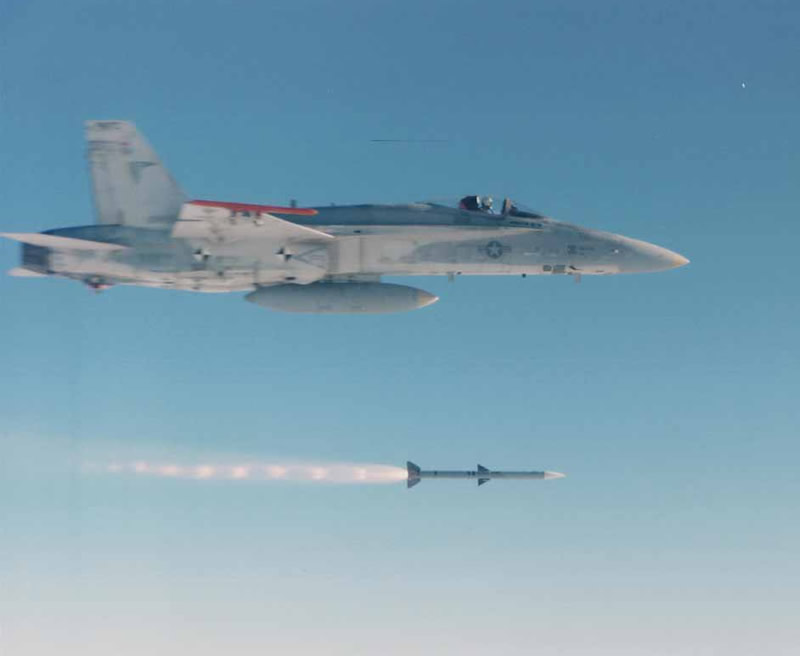

AMRAAM is a joint U.S. Air Force and Navy program that achieved initial operational capability in 1991, and is still in brisk production over 20 years later. At least 28 other countries have also bought AMRAAM variants, which can be fitted to F-15s, F-16s, the F/A-18 family, F-22s, F-35s, EADS Eurofighters, and Saab’s JAS-39 Gripen. Germany’s aging F-4 Phantom IIs, the British/German/Italian Panavia consortium’s Tornado aircraft, and Britain’s Harriers can also carry them.

Dassault’s Mirage 2000v5 and later have been advertised at times as having this capability, but confirmation is weak, and the reports may have represented offers to add this capability. Dassault’s 4th generation Rafale aircraft is also listed in some venues as having AMRAAM capability, though Raytheon has never said so, and all Rafales currently operate with MBDA’s MICA missiles instead.

Even so, AMRAAM’s record of sales success has made it the global standard for medium-range AAMs, and the number of beyond visual range kills as a percentage of total air-to-air victories has risen sharply during the “AMRAAM era.”

What does this mean in practice for missile performance?

To date, RAND’s Project Air Force notes that AIM-120 missiles have demonstrated 10 kills in 17 firings, for a 59% kill rate. That’s a significant improvement over the AIM-7’s record, and AIM-120A and AIM-120C missiles split these kills equally. Victims have included an Iraqi MiG-25 and MiG-29, 6 Serbian MiG-29s, a Serbian J-21 Jastreb trainer/light attack jet, and the accidental downing of a US Army UH-60A helicopter. The last of these incidents occurred in 1999.

One caution regarding these figures is that both AMRRAM missiles, and electronics used for electronic countermeasures, have both advanced considerably in the dozen-plus since the missile’s last combat kill. A second set of cautions involves the circumstances of these victories. There are no reports of electronic countermeasures being used by any AMRAAM victim, none of these victims were equipped with beyond visual range weapons of their own, the Iraqi MiGs were fleeing and non-maneuvering, and the Serbian MiGs reportedly had inoperative radars.

These difficulties in assessing true BVRAAM (beyond visual range air-air missile) performance in the modern era are magnified by a corollary fact: None of AMRAAM’s competitors have been able to compile much of a performance record, either. With the end of recurring full-scale Arab wars against Israel, the globe’s top trial venue for full-scale warfare has evaporated, leaving few opportunities to put modern anti-aircraft systems to a real test.

AMRAAM: Upgrades & Derivatives

Subsequent modifications have produced improvements in a number of areas, but the AIM-120D is likely to be the first really large jump in AMRAAM capabilities from version to version. It should be noted, however, that incremental upgrades add up over time. An AIM-120C-6, for instance, is a generation beyond an AIM-120A in terms of its overall capabilities.

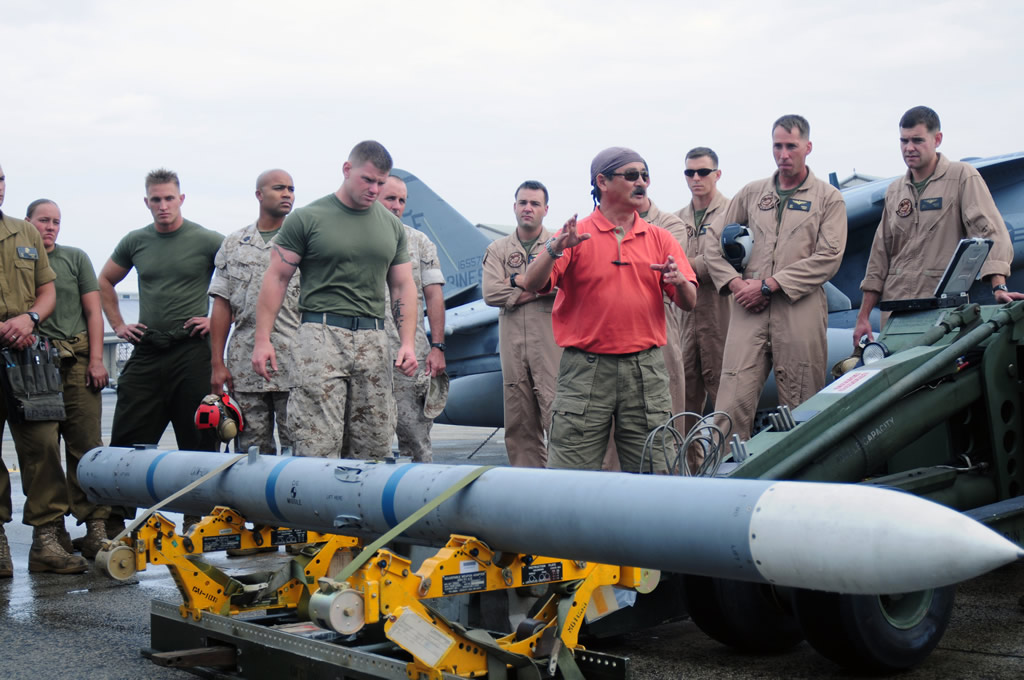

• AIM-120B was first delivered in late 1994, had a number of electronics upgrades, from the guidance section to hardware modules and its processor. Its hardware was also reprogrammable, which is not possible with the AIM-120A.

• AIM-120C missiles featured a change in shape, with smaller fins that would allow 3 missiles to be carried inside the F-22A Raptor’s stealth-maximizing internal weapons bays. A number of incremental updates brought it to AIM-120C-6 status, including guidance section upgrades, smaller control electronics, a slightly larger rocket motor, an improved warhead, and a target detection upgrade. The AIM-120C-7 is just entering production, with an improved seeker head, greater jamming resistance, and slightly longer range. At present, the AIM-120-C7 is also the most advanced AMRAAM approved for export beyond the USA.

• US-only AIM-120D missiles will feature the C7 improvements, but the D version reportedly adds a very strong set of upgrades. Pentagon documents confirm the use of smaller system components; with an upgraded radar antenna, receiver & signal processor; GPS-aided mid-course navigation; an improved datalink; and new software algorithms. The new hardware and software is rumored to offer improved jamming resistance, better operation in conjunction with modern AESA radars, and an improved high-angle off-boresight “seeker cone,” in order to give the missile a larger no-escape zone. Less-publicized improvements reportedly include a dual-pulse rocket motor, for up to 50% more range and better near-target maneuvering. At present, the US will not export this missile.

Other AMRAAM-Related Systems

Other AMRAAM variants exist. The most interesting AMRAAM modification is NCADE, an R&D program designed to see if AMRAAMs modified with an AIM-9X Sidewinder’s infrared seeker and a 2nd stage rocket booster could be forward-deployed on fighters, and used to shoot down ballistic missiles during their lift-off phase.

A parallel set of modifications and enhancements have seen AMRAAM missiles pressed into service in a surface-air missile role. Programs like Norway’s NASAMS, the USMC’s CLAWS (ended in 2006), etc. are often referred to by the umbrella term SLAMRAAM, for Surface Launched AMRAAM. SL-AMRAAM contractors include Raytheon, as well as Kongsberg Defence and Aerospace of Norway, and Boeing.

The US Marines killed CLAWS in 2006, the same year the US Army’s SLAMRAAM passed its System Critical Design Review. The Army eventually teed up SLAMRAAM for cancellation as well, in January 2011, but exports keep it alive and well. Kongsberg has sold its related NASAMS system to Norway, Finland, The Netherlands, and Spain. There are rumors that a SLAMRAAM type system has been deployed in Egypt, and such systems have drawn confirmed serious buying interest from Chile, Oman, and the UAE.

The 3 surface launchers for AMRAAM at present include the 8-missile “universal launcher” which can be mounted on medium trucks, the 5-missile CLAWS for smaller vehicles, and the 6-missile fixed NASAMS: Norwegian Advanced Surface-to-Air Missile System, already in service in several countries. All 3 launcher types provide 360 degree coverage, with a 70 degree off boresight capability – i.e. a 140 degree “acquisition cone”. The key is integrating the system, and its accompanying IFCS control system and AN/MPQ-64F1 Improved Sentinel radars, with a country’s wider air defense command and control systems. In June 2007, Raytheon announced more SLAMRAAM upgrades via options to add SL-AMRAAM-ER extended range variants (likely via a rocket booster on the missiles), and an AIM-120 variant with an AIM-9X infrared seeker. The latter would allow a mix-and-match combination of radar/infrared SAM sets, similar to the Spyder, VL-MICA, etc. being fielded by international rivals. On which topic…

AMRAAM’s International Competitors

The AMRAAM’s most prominent global competitors, in declining order of prominence, include:

Russia’s Vympel R-77, also known as the AA-12 Adder and colloquially called the ‘AMRAAMski’. It is a larger missile with a similar guidance approach, and reportedly offers a slightly longer range, varying from 60-90 km (36-54 miles) depending on assessments of its drag coefficient. It looks a bit like the French MICA missiles, but its “screen door” or “potato masher” tail fins are its most distinguishing characteristic. Comparisons of its maneuverability, electronics, and hence its fire:kill effectiveness ratio remain a matter of speculation in public-domain circles, and there are also reports that the R-77 can be launched and ‘handed off’ to another aircraft. This has tactical implications, as discussed by one DID source:

“The ‘cobra’ maneuver… where the Flanker pitchers [vertically] to over 100 degrees is not a stunt, it is a missile launch maneuver for a over-the-shoulder launch on a passing head-on target by an IMFIL missile, as briefed to me by the Director of TsAGI. German Zagainov.”

The R-77 can equip modern SU-30 fighters like the SU-30MK2, modernized SU-27s, and some of the most modern MiG-29/35 offerings as well. There are also reports that India has even fitted the missile to its upgraded MiG-21 ‘Bisons,’ leveraging their new Phazotron Kopyo radars and upgraded avionics.

There are reports that the coming RVV-MD upgrade may extend the missile’s range to 110 km. A R-77M ramjet version has reportedly been developed with 150+ km range, but confirmation of the ramjet program’s success and status remain sketchy. Firmer reports² now exist re: Russia’s ongoing development of the Novator K-100-1, which is based on the KS-172 missile instead; it will have a reputed range of 200-400 km.

MBDA’s Meteor, which also includes Saab in the development group and adds Boeing as its American partner. The Meteor stems from Europe’s different fighter design philosophy and acquisition timing. Their 4th generation fighters were introduced in the 1990s, and feature less stealth than the F-22A or F-35. The Eurofighter, Gripen, and Rafale can be fitted with existing missiles like AMRAAM or MICA, but ultimately the Euro vision was that air supremacy against threats like the SU-30/R-77 combination required a long range (100 km/ 60 miles or more) missile – one with extreme maneuverability and ramjet propulsion that gives it Mach 4 powered flight to the very end of its range, rather than the “burn and coast” approach of most missiles. The Meteor is that missile, and it is currently undergoing testing and evaluation; it’s expected in-service around 2011.

Meteor BVRAAMs can be carried on the Saab JAS-39, EADS/BAE Eurofighter, and possibly the Dassault Rafale; MBDA has previously announced that it will be modified in future to fit the F-35’s stealth-enhancing weapon bays. Given its characteristics, it also seems like a natural future upgrade for many older and less stealthy aircraft, from Tornados to F/A-18s etc. Forecast International sees MBDA as Raytheon’s biggest overall air-air missile competitor in the coming years.

MBDA’s MICA family. Inherited from the French firm Matra, MICA uses a guidance philosophy similar to AMRAAM’s and has very good maneuverability; MBDA posts its range as 60 km. What’s different is that it comes in 2 versions and is designed for use at all engagement distances. The MICA IR version uses infrared homing, like many short-range AAMs. This allows it to be used at close range, as well as providing no-warning interceptions at longer ranges if used with the advanced IRST (InfraRed Search and Track) type optronics that have become common on 4+ generation fighters. The MICA RF uses active radar guidance like AMRAAM, and is in service with France, Qatar and Taiwan.

MBDA’s truck-mounted air defense version is imaginatively named the Vertical Launch MICA, and its ability to carry IR-guided MICA missiles allows effective operation in environments where turning on one’s radar will attract enemy strikes.

RAFAEL’s Derby. Derby 4 looks a lot like AMRAAM, but it’s actually based on Israel’s own well-developed missile technology. It lists a 50 km effective range like AMRAAM, but this is questionable given its size and commonalities with the shorter-range Python 4; some observers place its range closer to 30 km. Derby 4 has been updated with a new seeker, has lock-on after launch capability for snap employment in short-range aerial engagements, and features its own programmable ECCM (Electronic Counter-Countermeasures) technologies. Apparently, it still lacks an in-flight datalink, and must rely on last-reported position before switching to active mode. Derby has been exported to a few countries, but is not yet in what one might call widespread use. This detailed review may prove useful.

Derby has a ground-launched air defense system too: the Spyder combines 4 truck-mounted Derby and short-range 5th generation IR/imaging-guided Python 5 missiles, to create a versatile system adapted for use against a wider range of threats. A new Spyder 6×6 truck version was unveiled at Eurosatory 2006 that offered 8 missiles in any mix and puts boosters on all missiles to improve their range and performance. Customers include India’s order for 18 SPYDER systems of 5 vehicles each, and Peru’s buy of 6 systems.

AMRAAM: Program

AMRAAM continues to be funded in the USA as a joint USAF/ Navy effort, based on proportional contributions, and AIM-120C missiles are in active production for the US military and allied countries. The USA alone is expected to account for nearly 18,000 AMRAAMs bought.

Unfortunately, during the May 2010 AMRAAM International Users’ Conference, the USAF’s 649th Armament Systems Squadron raised the issue of “Diminishing Manufacturing Sources and Material Shortages (DMSMS).” In English, it means that companies who manufacture some parts are either going out of business, or ceasing production. The 649th ARSS said component shortages could begin as soon as 2012. In response, AMRAAM customers could build up spare stocks, or pay for missile redesign and retrofit work that would solve the problem. Time will tell.

The AIM-120D is currently in developmental testing by both the US Air Force and US Navy at Eglin AFB, FL, and China Lake Naval Weapons Station, CA. Funding has also been disbursed to prepare the manufacturing line for full production, and initial production orders have been placed for more than 350 missiles. The first production set of AIM-120D missiles was scheduled to be delivered from December 2007 through January 2009, but “continuing delays in resolving developmental hardware issues and less-than-expected effectiveness in flight test execution” have stymied the program. The Delta model is now more than 3 years behind its 2008 target date for operational testing, due to technical failures that include missile lockup and aircraft integration problems. A January 2012 Pentagon report says that USAF still hasn’t set a date for the AIM-120D’s Operational Test Readiness Review (OTRR).

Recent America-only budget figures and totals include:

The AMRAAM family of missiles has also chalked up significant export success from foreign air forces and armies. Those sales are not part of its budgets, but their boost to sales and production volumes does lower costs for the missile’s American customers. Obviously, export orders vary widely by country and year. For many countries, a repeat AMRAAM buy recurs only many years later, if at all. In aggregate, however, foreign orders represent a very significant source of demand, which keeps production lines active, improves volume, and helps lower costs for the Pentagon.

AMRAAM: Contracts & Key Events

Unless otherwise specified, The Headquarters Medium Range Missile System Group at Eglin Air Force Base, FL issued the contract, and Raytheon Missile Systems in Tucson, AZ was the contract recipient.

Some definitions of terms are useful. AMRAAM All-Up Rounds (AURs) include the missile and its storage container. Air Vehicles Instrumented (AAVIs) are fully functional missiles with telemetry electronics instead of a warhead, and are used to support free flight testing. If the order says “Telemetry missiles” or “Warhead Compatible Telemetry Instrumented System (WCTIS)” configured AAVIs, on the other hand, the missile is meant to support live fire warhead testing. Captive Air Training Missiles (CATM) have seeker heads but no rocket motor or warhead; they are used in testing, training – and in combat exercises, where they can help keep score without any risk of real casualties.

Feb 3/12: Polish request. The US Defense Security Cooperation Agency announced [PDF] Poland’s official request for F-16 weapons, as well as a 5 year fleet support contract that includes associated equipment, parts, and training. The entire contract set could be worth up to $447 million, and includes up to 65 AIM-120C-7s. See “2012-02: Poland Requests F-16 Weapons, Support” for full coverage.

Jan 26/12: The Pentagon offers releases concerning its 2013 budget, including some news about program cuts, but the Comptroller doesn’t have the full budget documents up yet.

One encouraging piece of news for Raytheon is that one of the areas designated for protection or budget increases involves “Improved air­ to air missiles.” Despite its problems, the AIM-120D may be safe, for now. Pentagon release | “Defense Budget Priorities and Choices” [PDF]

Jan 26/12: A $17.4 million cost-plus-fixed-fee contract to provide test integration of software that’s intended to update and improve the US-only AIM-120D missile. Work will be performed in Tucson, AZ, and is is expected to be complete by Dec 31/13 (FA8675-09-C-0201, PO 0013).

Jan 17/12: DOT&E. The Pentagon releases the FY2011 Annual Report from its Office of the Director, Operational Test & Evaluation (DOT&E). The AMRAAM is included, specifically the ongoing problems with the AIM-120D. The report says that there is still no date set for its operational testing readiness review, which was supposed to happen in 2008. Why not?:

“The four key deficiencies include missile lockup, built-in test (BIT) failures, aircraft integration problems, and poor GPS satellite acquisition…. Raytheon has solved the BIT fail problem and has developed a pending solution to the GPS failure problem… The Air Force accomplished the final DT/OT(developmental testing/ operational testing) shot successfully in August 2011, but Raytheon has not yet resolved missile lockup or aircraft integration problems.”

Aug 31/11: FY 2011 order. A $569 million firm-fixed-price contract modification fr the FY 2011/ Lot 25 AMRAAM order, divided 77%/ 23% between US government sales and Foreign Military Sales.

USA & General: 234 AIM-120D All-Up-Round (AUR) missiles; 101 AIM-120D CATMs; 4 AIM-120D AAVIs; 8 integrated test vehicles; Air Force AIM 120D guidance section; 103 non-developmental item-airborne instrumentation units; test equipment; Personnel Reliability Program Phase IV.

Exports: 203 AIM-120C7 Foreign Military Sales AURs; warranty for 100 CATMs; warranty for 25 AIM-120C7 AURs (Bahrain); and Foreign Military Sale software and contractor logistics support (FA8675-11-C-0030).

June 29/11: Raytheon Missile Systems in Tucson, AZ receives a $10.5 million cost-plus-fixed-fee contract modification for the “Processor Replacement Program Foreign Military Sales software extension probability of weapon effectiveness.” The AAC/EBAC at Eglin Air Force Base, FL manages the contract (FA8675-09-C-0052, PO 0032).

June 16/11: FY12 zero-out? Flight International reports that the USA may cut Lot 26 AIM-120D production from the FY 2012 budget:

“Raytheon’s production line for the [AIM-120D] is more than 100 weapons behind schedule and operational testing has yet to begin….[so] the House appropriations committee’s defence panel wants to eliminate funding [for all 379 missiles] in the AIM-120D production account… in the fiscal year 2012 defence budget. Such a move, if approved by the Senate, would gut Raytheon’s production line for one year. Since its AIM-120D and export AIM-120C7 missiles are produced on the same line, the price of the latter could rise as order quantities are reduced. That could leave foreign buyers with a larger bill or fewer missiles next year.”

Asked about this, the USAF told DID that the AIM-120D is almost finished combined developmental and operational test phase. The next significant program milestone is the Operational Test Readiness Review (OTRR) in August 2011, to determine if the program is ready for dedicated operational testing.

As of the end of May 2011, the US military has taken delivery of 225 AIM-120Ds, vs. a contract delivery requirement of 361. That’s a backlog of 136 missiles, which are only paid for after they are delivered and signed for via DD250 documentation.

June 2/11: Australia request. The US DSCA announces [PDF] Australia’s formal request to buy up to 110 AIM-120C-7 AMRAAMs, 10 AIM-120C-7 AAVIs, 16 AIM-120C-7 CATMs, plus containers, weapon system support equipment, support and test equipment, site survey, transportation, repair and return, warranties, spare and repair parts, publications and technical data, maintenance, personnel training and training equipment, and other forms of support. The DSCA specifically notes that:

“The proposed sale will allow the Australian Defense Force to complete Australia’s F/A-18 program under their Project AIR 5349. Phase I allowed acquisition of F/A-18[F Super Hornet] Block II aircraft and Phase II is for the acquisition of weapons.”

The estimated cost is $202 million, with Raytheon Missile Systems in Tucson, AZ as the contractor. Actual costs will, of course, depend on the terms of any eventual contract. Australia already uses AMRAAMs on its older F/A-18A/B Hornets, but its F-111s did not. A larger AMRAAM-capable fleet means a need for a few more missiles. This proposed sale wouldn’t require any additional U.S. Government or contractor representatives in Australia.

Feb 17/11: AMRAAM component shortage? Focus Taiwan covers a ROCAF report on the May 2010 AMRAAM International Users’ Conference, in which the USAF’s 649th Armament Systems Squadron raised the issue of “Diminishing Manufacturing Sources and Material Shortages (DMSMS).” In English, that means people who manufacture some parts of the missile are either going out of business or ceasing production. The 649th ARSS said component shortages could begin as soon as 2012, and recommends that countries revise their AMRAAM support contracts to include maintenance and warranty clauses.

The longer term hope is to issue contracts for Raytheon to develop replacement components, as part of a joint logistics support plan extending to around 2030. Taiwan will join some other AMRAAM users in raising the issue of humidity, which makes it harder to store and maintain the missiles, and could accelerate their spares problem.

Feb 16/11: Swiss request. Switzerland approves its 2011 armament program. Biggest expense in the $450 million total? CHF 180 million ($192.8 million) to upgrade its stocks with new AIM-120C7 AMRAAM medium range air-air missiles, alongside the old AIM-120Bs which were bought in 1992 along with the air force’s 26 F/A-18C/D Hornet fighters.

The Defence Ministry no longer considers the AIM-120Bs to be up to date from an operational point of view, and is buying what it terms a “minimum number of guided missiles” to address that situation. The new AIM-120C-7s will be available alongside the older AIM-120Bs, though the latter are likely to be used more often in reserve and training roles. Swiss VBS | defpro. See also the Dec 21/10 entry, for the associated DSCA request.

Feb 14/11: FY 2012 budget. The Pentagon releases its FY 2012 budget request, even as it waits for the new 112th Congress to pass the FY 2011 budget that its predecessors failed to enact. The $579.5 million request would buy 379 missiles (218 USAF, 161 Navy), and provide $80.7 million in R&D for “product improvements such as fuzing, guidance, and kinematics.”

Jan 31/11: A $15 million contract for AMRAAM technical support: systems engineering, small software enhancements, test support, maintenance and modification of special test assets, support to the Navy hardware in the loop simulation, aircraft integration, and other technical engineering requirements. At this time, no money has been committed – task orders will be issued if needed (FA8675-11-D-0050).

Jan 6/11: SLAMRAAM’s end. The Pentagon announces a number of changes, instead to take $150 billion from administration and weapons programs, and shift them into higher priority weapon programs. One of the proposed cancellations is the Army’s SLAMRAAM program which, like all of these proposed cuts, must be agreed and legislated by the US Congress before it comes into effect.

On the one hand, given the ongoing decline of American tactical airpower, canceling SLAMRAAM in favor of keeping older, short-range Stinger and Avenger air defense missile systems is a definite risk. On the other hand, AMRAAM ground-based air defense systems are selling around the world in Finland, the Netherlands, Norway, et. al., and will remain available as a mature system that can be implemented quickly if the need is recognized. Pentagon release re: overall plan | Full Gates speech and Gates/Mullen Q&A transcript || Atlanta Journal Constitution | The Atlantic | the libertarian Cato Institute | The Hill | NY Times | Politico | Stars and Stripes || Agence France Presse | BBC | Reuters | UK’s Telegraph | China’s Xinhua.

Dec 21/10: Swiss request. The US DSCA announces [PDF] Switzerland’s official request to buy 150 AIM-120C-7 missiles, 6 AIM-120C-7 Telemetry Missiles, 24 AIM-120C-7 Captive Air Training Missiles, and 1 spare Missile Guidance Section, plus missile containers, weapon system support equipment, spare and repair parts, publications and technical documents, repair and return, depot maintenance, training and training equipment, and other forms of U.S. Government and contractor support. The estimated cost is $358 million.

Switzerland would use the missiles on its existing fleet of F/A-18C/D Hornet aircraft, which already carry earlier-model AIM-120B AMRAAMs. The prime contractor will, of course, be Raytheon Missile Systems Corporation in Tucson, AZ.

Dec 13/10: SLAMRAAM. Raytheon announces the 2nd test firing of an unguided SLAMRAAM from its new carrier platform, an FMTV truck. Details and purpose are the same as the 1st firing, discussed in the Sept 9/10 entry.

Sept 28/10: A $10.2 million contract modification which will extend the period of performance of the AMRAAM aircraft integration support effort contract through Sept 30/13. $1,815,268 has been committed (FA8675-08-C-0050; PO0016).

Sept 10/10: More radomes, please! A $25.8 million contract modification to restart the AMRAAM Radome “Phase II Pyroceram” project. At this time, the entire amount has been committed (FA3002-09-C-0003; AO0017).

A USAF representative explained that Raytheon had produced a large number of missile radomes before the line shut down, and it was thought that they would cover all future requirements. Since then, AMRAAM orders have surged ahead of those estimates, and stocks of radomes have been drawn very low. Production has to begin again, and this contract modification asks Raytheon to qualify the factory to build the same design radome as before. Production of new radomes will occur under the AMRAAM production contract, awarded separately, beginning in 2012.

Sept 9/10: SLAMRAAM. Raytheon announces that an unguided version of its ground-launched SLAMRAAM had a successful test firing from an FMTV truck at Eglin Air Force Base, FL. SLAMRAAM was initially mounted on Humvees, but it has become clear that those weren’t tough enough, so the Army will be using FMTV medium trucks instead. An FMTV derivative called the Caiman is even up-armored with a V-hull to survive mine blasts.

Missiles won’t launch exactly the same way from a different vehicle, however, because the launching itself creates different turbulence effects. That can have effects on nearby soldiers, and even on subsequent missiles if they’re ripple-fired. Understanding these “dynamic launch effects” was the goal of this test, and Raytheon adds that it will “reduce risk on future potential FMTV missile integration efforts, such as the AIM-9X.” Many other ground-launched air-to-air missile conversions use a dual setup of infrared and radar guided missiles, from Israel’s Spyder to France’s VL-MICA; adding AIM-9X to SLAMRAAM would give it the same versatility.

Aug 6/10: FY 2010 order. A $492.4 million contract which will provide AMRAAM missiles to American and international customers, and appears to be the FY 2010 buy. Note that AIM-120Ds and their accompanying training and test missiles are only sold to the US military. The order includes:

• 132 AIM-120D AURs;
• 12 AIM-120D Air Vehicles Instrumented (AAVI)
• 87 AIM-120D Captive Air Training Missiles (CATM)
• Warranty for 85 AIM-120D AURs for the USAF
• Warranty for 10 AAVIs for the USAF
• Warranty for 87 CATMs for the US Air Force and Navy
• AIM 120D guidance section and rear data link for the USAF
• 273 AIM-120C7 AURs for all Foreign Military Sales customers
• Warranty for 58 AIM-120C7 AURs for Foreign Military Sales customers Chile (13) and Jordan (45)
• 192 non-developmental item-airborne instrumentation units
• Test equipment; HIF/Spike life time buy; and contractor logistics support. This includes

Foreign Military Sales class customers within this order total 44% of its value, and include Morocco, Jordan, and Kuwait (q.v. Nov 15 entry); plus Canada, Chile, Finland, Singapore, South Korea, Turkey, and the United Kingdom. At this time, the entire amount has been committed (FA8675-10-C-0014).

April 28/10: Alternate rocket motor. Raytheon announces that it’s working with Norway’s NAMMO to begun qualifying an alternative rocket motor for the AIM-120 AMRAAM that would be interchangeable with current motors, and maintain the same performance as the current rocket engine. ATK is currently the primary rocket motor provider. Raytheon Missile Systems Air Warfare Systems VP Harry Schulte says that this is simple prudence for a key product, which has been bought by by 36 countries, with more than 1.8 million captive-carry hours and more than 2,900 live firings:

“A second source of rocket motors ensures Raytheon will meet its commitment to the U.S. and international warfighter by providing a continual supply of AMRAAMs.”

NAMMO has a long-standing relationship of its own with Raytheon, and has delivered more than 40,000 rocket motors for the AIM-9 Sidewinder short range air-air missile program. Raytheon release.

April 2/10: A $13.5 million contract which provides support for 4 months of AMRAAM system engineering and program management, due to delay of Lot 24 (FY 2010 production), which would otherwise have covered those funds. At this time the entire amount has been obligated by the 695ARSS/PK at Eglin Air Force Base, FL (FA8675-09-C-0052). When asked about the delay, the team at Eglin AFB has this to say:

“The Air Force has changed contracting policy, departing from the more streamlined, “review-discuss-concur” (sometimes know as “alpha contracting”) approach of recent years, in favor of a traditional contracting approach that requires considerably more cost information and independent auditing by the Defense Contract Audit Agency.

This policy change has extended the schedule for negotiating and awarding our contracts. The Lot 24 contract, planned to be awarded in March/April originally, is now forecast for a June/July award. The four-month “bridge” contract was awarded to protect the program’s critical engineering and management workforce… [but] does not increase the ultimate cost of the Lot 24 contract.”

April 1/10: SAR. The Pentagon releases its April 2010 Selected Acquisitions Report, covering major program changes up to December 2009. AMRAAM makes the list, for both good and bad reasons:

“Program costs increased $6,402.7 million (+43.0%) from $14,880.6 million to $21,283.3 million, due primarily to a quantity increase of 3,887 missiles from 13,953 to 17,840 missiles (+$3,775.7 million) and associated schedule, engineering, and estimating allocations* (+$457.7 million). Costs also increased due to software integration efforts (+504.4 million), the realignment of Navy and Air Force missile procurement during fiscal 2008 through fiscal 2024 (+$918.6 million), an increase in telemetry equipment to support training (+$422.9 million), and increases in tooling and test equipment, diminishing manufacturing sources requirements, and production/test support resulting from the extension of the production program from fiscal 2013 to fiscal 2024 (+$280.4 million).”

March 16/10: A $19.5 million contract to continue funding the AMRAAM system improvement program. At this time, the $2.8 million has been committed by the 696th ARSS at Eglin Air Force Base, FL (FA8675-10-C-0105).

March 9-11/10: AIM-120D testing. The new AIM-120D AMRAAM takes the first 2 Developmental Test/ Operational Test (DT/OT) live shots, at Eglin AFB, FL. Eglin officials tell DID that “Performance appeared to have been as predicted, but the [full] test data is still under review. The March 9 shot from a Navy F/A-18E Super Hornet resulted in a “lethal intercept” of the target, presumably due to proximity detonation. The March 11th shot from a USAF F-15C resulted in a direct hit.

The AIM-120D Engineering and Manufacturing Development (EMD) phase is complete [and] fielding will follow the completion of an extensive operational testing effort that is currently underway. The 3rd and final DT/OT shot is planned for early-May 2010, and all missiles for the testing programs have been delivered.

March 2/10: SLAMRAAM. Raytheon announces that the USA’s Surface Launched Advanced Medium Range Air-to-Air Missile (SLAMRAAM) program has received approval from the U.S. Army for long-lead purchases, not to exceed $18 million, leading to low rate initial production. The step toward LRIP status is an important milestone for that program.

Nov 15/09: Kuwait, Morocco & Jordan order. The US government executed separate letters of offer and acceptance with Kuwait, Morocco and Jordan enabling those US Middle East allies to purchase AIM-120C-7 Advanced Medium Range Air-to-Air Missiles (AMRAAMs).

In earlier requests to the US Congress, Kuwait had asked to buy 120 AIM-120C-7 AMRAAMs (see Sept 9/08 entry); Morocco had asked to buy 30 AIM-120C-5 AMRAAMs (C-5 is the previous production version of the C-7 – see July 9/08 entry); and Jordan had asked to buy 85 AIM-120C-7 AMRAAMs (see Aug 3/09 entry). The 3 countries will use the AMRAAMs in both air-to-air and air defense missions.

Nov 10/09: Chile request. The US Defense Security Cooperation Agency (DSCA) notified Congress of a request by Chile to buy 100 AIM-120C-7 Advanced Medium-Range Air-to-Air Missiles (AMRAAM) and associated parts, equipment and logistical support for approximately $145 million. DSCA requests are not contracts. If Congress does not block the request within 30 days, negotiations can begin for related contracts.

Chile intends to use these missiles to improve its capability to meet current and future threats of enemy air-to-air weapons. Chile is updating its military’s capability while increasing interoperability of weapon systems between itself, the US, and other allies.

Oct 29/09: Rocket boost? Alliant Techsystems (ATK) announces a nearly $10 million contract to improve rocket motor technologies for the Advanced Medium Range Air-to-Air Missile (AMRAAM), and well as future air-to-air missile systems. The scope of the work being performed under the Counter Air/ Future Naval Capabilities program is to develop technologies that will extend missile range, decrease time-to-target, improve end-game maneuverability, and improve the rocket motor’s response to insensitive munitions stimuli.

There are 4 main areas that ATK will concentrate on: high burn rate propellants for improved kinematics; improving case stiffness for reduced weight and agility; low erosion nozzles for improved performance; and multi-pulse propulsion for better end-game maneuverability. The Naval Air Warfare Center Weapons Division at China Lake, CA manages the contract. ATK expects to complete the work by June 2013.

Sept 16/09: Raytheon Co. in Tucson, AZ received a $22.2 million modification, which changes a previously awarded unfinalized contract (N68936-09-C-0097) to a cost-plus fixed-fee contract. Raytheon will design, build, and integrate an all-inclusive AMRAAM hardware-in-the-loop simulation system for military construction project P710, at the Naval Air Warfare Center Weapons Division in China Lake, CA. Work will be performed in Tucson, AZ (75%) and China Lake, CA (25%), and is expected to be complete in September 2011. The Naval Air Warfare Center Weapons Division in China Lake, CA will manage this contract.

The hardware-in-the-loop simulation facility includes hardware mounts, a flight table that can mount the core seeker assembly etc., and an anechoic chamber, in order to create simulated missile firings. It can test the missile’s radar seeker and ECCM (electronic counter-counter-measures) against simulated targets and threats, from a variety of imagined speeds and angles, and produce Monte Carlo simulations that explore hundreds of “firings” and create statistically useful results, without using up hundreds of missiles and expensive airframe time. It can also test the signals being sent to the rest of the missile, and make sure the software and mechanics are doing what they’re supposed to do.

The move from Point Mugu was prompted by changes mandated in the USA’s 2005 Base Realignment and Closure Act, and the new facility is expected to begin operations in September 2011 with AIM-120C7 capability. By September 2012, the facility is expected to be fully operational, with the ability to handle AIM-120C3-C7 models. See also NAVAIR release | Thanks to NAWCWD China Lake for clarification.

Aug 18/09: A $20.1 million cost-plus fixed-fee contract for the AMRAAM system improvement program. At this time $2.5 million has been committed. The 696th ARSS at Eglin Air Force Base, FL manages the contract (FA8675-09-C-0201).

Aug 3/09: Jordanian request. The DSCA announces [PDF] Jordan’s official request for 85 AIM-120C-7 missiles, 6 AIM-120C Captive Air Training Missiles, missile containers, spare and repair parts, support and test equipment, personnel training and training equipment, and support. The estimated cost is $131 million.

Implementation of this proposed sale will require bi-annual trips to Jordan involving 6 U.S. Government and 4 contractor representatives for program management reviews over a period of up to 5 years.

July 28/09: Bahrain request. The DSCA announces [PDF] Bahrain’s official request for 25 AIM-120C-7 AMRAAMs, missile containers, spare and repair parts, support and test equipment, personnel training and training equipment, and support. The estimated cost is $74 million.

Implementation of this proposed sale will require bi-annual trips to Bahrain involving 6 U.S. Government and 4 contractor representatives for program management reviews over a period of up to 5 years.

May 11/09: FY 2009 order. A $521.3 million firm-fixed-price contract to Raytheon Co. of Tucson, AZ for AMRAAM production (FA8675-09-C-0052). This appears to be the Lot 23 contract. At this time, the entire amount has been committed. The order includes:

• 105 containerized AIM-120D AMRAAM All-Up-Rounds;
• 72 AIM-120D captive air training missiles, and warranties;
• 11 instrumented AIM-120D “air vehicles,” for missile flight tests;
• 2 AIM-120D integrated test vehicles, which include guidance systems etc.;
• 106 “non-developmental items,” including airborne instrumentation units, test equipment, Phase 1A activities related to AMRAAM radomes, quad target detection device parts replacement work to address obsolescence, US Navy AIM 120D guidance section and development infrastructure support equipment, and upgrades; and
• 495 AIM-120C7s for Foreign Military Sales outside the USA.

Feb 22/09: UAE order. A Raytheon official confirms that the United Arab Emirates and the U.S. government have executed a letter of offer and acceptance for 224 AIM-120C7 missiles, to equip the UAE’s F-16E/F Block 60 fighter fleet.

Terms are not disclosed, but the number matches the DSCA sale request on Jan 3/08. That request involved a larger package that also included JDAM smart bombs and other weapons; it was worth up to $326 million. Reuters.

Feb 13/09: Newer chips. The USAF issued a $21.7 million modification to a cost plus fixed fee contract with performance incentives. Raytheon of Tucson, AZ will conduct the AMRAAM Processor Replacement Program, Phase II. At this time, the entire amount has been committed (FA8675-07-C-0055, P00022).

Some sources cite 30 MHz as the original speed for AMRAAM’s processor, in a world where computer chips that were cutting edge midway through the AMRAAM program’s lifespan are now museum pieces. Newer chips definitely offer the potential for performance improvements, but the most important benefit in this case may be the newer chips’ continued availability from manufacturers.

Jan 12/09: A $6.7 million modification to the AMRAAM Lot 22 Production contract (see May 28/08 entry). At this time, the entire amount has been committed (FA8675-08-C-0049, P00008).

Dec 10/08: Greece. Raytheon in Tucson, AZ receives a $7.9 million contract modification to administer AMRAAM-related industrial offset programs in Greece, as a modification to the Production Lot 21 contract. See also the July 1/08 entry, covering the addition of 130 AIM-120C7s to Greece as part of the Lot 21 production run.

At this time the entire amount has been obligated. 695 ARSS at Eglin Air Force Base, FL manages this contract (FA8675-07-C-0055, modification P00020).

Nov 25/08: The Air Force is paying $6 million to modify a firm fixed price contract with Raytheon Missile Systems in Tucson, AZ. This contract will upgrade 2 guided weapons test sets to AIM-120D Capability, including spares, and additional GPS. At this time, all the money has been committed (FA8675-07-C-0055, Modification P00019).

Oct 20/08: Turkey, Denmark & Finland. Rocket motors have shelf lives, too. The USAF issues a contract modification for $12.9 million. In exchange, Raytheon will supply 436 propulsion sections (baseline rocket motors) that will be installed in AIM-120B missiles. This effort supports foreign military sales to Turkey, Denmark, and Finland, and all funds have been committed (FA8675-08-C-0049, P00005).

Oct 15/08: The AIM-120C7 AMRAAM enters the U.S. Navy’s Weapon System User Program (WSUP) evaluations, fired from Super Hornets of the U.S. Navy’s VFA-143 squadron against a BQM-167A target drone. The Navy fighters also fired one of the new short-range AIM-9X Sidewinder missiles during the joint mission, which included USAF F-15Cs from Eglin Air Force Base’s 60th Fighter Squadron.

Raytheon’s release adds that “All missiles guided within lethal range of the target and were assessed as 100 percent successful.”

Sept 26/08: Turkish request. The US Defense Security Cooperation Agency announces [PDF] Turkey’s official request for 107 AIM-120C7 AMRAAM missiles, 2 missile guidance sections, missile containers, spare and repair parts, support and test equipment, and various support services. The estimated cost is $157 million.

Raytheon Electronic and Missile Systems of Tucson, AZ is the prime contractor. The Turkish Air Force uses AMRAAMs, and will have no difficulty absorbing these missiles into its armed forces. Implementation of this sale will not require the assignment of any additional U. S. Government or contractor personnel in country.

Sept 10/08: A cost plus fixed fee contract for $7.4 million, in return for work on AIM-120C3 through AIM-120C7 Counter Advanced Electronic Attack (EA) Risk Reduction and Concept Refinement (RR/CR). In English, this work will make it harder to jam most of the AMRAAM missiles in current service. At this time all funds have been committed by the 328th Armament Systems Group at Eglin AFB, FL (FA8675-08-C-0247).

Sept 9/08: UAE request. The US Defense Security Cooperation Agency (DSCA) announces [PDF] the United Arab Emirates’ official request to buy 288 AIM-120C7 Advanced Medium Range Air-to-Air Missiles (AMRAAM) missiles, 2 Air Vehicle-Instrumented (AAVI) missiles, 144 LAU-128 Launchers, Surface Launched Advanced Medium Range Air-to-Air Missile (SL-AMRAAM) software, missile warranty, KGV-68B COMSEC chips, training missiles, containers, support and test equipment, missiles components, spare/repair parts, publications, documentation, personnel training, training equipment, contractor technical and logistics personnel services, and other related support elements. The estimated cost is $445 million.

The principal contractor will be Raytheon Corporation in Waltham, MA. The purchaser intends to request industrial offsets, but specifics will be defined in negotiations between the UAE and Raytheon. Implementation of this proposed sale will require the assignment of 10 U.S. Government personnel and 15 Contractor representatives to the United Arab Emirates for a period of 3 months. Also, various personnel will be required to travel to the United Arab Emirates in one-week intervals, for surveys and other program requirements.

Sept 9/08: Kuwait request. The US DSCA announces [PDF] Kuwait’s official request for 120 AIM-120C7 Advanced Medium Range Air-to-Air Missiles (AMRAAM), 78 LAU-127-B/A launchers that fit on its fighter aircraft, 78 LAU-127-C/A Launchers, Captive Air Training Missiles, missile containers, spare and repair parts, support and test equipment, publications and technical documentation, personnel training and training equipment, U.S. Government (USG) and contractor engineering, technical and logistics support services, and other related elements of logistical and program support. The estimated cost is $178 million.

The prime contractor will be Raytheon Missile Systems Corporation in Tucson, AZ. Implementation of this proposed sale will require the assignment of up to 10 U.S. Government and contractor representatives for one-week intervals twice annually, to participate in training, and technical review.

July 11/08: Finland request. Finland requests 300 AIM-120C7 AMRAAM missiles, plus missile containers, spare and repair parts, support and test equipment, and other related support. The order could be worth up to $435 million. Finland already uses AMRAAM missiles on its F/A-18C/D Hornet fighters. DSCA announcement [PDF].

July 11/08: Singapore request. Singapore requests 128 AIM-120C7, 72 AIM-120C5, and 6 CATM missiles as part of a larger package worth up to $962 million.

July 9/08: Morocco request. Morocco requests 30 AIM-120C5 missiles as part of a larger package for its forthcoming F-16 C/Ds worth up to $155 million.

July 1/08: Greek order. An $87.6 million contract modification will provide 130 AIM-120C7s to Greece, and 6 Non-Developmental Item Airborne Instrumentation Units (NDI-AIUs) to Germany, as a modification to the AMRAAM Production Lot 21 contract. At this time all funds have been committed (FA8675-07-C-0055, P00011).

July 1/08: Processor replacement. A $13.2 million modification to a cost plus fixed fee contract for the Processor Replacement Program, Phase I. This project will replace the data processor module that’s common to both AMRAAM and the new Standard Missile 6 (SM-6) naval ship defense missile. The problem is that the AMRAAM Data Processor (ADP) and the Input-Output application specific integrated circuts (I/O ASIC) in the guidance section electronics aren’t manufactured any more. The electronics industry has much shorter life cycles than the military does, so the USAF is looking to replace these obsolete parts and do any redesign required.

This effort supports the US military, and foreign military sales to Greece and Taiwan. All funds have already been committed (FA8675-07-C-0055, P00012).

June 20/08: South Korea request. South Korea is requesting $200 million worth of additional air-air missiles and precision attack weapons for its F-15Ks: 125 AIM-120C7 AMRAAMs, 14 CATMs, and 2 dummy rounds; plus AGM-54G Mavericks, JDAMs, Paveway II/IIIs, and chaff. Read “South Korea Buying Weapons for its new F-15Ks.”

June 6/08: The USAF is modifying the firm-fixed-price Lot 21 production contract with Raytheon Missile Systems of Tucson, AZ by $44.8 million, in order to provide AIM-120C-7 Software Tapes 18A/20 to Greece and Taiwan. At this time, $17.4 million has been obligated (FA8675-07-C-0055, P00010).

May 28/08: FY 2008 order. A $412.2 million firm-fixed-price contract for Lot 22 AMRAAM production: 98 AIM-120D All-Up-Round Missiles, 11 AIM-120D Air Vehicles Instrumented (AAVIs), 8 AIM-120D Integrated Test Vehicles (ITVs), 78 AIM-120D Captive Air Training Missiles, a warranty for 68 AIM-120D AURs (USAF), a warranty for 11 AAVIs USAF, and a warranty for 78 CATMs (USAF/USN).

This order also includes 213 AIM-120C-7 foreign military sales AURs, 5 AIM-120C foreign military sales AAVIs, 269 Non-Developmental Item-Airborne Instrumentation Units, Spares (US/FMS), Test Equipment, Obsolescence to include Radome source replacement, Quad Target Detection Device parts replacements, and second source funding for the Common Air Launched Navigation System. At this time, all funds have been committed (FA8675-08-C-0049).

Deliveries are scheduled to begin in 2010 and continue through 2011. See also Raytheon release.

May 21/08: A modified cost plus contract for $9.8 million, required because the Phase IV AMRAAM SDD program to develop the AIM-120D is experiencing turbuence. “Continuing delays in resolving developmental hardware issues and less-than-expected effectiveness in flight test execution are the primary reasons for the SDD program being behind schedule.” DID asked for clarification, and the program office explained:

“The AMRAAM Phase IV SDD program has experienced unexpected delays during the transition from POD (proof of design) to POM (proof of manufacture) hardware design and integration for a variety of reasons. The hardware delays varied from late deliveries from subcontractors to minor redesigns of CCAs culminating in delayed production of POM units and a corresponding schedule slip. The program has also experienced less-than-expected effectiveness over the past year in flight test execution due to weather, aircraft and target maintenance delays(such as the recent extended F-15 Fleet grounding), and POM missile hardware availability for flight test. The POM hardware issues have been resolved and Raytheon Missile Systems is now successfully producing POM missiles for aircraft integration and test efforts.”

The current forecast date for the functional configuration audit has slipped about 10 months, from June 30/08 to April 30/09. That schedule extension increases the contract’s cost by about 10%, which is available with the existing program budget. Technical requirements have not changed, and at this time $6.8 million has been obligated (FA8675-04-C-0001, P00047).

Feb 12/08: SLAMRAAM. The Project on Government Oversight watchdog group issues a December 2007 report from the US DoD’s Office of the Inspector General, which was obtained via the Freedom of Information Act. It discusses, and faults, the US Army and Defense Contracting Management Agency’s handling of the $623 million SLAMRAAM ground-launched anti-aircraft missile program. DID includes more complete excerpts and summaries from the report, including program manager and DCMA responses, and adds more details regarding the SLAMRAAM system.

Jan 3/08: UAE request. The UAE requests 224 AIM-120C7 AMRAAMs, as part of a larger weapons package request for its F-16 E/F Block 60 Desert Falcon fighters that could be worth up to $326 million.

Sept 26/07: rocket motors. A contract modification for $7.8 million, which buys 309 replacement baseline rocket motors to be installed into AIM-120A, AIM-120B, and AIM-120C Air Vehicles. At this time all funds have been obligated. The 695th ARSS at Eglin Air Force Base, FL issued the contract (FA8675-07-C-0055, P0004).

Sept 25/07: Harris Corp. Government Communications Systems Division of Melbourne, Fla. received a modification to a firm fixed price contract for $9.3 million. This action provides 86 sets of Warhead Replacement Tactical Telemetry (WRTTM) applicable to AIM-120 AMRAAMs. Also, line items are included for Data, Interim Contractor Support (ICS) required to maintain and repair the WRTTM, ICS required to maintain and repair the WRTTM Test Sets and Support Equipment, ICS required to perform services in support of approved Engineering Change Proposals, ICS services and materials required for Program Management, ICS Services and Materials required to provide Quarterly, 5 days on-the-job training sessions for Tyndall AFB, FL, personnel for the operation and maintenance of the WRTTM Test Set and Support Equipment.

At this time all funds have been obligated. The 542nd Combat Sustainment Wing at Robins Air Force Base Ga. issued the contract (F09603-03-C-0006-P00018).

Aug 24/07: Israel request. The US DSCA announces [PDF format] Israel’s request for 200 AIM-120C-7 Advanced Medium Range Air-to-Air (AMRAAM) missiles, containers, components, spare/repair parts, publications, documentation, personnel training, training equipment, and other related support elements. The estimated cost is $171 million, and the principal contractor will be Raytheon Missile Systems Corporation, Tucson, AZ.

As noted above, AMRAAM competes to some extent with RAFAEL’s shorter-range Derby 4 missile. To date, however, Israel’s Cheyl Ha’avir has elected to purchase AMRAAMs instead for its fighters. See “Israel Requests $642M in Missiles, Fuel” for complete coverage.

June 19/07: SLAMRAAM Plus? Raytheon announces SLAMRAAM upgrades via options to add SL-AMRAAM-ER extended range variants (likely via a rocket booster), and a variant with AIM-9X infrared seekers to match the combination radar/infrared surface-to-air sets like Spyder, VL-MICA, et. al. being fielded by international rivals.

April 16/07: FY 2007 order. A $180.3 million firm fixed price contract for 96 AIM-120D AMRAAM Air Vehicles, 5 AIM-120D AMRAAM Air Vehicles Instrumented, 105 Airborne Instrumentation Units, and warranty for 25 USAF Captive Air Training Missiles. This action also funds the Manufacturing Excellence Model Initiative, Test Equipment, and 2 priced options. At this time, $175.6 million have been obligated. This work will be complete January 2010 (FA8675-07-C-0055).

April 9/07: SAR. The Pentagon releases its April 2007 Selected Acquisition Report, and AMRAAM is one of the systems covered. Overall program costs increased $1.6 bllion (+12.2%) from $13.2 billion to $14.8 billion:

”...due primarily to lower-than-expected Foreign Military Sales (FMS) projections (+$557.9 million) and an acquisition strategy pricing change (+$859.2 million). There were also increases related to a stretchout of the annual procurement buy profile (+$93.7 million), additional special tooling and test equipment (+$54.8 million), and an overrun in the AIM-120D (Phase 4) system development and demonstration contract (+$32.7 million).”

Feb 18/07: India Looking for 120km BVRAAMs. Pakistan’s AMRAAM purchase has created counterpressure. India already deploys the AA-12/R-77 “AMRAAMski,” and their partnership could be the final element needed to move the R-77M ramjet version into production. If so, it will be available on the international market soon after – and AMRAAM users will quickly come under a great deal of pressure. Fortunately, India seems bent on developing its own Astra MRAAM instead. See full DID coverage: “RAMRAAMski, via India?”

Jan 29/07: Rocket switch. U.S. Air Forces in Europe (USAFE) officials and 435th Munitions Squadron airmen recently moved to shift serviceable rocket motors from older AIM-120A AMRAAMs and put them in unserviceable AIM-120B and C models, creating viable AIM-120 B/C missiles. The systems involved are part of USAFE’s war reserve assets, but also serve as a forward-positioned stockpile for the U.S. Central Command and elsewhere. The in-house weapon overhaul of 63 missiles saved the Air Force more than $31 million and approximately 3 years of time, and was the largest field retrofit in the AMRAAM’s history.

Dec 6/06: Dutch NASAMS. Kongsberg announces a contract valued at NOK 345 million (about $60 million) with the Netherlands for deliveries to the Dutch Army under the Future Ground Based Air Defence (FGBAD NL) program. The program combines systems from EADS with the SLAMRAAM-based NASAMS surface-to-air system developed by Kongsberg.

Nov 17/06: Pakistan request. A $269.6 million firm-fixed-price contract modification, exercising an option to purchase 500 AIM-120C5 AMRAAM missiles and rehost on behalf of Pakistan (100%). Work will be complete April 2011 (FA8675-05-C-0070/P00028). This order is part of Pakistan’s $5.1 billion program to buy new F-16s and upgrade its existing fleet, and is the biggest AMRAAM export order to date. See also Raytheon’s January 15, 2007 release.

Nov 8/06: AIM-120D & AFSO-21. A USAF article discusses how the AIM-120D Production Program Manager was a bit skeptical when he was asked to be team leader on an Air Force Smart Operations for the 21st century rapid improvement event. By the time they were done, however, they had cut the acquisition-delivery time down from 11 months (48 weeks) to 4.5 months (20 weeks) using AFSO process improvement tools. Maj. Charles Seidel was impressed – and so were other weapons programs. Here’s what they did.

Nov 2/06: A $5.7 million firm-fixed-price contract modification for AIM-120D production transition, with all funds already obligated. This work will be complete March 2007 (FA8675-06-C-0003/P00005).

Oct 31/06: CLAWS. Raytheon announces that its AMRAAM-based Complementary Low Altitude Weapons System (CLAWS) air defense system finished 14 month Limited Technical Inspection in just 12 months and exceeded performance expectations, clearing the way for Marine Corps acceptance of the final 2 fire units. The tests took place at Raytheon Integrated Defense Systems’ Integrated Air Defense Center in Andover, MA.

CLAWS is a SLAMRAAM/HUMRAAM variant, and despite test success, the USMC decided that US air superiority made it an acceptable cancellation. Time will tell if that is wise.

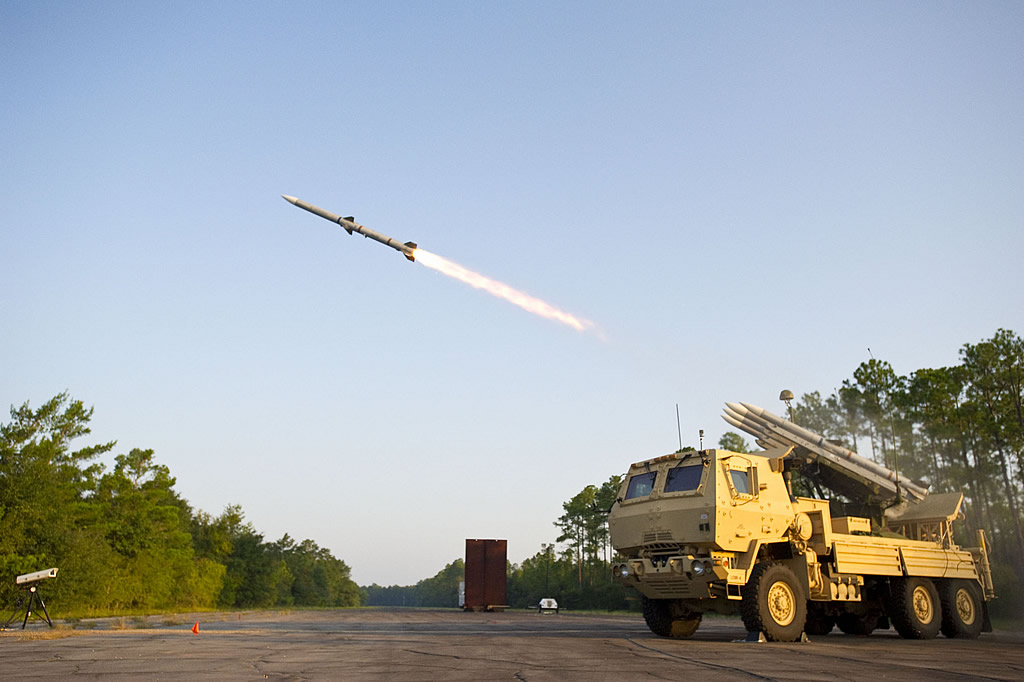

Oct 17/06: SLAMRAAM. Raytheon Fires Surface-Launched AMRAAM to Test New Command Destruct/Self Destruct Capability. The successful tests took place in Sweden, following successful SLAMRAAM tests in Norway.

Sept 29/06: Singapore & Saudi order. A $65.8 million firm-fixed-price contract modification, exercising an option to purchase 123 Advanced Medium Range Air-to-Air Missile (AMRAAMM) Air Vehicles (AAVs) Air Intercept Missile (AIM)-120C-5 missiles: 9 are for the USAF and 114 are foreign military sales to Singapore and Saudi Arabia (DefenseLINK did not break that out by country). The contract also includes 51 warranties and foreign military service software configuration management. Work will be complete November 2008 (FA8675-05-C-0070/P00026).

Sept 15/06: FY 2006 supplement. A $112.9 million firm-fixed-price contract modification to provide for 104 AIM-120C7 AMRAAM Air Vehicles, 112 Non-Developmental Item, Airborne Instrumentation Units (NDI-AIUs), proposal preparation, L3 Communications Pulse Code Modulation, Encoder Qualification Non-Recurring Expense, NDI-AIU Test Equipment Upgrade as well as 12 AIM-120D AMRAAM Air Vehicles Instrumented (AAVIs), 50 AIM-120D Captive Air Training Missiles (they have the seeker but no rocket motor), and an option for AIM-120D production transition. The AIM-120C7 is the most current AMRAAM missile, but the other elements of the contract certainly indicate that the transition to the AIM-120D is getting closer (FA8675-06-C-0003/P00003). An October 6, 2006 Raytheon release notes that this contract supplements the Lot 20A effort awarded in February 2006; the two Lot 20 contracts combined total $168 million. The first production set of AIM-120D missiles will be delivered from December 2007 through January 2009.

July 26/06: A $25.4 million cost-plus contract modification. This action provides for AMRAAM AIM-120D system demonstration development contract re-baseline. At this time, $7.4 million has been committed. Solicitations began April 2006, negotiations were complete July 2006, and work will be complete in June 2008. The Headquarters 328th Armament Systems Group, Eglin Air Force Base, FL issued the contract (FA8675-04-C-0001/P00028).

June 28/06: Pakistan request. The US DSCA announces Pakistan’s request for 500 AMRAAMs and 12 training missiles, as part of a $650 million weapons request within a $5.1 billion program to expand and refurbish its F-16 fleet.

May 9/06: a $21.8 million firm-fixed-price contract modification for advanced medium range air-to-air missile (AMRAAM) lead time away material, and systems engineering performance responsibility (SEPR). The lead time material will cover 12 operational test missiles (AIM-120D) and 40 initial operational capability missiles (AIM-120D and AIM-120C7). Work will be complete in October 2007 (FA8675-06-C-0003/P0002).

April 28/06: NCADE. Raytheon Company announces a $7 million contract from the Missile Defense Agency (MDA) for a risk reduction demonstration associated with the evolving Network Centric Airborne Defense Element (NCADE) program. NCADE is testing the idea that a modified AMRAAM might be able to shoot down ballistic missiles just after launch, if a fighter can get close to the launch area.

The 12-month Raytheon effort will focus on propulsion systems and seeker enhancements as part of the overall NCADE system capability. Work on this contract will be performed at Raytheon’s Missile Systems business in Tucson, Ariz. Aerojet will perform propulsion work at its Redmond, WA location.

April 21/06: Most people don’t think about the effect that all those nifty aircraft maneivers have on the weapons it’s carrying – but weapons developers have to, and so does the USAF. This article describes April 2006 tests of the AIM-120D missile in an F-22A Raptor weapons bay, in order to check the effect of noise and vibration on the missile. Previous tests with the AIM-120C7 had determined that vibration levels in certain frequencies were harmful to the missile’s electronics, and the AIM-120D has a different navigation system as well as a different arrangement of electronics cards. The test was used to validate Raytheon’s modeling and assumptions, and the results are fed back into ongoing development.

March 13/06: A $5.5 million firm fixed price contract option, exercised as a separate contract for a 11 month repair capability and a 11 month Service Life Prediction Program for non-warranted Advanced Medium Range Air-to-Air Missile (AMRAAM) Air Intercept Missile-120 components consisting of the AMRAAM Air Vehicle missiles, airborne instrumentation units, common field level memory reprogramming equipment, missile built-in test sets, containers, Navy captive air training missile, foreign military sales AMRAAM air vehicle instrumented missiles and repairable components of these items for the Air Force, Navy and 26 foreign military sales countries. This work will be complete in January 2007 (FA8675-06-C-0073).

Feb 17/06: A $35.4 million firm fixed price contract for production transition (1 Lot), test equipment/tooling (1 Lot), unique identification, non-recurring expense (1 Lot), and software trouble reports (USN) (1 Lot). Solicitations were complete in April 2005, negotiations were complete in February 2006, and work will be complete by March 2007 (FA8675-06-C-0003).

August 23/05: Singapore request. The US DSCA announces Singapore’s request for 200 AIM-120C Advanced Medium Range Air-to-Air Missiles (AMRAAM) and 6 CATM-120C AMRAAM Captive Air Training (CAT) Missiles, as part of a “provisional” $741 million weapons order. Singapore soon makes its accompanying choice official: the F-15SG Strike Eagle is its next-generation attack aircraft.

April 4/05: FY 2005 order. Raytheon Company announces a $200 million contract from the U.S. Air Force for continued production of 434 more AIM-120 Advanced Medium-Range Air-to-Air missiles (AMRAAM).

Footnotes

¹ It’s worth noting that “missile range” is an extremely variable number – obviously, a missile’s effective range for 2 aircraft closing head on is much greater than a situation where one aircraft is fleeing and the missile must catch up. Most missile ranges are posted for head-head engagements. See the “Air-Air Missile Non-Comparison Table” for a fuller explanation, with diagrams, and key figures for most international missiles.

² Jane’s Defence Weekly, July 11/07.

Additional Readings & Sources: Current Missiles

• RAND Pacific View 2008 briefing – Full document. Includes significant coverage of AMRAAM’s history of combat performance, and the missile/countermeasures race.

• The Boresight – The Future of Air Combat? Includes an account of AIM-7 Sparrow armed USAF F-15s facing off against Iraqi MiG-23 and MiG-25 aircraft during Operation Desert Storm in 1991.

• US Air Force Factsheets – AIM-120 AMRAAM

• Designation Systems – Raytheon (Hughes) AIM-120 AMRAAM

• Wright-Patterson AFB Museum – Hughes AIM-120 AMRAAM

• Air Power Analysis: AIM-120 AMRAAM

• Ground Based Air Defense – SLAMRAAM – Surface Launched Advanced Medium Range Air to Air Missile

• Army Technology – Surface-Launched AMRAAM (SLAMRAAM / CLAWS) Medium-Range Air Defence System, USA. Also includes Norway’s NASAMS, which is AMRAAM-based.

• Air Defense Artillery Magazine (July-August 2005) – PDF of Magazine Issue. See “SLAMRAAM is coming to a Theater Near You!,” pp. 10-11, which includes discussion of fielding plans and units.

• MBDA – Meteor Beyond Visual Range Air-to-Air Missile (BVRAAM)

• Flight International (Dec 6/11) – IN FOCUS: MBDA close to completing Meteor development work

• DID (May 27/05) – Meteor Missile Will Make Changes to Accommodate F-35. Describes the different fighter design philosophies that led to the longer-range Meteor project for European fighters, and the gradual convergence of missile compatibility and capabilities happening across the Atlantic.

• Answers.com – Vympel R-77. also known as the AA-12 Adder by NATO, and colloquially referred to as the “AMRAAMski”. Ramjet versions are reportedly under development, which would give the missile longer range and fully powered maneuvering to the very edge of its range. When coupled with aircraft like the widely-exported SU-30s and their powerful radars, the R-77 is seen as a significant potential threat to western air dominance.

• Aviation Week (aug 13/09) – R-77, R-73 Missile Upgrades Emerge

• MBDA – MICA Multi-mission Air-to-Air missile system

• Israeli Weapons – Derby Beyond Visual Range Air-to-Air Missile

• ACIG (Jan 9/03) – Kfir C.10, By Iain Norman. This in-depth analysis spends a fair bit of time on the Derby missile. Summary? Derby is not a true MRAAM, but it is a useful and capable option for many air forces, with coverage out to the ranges at which most air combats have actually taken place.

Additional Readings & Sources

• DID – T3: DARPA Looks for a Triple Target Terminator. Even as the USAF wants a similar next-generation Dual-Role Air Dominance Missile (DRADM) that also combines MRAAM and anti-radar capabilities.

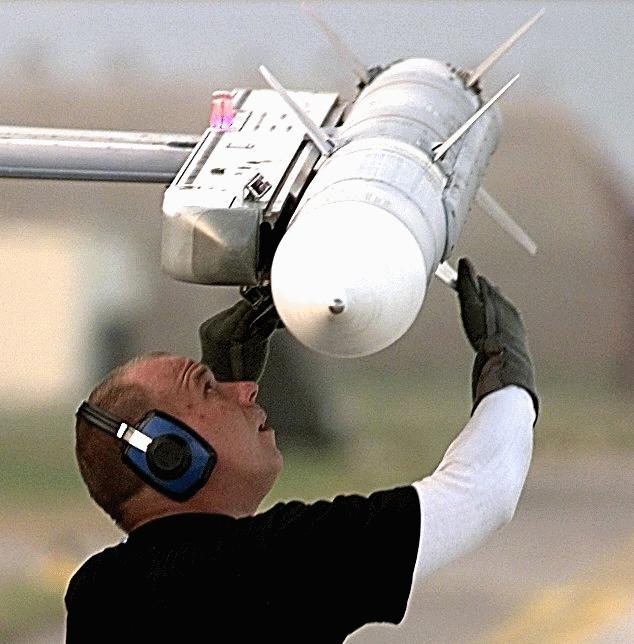

• DID (June 14/06) – $13.8M for AMRAAM & Sidewinder Launcher Components (updated). Explains the role of the LAU-127/128/129 launchers.

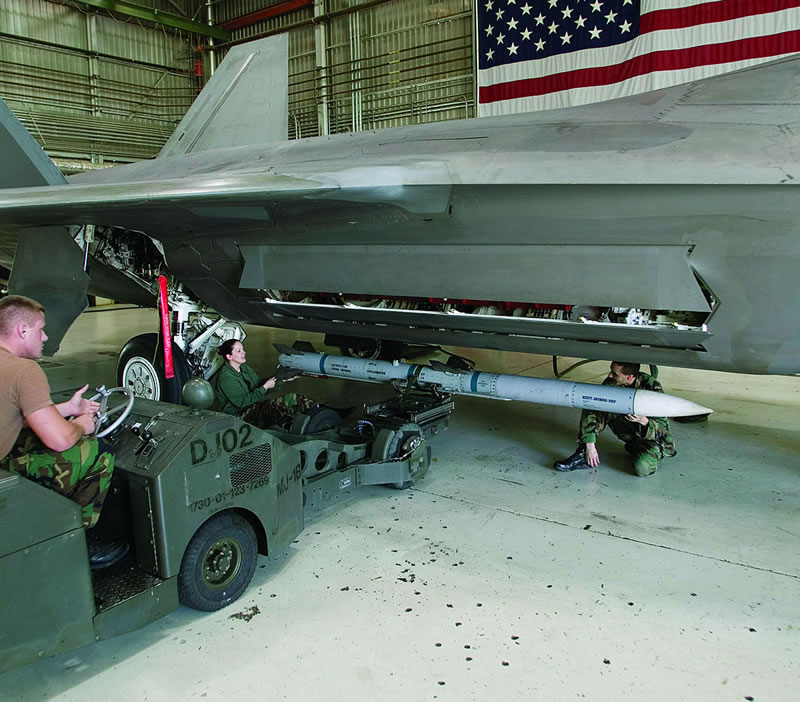

• DID (Feb 7/06) – EDO’s AVEL Missile Ejection System: Extending the Raptor’s Claws. Covers the F-22’s specially-designed AMRAAM launchers for its internal weapons bays, designed to operate at supersonic speeds.

• Forecast International (Jan 30/06) – MBDA and Raytheon Battle for Air-to-Air Missile Market Dominance. This recent analysis by Forecast International estimates that the market for air-to-air missiles will be worth $15.4 billion over the next 10 years, with Raytheon and MBDA sharing the lead.

• Raytheon (April 4/05) – Raytheon Awarded $200 Million Contract for Advanced Medium-Range Air-to-Air Missiles.

• Forecast International (Jan 30/04) – Air-to-Air Missile Market to Generate $12 Billion in Sales Through 2013. Key ‘graf? “There is a direct relationship between fighter aircraft sales and those of air-to-air missiles. If Europe cannot offer its missiles on American fighters, it could relegate its AAM companies to second place in this market for the next 10 years or more.” See also the release for their 2007 air-air missile market assessment.

• Aerospace Power Journal (Winter 1989) – The BEKAA Valley Air Battle, June 1982: Lessons Mislearned?

• Australian Aviation (September 1986) – Quo Vadis – AMRAAM? “Conceived as the ultimate standoff air to air missile the sophisticated and deadly Amraam has the distinction of being the subject of political bickering unseen since the sixties’ F-111 programme…”
