BAE’s L-ROD Cage Armor

For more on this and other stories, please consider purchasing a membership.
If you are already a subscriber, login to your account.
RG-31, before(click to view full) Russian-designed RPG shoulder-fired rockets are a widespread threat in many parts of the world, including the current conflicts in Afghanistan and Iraq. At present, the most common threats involve RPG-7 single warhead variants, which are also produced in quantity by China (to Iran for use abroad) and by Iran (direct […]
RG-31

RG-31, before
(click to view full)

Russian-designed RPG shoulder-fired rockets are a widespread threat in many parts of the world, including the current conflicts in Afghanistan and Iraq. At present, the most common threats involve RPG-7 single warhead variants, which are also produced in quantity by China (to Iran for use abroad) and by Iran (direct shipment to Iraq and Afghanistan).

There are 3 standard approaches for protecting vehicles against incoming RPGs: (1) Heavy or layered armor the warhead can’t penetrate; (2) Reactive armor tiles that explode outward when hit, deflecting, disabling, and/or disrupting the rocket and its blast; and (3) “Cage armor” or similar add-ons that can prevent detonation, or prevent the shaped charge jet from forming, at least some of the time.* The bad news is that providing enough steel cage armor can add a couple of tons to vehicle weight.

Enter BAE Systems’ LROD, developed under a fast-response Defense Advanced Research Projects Agency (DARPA) program to provide RPG protection for Hummers and MRAP mine-resistant vehicles. The project led BAE to ask if steel was really necessary – and the answer was: no.

Nearer My LROD to Thee

LAND RG-31 LROD Armor

RG-31 w. LROD
(click to view full)

BAE Systems’ L-ROD aluminum cage armor alternative provides similar protection, at less than half the weight of traditional steel. The process isn’t quite as simple as making an aluminum cage and slapping it on a vehicle, of course. BAE invested considerable time and effort to develop a design that minimizes the odds of a shaped charge jet forming if an RPG hits its armor. US Army officials then conducted more than 50 live-fire tests, in order to verify that its performance met their standards.

Once that challenge was solved, the next step involved leveraging aluminum’s lower weight in another way. LROD attaches to small vehicles using bolt-on methods, instead of requiring welding, or even full-scale cutting and chassis modification as is the case with some cage armors.

Additional L-ROD engineering work is required for each different vehicle type, in order to ensure a setup that delivers enough protection, and has the attachments and brackets located in the right places to take the load smoothly. That requires more up front investment by customers, but it delivers 2 key advantages. One is that bolt-on systems made of numerous similar modules are easier and cheaper to remove and repair if and when the vehicle takes a hit. That life cycle cost advantage is paired with an operational advantage, thanks to other patent-pending aspects of L-ROD that work to make in-field change-outs easier.

ORD RPG-7 Captured Iraq

RPG-7
(click to view full)

L-ROD has become standard equipment on the US Army’s MRAP Class III Buffalo explosive ordnance disposal vehicles, and more are on the way for the USMC’s Buffalos. Force Protection’s MRAP Class I and II Cougar MRAPs have received them, too, alongside the BAE/General Dynamics RG-31.

BAE is also working on L-ROD variants for the tracked BAE Hagglunds Bv206/ BvS10 family, BAE’s amphibious AAV7 Amtracs vehicles, BAE’s new RG-33s, and other MRAP-type vehicles as requested.

As Appendix B illustrates, however, L-ROD has emerging competitors – some of which use completely different approaches to low-tech RPG protection.

Updates and Contracts

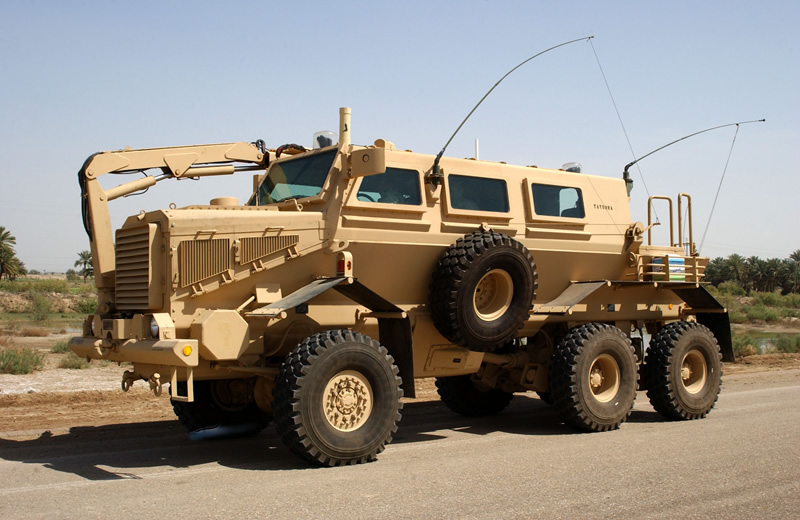

MRAP-III Buffalo

Buffalo
(click to view full)
Aug 17/12: BAE Systems Land & Armaments in York, PA, receives a $16.5 million firm-fixed-price contract for 352 Medium Mine Protected Vehicle L-ROD kits.

Work will be performed at their Austin, TX facility that was opened in February 2009 for L-ROD manufacturing. Deliveries are expected to be done by Aug 31/12. U.S. Army Contracting Command in Warren, MI manages the contract (W56HZV-08-D-0041).

March 14/11: BAE Systems Information and Electronic Systems Integration in Austin, TX receives a $19.2 million firm-fixed-price contract for 390 L-ROD aluminum bar armor kits and associated accessories, and associated field-service support for the RG-31 Mine Resistant Ambush Protected vehicle.

Work will be performed in Austin, TX with an estimated completion date of Sept 29/11. One bid was solicited with one bid received by U.S. Army Contracting Command in Warren, MI (W56HZV-10-C-0311).

Oct 13/10: BAE Systems Information and Electronic Systems Integration, Inc. in Austin, TX received a $7 million firm-fixed-price contract for 121 bar armor kits to equip Buffalo mine clearance vehicles. The kits are designed to help resist formed slugs fired from explosively formed penetrator land mines, as well as single-warhead rockets. BAE Systems has confirmed that these are LROD kits.

Work is to be performed in Austin, TX, with an estimated completion date of Oct 21/10. U.S. Army TACOM in Warren, MI manages the contract (W56HZV-07-C-0664).

Aug 9/10: BAE Systems Information and Electronic Systems Integration in Austin, TX receives an unfinalized $11 million firm-fixed-price contract for 390 RG-31 MRAP LROD aluminum bar armor kits, plus associated bracketry required for kit installation, and field service representative support outside the contiguous United States.

Work is to be performed in Austin, TX with an estimated completion date of Nov 26/10. One bid was solicted with one bid received by Us Army TACOM Contracting Center’s Detroit Arsenal in Warren, MI (W56HZV-09-C-0311).

Nov 16/09: BAE Systems announces a $42 million U.S. Army contract to produce L-ROD bar armor kits for the U.S. Army’s RG-31 and Cougar MRAP vehicles.

April 23/09: BAE Systems information and Electronic Systems Integration in Washington DC received a $ 16 million firm-fixed-price, unfinalized contract for LROD kits. The contract includes 2 “Bar Armor kit” prototypes: 1 each for the BAE/GD RG-31 and the Force Protection Cougar 4×4 CAT I Mine Resistant Ambush Protected Vehicles; and 325 production kits for the Cougar CAT II.

Work will be performed in Washington, DC with an estimated completion date of May 1/09. One bid was solicited and one bid received by the TACOM Contracting Center, Detroit Arsenal in Warren, MI activity (W56HZV-09-C-0311).

Feb 2/09: An email from BAE Systems says that they plan to make 1,000 L-ROD kits per year on a new automated production line, and that they are hiring people to work in the Austin, TX 33,000-square-foot manufacturing facility this year.

May 6/08: BAE Systems announces that it has received a $23.7 million contract from the Army’s Tank-Automotive and Armaments Command Life Cycle Management Command to equip 371 RG-31 vehicles and 174 MRAP-II vehicles (545 total) with its lightweight L-ROD bar-armor kits. The kits are designed to provide partial protection against anti-tank rockets, and are used widely on the US Army’s MRAP Class III Buffalo ordnance disposal vehicles.

Oct 8/07: BAE Systems announces an order for 215 LROD armor kits, under a not-to-exceed $14.5 million contract from the Army’s Tank-automotive Armaments Command (TACOM). BAE Systems will equip RG-31 and Cougar Class II vehicles with the aluminum cage armor, which is widely used on Army Buffalo explosive ordnance disposal vehicles. See release: “BAE Systems to Provide Bar Armor Kits for 215 U.S. Army Route Clearance Vehicles.”

July 17/07: BAE announces an initial contract that will see 14 LROD kits installed on installed on U.S. Army RG-31 and RG-31A1 mine-protected vehicles from BAE OMC & General Dynamics. The first 2 kits have been installed, and the US Army will procure 12 additional LROD kits for 2007 delivery to operational units in response to an Army Operational Need Statement. The Army has also expressed interest in procuring additional kits for the entire RG31 and RG31A1 fleet, which consists of about 425 vehicles delivered or on order. See release: “BAE Systems Delivers First Lightweight RPG Protection Kits for RG-31.”

Appendix A: How RPG-7s Work (*)

RPG-7 Terrorists

RPG-7

Though they are unguided, can be a bit tricky to aim, and have short range, the RPG-7’s disadvantages are masked in the close-quarters reality of urban combat and other common modern battle zones.

We know that many of our readers are engineers – hence a thank-you to DID reader Andres Kranjc. He points us to several sources that explain the detonation failure concept in more detail, from US Army TRADOC (SEC UNCLAS pdf) documents covering the RPG-7 [PDF format], which notes that stationary “RPG screens” first saw use in Vietnam. If the nose fuze passes through the screen’s gaps, the impact bends the warhead in a manner that shorts the detonation signal.

Netherlands-based TNO Defense, Security and Safety research lab’s “Constrictor” flexible net aims to provide similar protection, using a more lightweight alternative.

Those of you thinking that screens aren’t 100% certain to prevent warhead detonation, depending on the angle at which the piezo-electric crush fuze hits it, are correct. Andres also points us to Russian equipment manufacturers who tout cage protection against PG-9S grenades, which use much the same concept. Claimed protection is “0.5 probability [DID: 50%] in the areas covered by grill screens.” A protection level of 50% is still preferable to 0% protection, of course, and certain composite armors and other techniques can improve the odds further.

The bottom line? If there is a direct RPG hit and the shaped charge forms its molten jet, anyone in an RG-31 (or worse, a Hummer) is probably in for a very bad day. While the jet is far less stable in air than it is when going through a dense and homogeneous medium like steel, several feet of stand-off detonation distance would be needed to stop it from penetrating lightly armored vehicles. Absent a lot of armor, very clever composite sandwich designs, and/or a lucky deflection of the jet away from key vehicle parts, the vehicle’s occupants are in real trouble.

In general, one can expect cage armor or RPG screens to turn only some incoming rounds into duds, or otherwise prevent the explosive from forming a proper shaped-charge jet. If that works, even an RPG full of technically “detonated” explosives that splatter against the vehicle in glops and bang/burn, probably isn’t going to do much damage. Preventing a properly formed shaped charge jet involves a lot of specific science, math, and engineering; suffice to say that there are a number of approaches, and that this is a popular field for additional research.

The offense is also busy, of course. New RPG designs are introducing 2-stage tandem warheads, whose 1-2 punch makes many attempts at passive defense much more difficult. Meanwhile, cage armors will continue to be a popular defensive option against the most prevalent single-warhead RPG threats.

Appendix B: Additional Readings

* DID – Out of Whole Cloth: Tarian Rocket Protection. A different approach.

* Textron (Oct 13/09) – Textron Defense Systems’ RPG Countermeasure System Completes Phase I Testing. Another different approach. TRAPS is based on… airbags.

* DTI Ares (May 16/07) – RPG-7.net. Covers TNO’s “Constrictor” net.

* US Army TRADOC (1976) – Soviet RPG-7 Antitank Grenade Launcher (SEC UNCLAS) [pdf]
