Taiwan Has Big Plans for Advanced Jet Trainers & Upgrades to Anti-ship & Air-to-air Missiles

Hsiung Ying

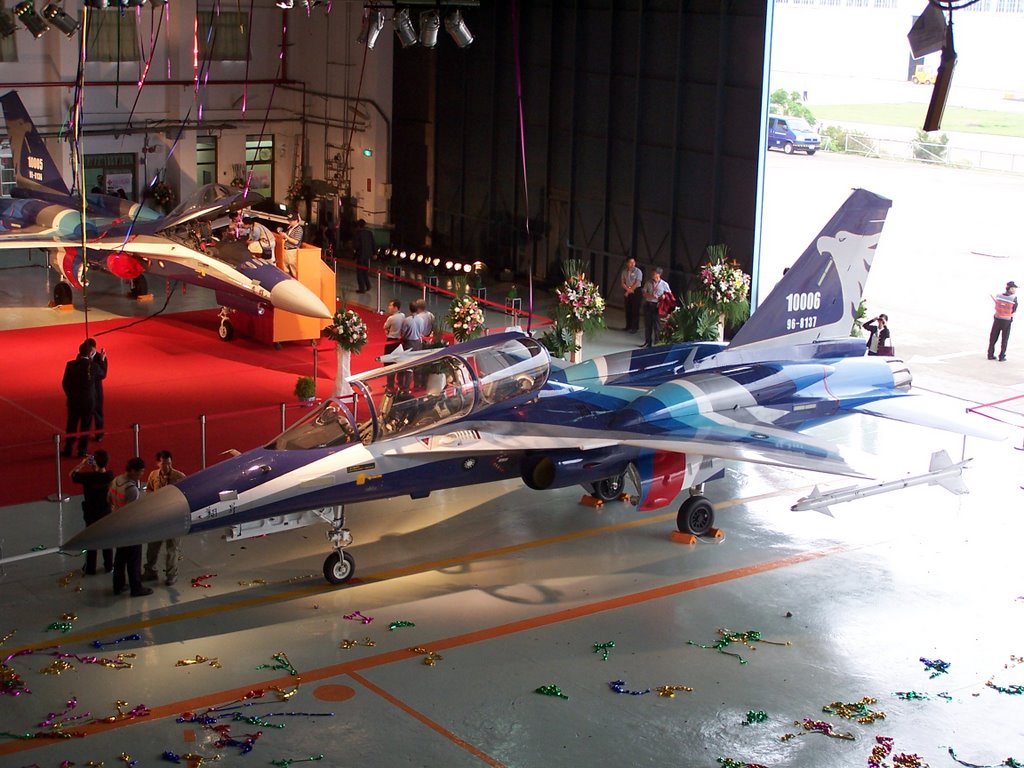

F-CK-1C/D unveiling
(click to view full)

February 8/17: Taiwan is moving ahead with a $2.19 billion plan to develop 66 advanced jet trainers external link with an aim to have them delivered by 2026. The move is the most significant jet development program for the island since the Indigenous Defence Fighter (IDFs) developed in the 1990s. Furthermore, Taipei is planning upgrades to their indigenous anti-ship and air-to-air missile arsenal external link, with a focus on increasing their range and payloads.



For more on this and other stories, please consider purchasing a membership.
If you are already a subscriber, login to your account.
F-CK-1D Hsiung Ying(click to view full) In 2006, the Taiwan’s Aerospace Industrial Development Corp (AIDC), based in Taichung, celebrated the upgrade of 2 of the ROCAF’s 130 F-CK-1A/B Ching-Kuo Indigenous Defense Fighters, “to improve their combat-capabilities against China.” Details that have emerged since show a set of F-CK-1C/D upgrades that turns the aircraft into fully multi-role fighters, moving them beyond their current limitations as air superiority aircraft and de facto lead-in fighter trainers for the ROCAF’s F-16s and Mirage 2000s. Upgrades of the ROCAF’s other 128 aircraft were set to follow, even as China continues to deploy advanced SU-30 family and J-10 4+ generation fighters on their side of the Taiwan Straits. The new “F-CK-1C/D Hsiung Ying” (Brave Hawk) would still be a generation behind China’s most advanced machines, and budgets had to be approved to accomplish even that much. That approval was stalled for years, but the upgrade project has finally finished Phase 1 – even as Taiwan’s request to buy 66 F-16C/D fighters remains stalled in Washington… F-CK-1: Taiwan’s Indigenous Defense Fighter As one can see, the Ching-Kuo IDF borrows design features from the F-16 Falcon, F/A-18 Hornet, and F-20 Tigershark, but its two ITEC TFE-1042-70 engines generate […]
F-CK-1D

F-CK-1D Hsiung Ying
(click to view full)

In 2006, the Taiwan’s Aerospace Industrial Development Corp (AIDC), based in Taichung, celebrated the upgrade of 2 of the ROCAF’s 130 F-CK-1A/B Ching-Kuo Indigenous Defense Fighters, “to improve their combat-capabilities against China.” Details that have emerged since show a set of F-CK-1C/D upgrades that turns the aircraft into fully multi-role fighters, moving them beyond their current limitations as air superiority aircraft and de facto lead-in fighter trainers for the ROCAF’s F-16s and Mirage 2000s.

Upgrades of the ROCAF’s other 128 aircraft were set to follow, even as China continues to deploy advanced SU-30 family and J-10 4+ generation fighters on their side of the Taiwan Straits. The new “F-CK-1C/D Hsiung Ying” (Brave Hawk) would still be a generation behind China’s most advanced machines, and budgets had to be approved to accomplish even that much. That approval was stalled for years, but the upgrade project has finally finished Phase 1 – even as Taiwan’s request to buy 66 F-16C/D fighters remains stalled in Washington…

F-CK-1: Taiwan’s Indigenous Defense Fighter

Taiwan map

As one can see, the Ching-Kuo IDF borrows design features from the F-16 Falcon, F/A-18 Hornet, and F-20 Tigershark, but its two ITEC TFE-1042-70 engines generate only 9,500 lbs/ 42kN thrust each, leaving it somewhat underpowered. These air superiority fighters made their first flight in 1989, and in January 2000, the type was declared fully operational in the RoC (Republic of China) Air Force. The last of a total of 130 aircraft entered service in July 2000, and state-run AIDC was commissioned to carry out the IDF’s mid-life upgrade project in cooperation with the military-run Chungshan Institute of Science and Technology.

A 2006 Taipei Times report begins to place this effort in context:

“AIDC is upgrading the IDFs because in most countries, warplanes are upgraded 10 years after they have entered service. Ten years ago the Air Force launched its second-generation fleet — 130 IDFs, 150 F-16 Block A/Bs and 60 Mirage 2000-5s — to boost defenses against China. The Air Force is seeking to introduce its third-generation fleet.”

F-CK-1C/D Hsiung Ying: Key Upgrades

cockpit

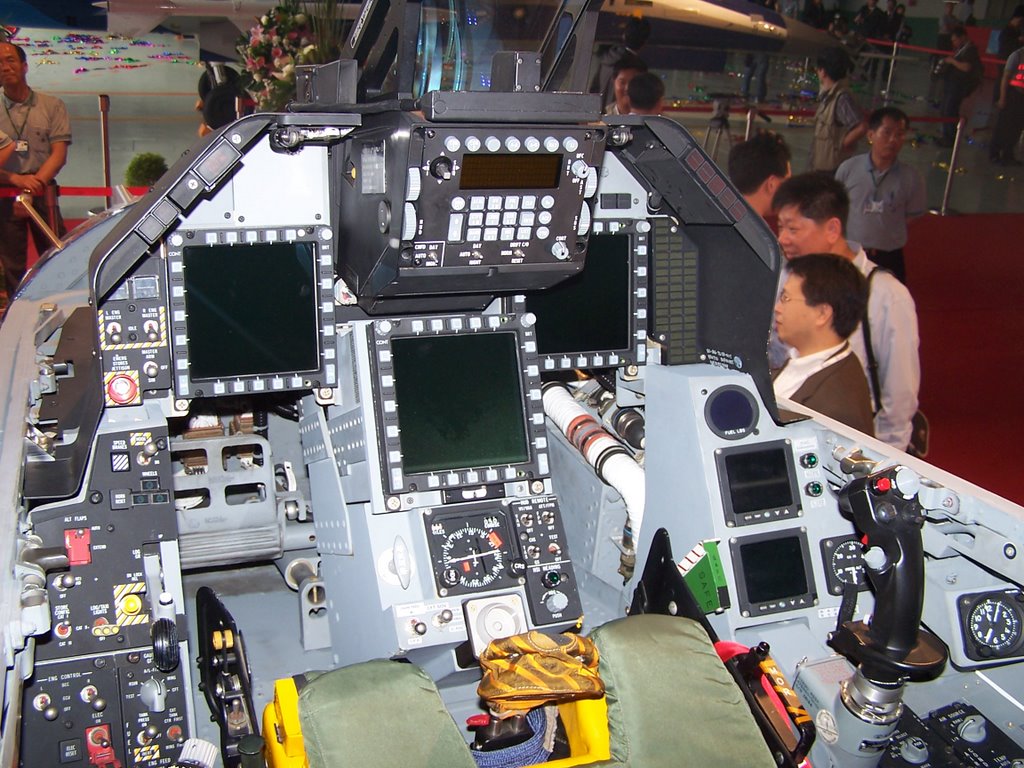

F-CK-1C/D cockpit
(click to view full)

AIDC’s improvement package is said to cover 3 main areas.

Avionics. Upgraded F-CK-1C/Ds reportedly features a digital cockpit with a tri-color multi-function heads-up display, a new 32-bit flight control computer system, improved IFF, better electronic counter-measures, and a switch-out of obsolete parts and electronic components for new designs.

Radar. The Golden Dragon CD-53 multi-mode pulse Doppler radar has look-down, shoot-down capability and can operate in air and sea search mode with a range over 80 nautical miles. This is respectable performance, but many modern radars offer significant improvements. The extent of the CD-53’s improvements will make a significant difference to the upgraded fighters’ combat capabilities when facing enemies like China’s SU-30MKKs, with their advanced Phazotron radars and long-range missiles. Reports seem to indicate that the main changes involve better multi-target tracking and jamming resistance.

Weapons. Upgraded fighters have reportedly been fitted with additional fuel tanks to extend range and patrol time, along with a reinforced structure to accommodate dorsal conformal fuel tanks. Added weapon pylons for Tienchien (Skysword) II air-to-air missiles raise capacity from 2 to 4. The integration of Sky Sword IIA ARM radar-killer missiles, and Wan Chien GPS-guided cruise missiles with a 200 km range, will make the aircraft a true multi-role fighter at last.

Beyond the Hsiung Ying

F-16A Block-20 Taiwan Firing AGM-65 Maverick

ROCAF F-16A fires Maverick
(click to view full)

Beyond the F-CK-1’s upgrade program, press reports have consistently said that Taiwan remains interested in augmenting its F-16 fleet by requesting an NT 150 billion (roughly $4 billion) order of 66 F-16 C/D Block 50/52+ aircraft from the USA. Unfortunately, the USA refused to approve the sale until Taiwan approves a critical weapons package that has been languishing for years, due to the opposition Kuomintang party’s persistent stalling on ever-shifting grounds. By the time that package cleared, the US State Department was no longer prepared to sell Taiwan F-16s, despite a mutual treaty which clearly states that defense needs shall be the only considerations governing weapon sales to Taiwan. Both sides eventually agreed on a program to upgrade existing F-16s, but that requires pulling planes out of service for many months.

That shift, and the coming retirement of Taiwan’s Mirage 200 fleet, makes the Hsiung Ying fleet upgrades more important than ever. Even if it’s not nearly enough to stop the balance of power sliding further away from Taiwan.

Contracts & Key Events

Hsiung Ying

F-CK-1C/D unveiling
(click to view full)

February 8/17: Taiwan is moving ahead with a $2.19 billion plan to develop 66 advanced jet trainers with an aim to have them delivered by 2026. The move is the most significant jet development program for the island since the Indigenous Defence Fighter (IDFs) developed in the 1990s. Furthermore, Taipei is planning upgrades to their indigenous anti-ship and air-to-air missile arsenal, with a focus on increasing their range and payloads.

February 7/17: Taiwan is to move forward with their advanced jet trainer program. Commander Gen. Shen Yi-ming of the Republic of China Air Force (ROCAF) is expected to sign a memorandum of understanding with the National Chung-Shan Institute of Science and Technology (NCSIST) later today. The $1 billion program will see the development of 66 trainers, with the first factory prototype expected for 2019.

August 16/16: It’s all systems go with Taiwan’s planned indigenous trainer development. The state-owned Aerospace Industrial Development Corp (AIDC) will be allocated $15 million next year to begin the process of developing a new aircraft based on their IDF and to have made its maiden flight by 2020. Taiwan’s new government has been extremely keen on bolstering the governments defense industry and military capabilities; so having the new trainer airborne before the next election will be a key goal.

Jan 16/14: Phase 1 complete. A ceremony at Tainan AFB in Southern Taiwan marks the completion of the initial Hsiang-Chang Project to upgrade the 443rd Tactical Fighter Wing’s 71 fighters. Another 56 fighters belonging to the 427th TFW in Taichung AB are slated for upgrades as Phase 2, which will run until 2017.

Articles also focuses on the Wan Chen cruise missile, whose serial production is expected to begin in 2015. They’re said to have a 200 km range, with some evidence of radar shaping to lower their visibility, and are reportedly tasked as delivery devices for cluster bombs against Chinese airstrips, radar installations, missile bases, etc. Sources: FOCUS Taiwan, “President gives thumbs-up to upgraded IDF jets” | The Diplomat, “Taiwan Unveils ‘Wan Chien’ Air-To-Ground Cruise Missile”.

Phase 1 complete

March 13/13: Beyond F-16s. Citing a newly released quadrennial defense review, Taiwan’s media say that the ROCAF wants to step beyond the upgraded Hsiung Yings, and develop a new fighter with features like lower radar cross-section, long-range, and aerial refueling receiver, as well as the ability to launch missiles against land targets or ships.

Taiwan’s military currently estimates that the fighter and small submarine development programs will cost about NT$500 billion (about $16.9 billion). Which means they’ll be lucky to keep the real total below $20 billion.

On the other hand, Liberty Times quotes KMT Legislator Lin Yu-fang statements that “For our national survival, we need to build up our defense capability under our own steam,” as a result of the USA’s increasing reluctance to assist Taiwan. Focus Taiwan [dead link] | Defense Update, “Taiwan to Seek Development of an Indigenous Stealth Fighter”.

Oct 1/12: F-16 upgrades. Lockheed Martin announces a contract valued at up to $1.85 billion to begin upgrading 145 ROCAF F-16A/B Block 20 fighters to the “F-16S” (not T?) configuration, including an Active Electronically Scanned Array (AESA) radar, embedded global positioning, electronic warfare upgrades, and other avionics improvements. Note Lockheed’s use of the word “begin”; the complete upgrade is very likely to cost more than $1.85 billion.

The F-16S upgrades will follow a detailed Sept 21/11 DSCA request, but they will not provide any new planes to Taiwan. The firm’s proposed F-16V model is similar, and was unveiled for general export/upgrade at Singapore’s airshow in February 2012.

Parallel F-16 upgrades

June 26/11: Deliveries. Taiwan is set to receive its first batch of upgraded F-CK-1C/D Hsiung Ying Indigenous Defensive Fighters at 443 Wing in central Taichung, on June 30/11. The 4-year, TWD 17 billion (about $587 million) project to upgrade 71 of the fighters began in 2009. Luo Shou-he, the ROCAF spokesman who announced the delivery, said that: “The rest of IDFs may or may not be upgraded, contingent upon our future budget.”

The retro-fitted jets add 2 more pylons, plus improved radars, mission computers, IFF, electronic counter-measures, and other electronics. They also switch out obsolete parts and electronic components for new designs. Several of the reports covering this milestone reiterate the Taiwanese government’s need for F-16C/Ds, which it continues to express in public. Focus Taiwan | Taiwan’s China Post | Taipei Times || AP via CNBC.

Ching-Kuos Formation

F-CK-1B Ching-Kuos
(click to view all 3)

Dec 8/09: Contract. AIDC’s CEO confirms the signing of a contract for the IDF Hsing Sheng upgrade project, covering 71 fighters. China Times [Taiwan publication, in Chinese].

Contract for 71

July 23/08: Lobbying. Flight International reports that the upgrade program has yet to be funded. Taiwan’s Aerospace Industrial Development Corporation (AIDC) is urging its government to fund the program, citing the USA’s ongoing refusal to approve a multi-billion arms package request that includes F-16C/D fighters.

State Department officials sympathetic to China are reportedly working to block the sale, and despite China’s rapid arms buildup, US Pacific Command, commander Adm Timothy Keating is quoted as saying that Washington’s decision makers have concluded that there is “no pressing, compelling need” for an arms sale to Taiwan.

March 27/07: Rollout. The first upgraded Ching-Kuo fighter makes its debut at Aerospace Industrial Development Corp.’s (AIDC) central Taiwan plant in Taichung County’s Shalu township, in central Taiwan. Reports vary. Some say the upgraded aircraft will be renamed the Chingkuo Imposing Eagle; others say it will be Hsiung Ying (Chinese: “Brave Hawk”). See release.

Rollout

Additional Readings

* DID – Taiwan’s (Un?)Stalled Force Modernization

* Milavia – AIDC Ching-Kuo F-CK-1 (IDF)

* Air Force Technology – Ching-Kuo (IDF) Indigenous Defence Fighter, Taiwan

* Wikipedia – AIDC F-CK-1 Ching-kuo

* AIDC – F-CK-1 C/D (2001 ~). In Chinese.

* AIDC – IDF (1981~1999). In Chinese.

News & Views

* Taipei Times (July 31/06) – Taiwan Quick Take: Fighter jets to be upgraded

* Reuters (July 27/06) – Taiwan seeks 66 F-16 fighters -U.S. official

* Defense Aerospace (July 14/06) – MND Mulls US$4b Budget for 66 Fighters

* (March 14/06) – Edwards flight testers exercise for war performing real-world test for Taiwan. The testing itself was performed to equip the Taiwan Air Force’s F-16s with the capability to carry a pylon that can deploy and tow decoys, while maintaining the aircraft’s full maneuverability. This pylon is a functional replacement for the standard weapons pylon, and provides the additional capability for the jet to carry 2 towed decoys that deploy from the pylon and trail behind the jet to draw missiles away from the aircraft. It’s possible that the F-CK-1C/D may also have this capability.
