Raytheon’s Lot-12 AIM-9X Missile Orders

October 4/22:Block II and Block II+ System Improvement Program The Navy awarded Raytheon a $225.7 million deal for AIM-9X Block II and Block II+ System Improvement Program Increment IV to include hardware and software development to the AIM-9X system as well as test and integration of developed hardware and capabilities. More specifically the hardware development will include updates to the AIM-9X sensor, electronics unit, and guidance unit and the software efforts include the development of the operational flight software versions 10.5 and 11.5 and integrated flight software. Additionally, this contract provides program protection, cyber security, information assurance and training for the AIM-9X system. Work will take place in Arizona, California, Pennsylvania and Utah. Estimated completion will be in September 2027.

For more on this and other stories, please consider purchasing a membership.
If you are already a subscriber, login to your account.
AIM-9X test launch, F-18C (click for close-up) Raytheon’s AIM-9X Block II would have made Top Gun a very short movie. It’s the USA’s most advanced short range air-air missile, capable of using its datalink, thrust vectoring maneuverability, and advanced imaging infrared seeker to hit targets behind the launching fighter. Unlike previous AIM-9 models, the AIM-9X can even be used against targets on the ground. The 2-way datalink is the most significant single Block II change, as it allows the missile to fly toward targets its seeker can’t yet see, using target position tracking from its fighter. The Block II also has improved seeker lock-on-after-launch vs. the original AIM-9X, a ‘lofting’ fly-out profile the boosts its range, and better all weather laser fusing against small targets. These changes will help keep it competitive against foreign missiles like MBDA UK’s AIM-132 ASRAAM, RAFAEL of Israel’s Python 5, the multinational German-led IRIS-T, and Russia’s R73/ AA-11 Archer. The end of September 2011 saw the first significant order from the US military for AIM-9X Block II missiles, shortly after successful live fire tests at China Lake, CA. The Lot 12 order followed very soon after, and is no longer an all-USA order. AIM-9X Versions […]

AIM 9X

AIM-9X test launch, F-18C
(click for close-up)

Raytheon’s AIM-9X Block II would have made Top Gun a very short movie. It’s the USA’s most advanced short range air-air missile, capable of using its datalink, thrust vectoring maneuverability, and advanced imaging infrared seeker to hit targets behind the launching fighter. Unlike previous AIM-9 models, the AIM-9X can even be used against targets on the ground. The 2-way datalink is the most significant single Block II change, as it allows the missile to fly toward targets its seeker can’t yet see, using target position tracking from its fighter. The Block II also has improved seeker lock-on-after-launch vs. the original AIM-9X, a ‘lofting’ fly-out profile the boosts its range, and better all weather laser fusing against small targets.

These changes will help keep it competitive against foreign missiles like MBDA UK’s AIM-132 ASRAAM, RAFAEL of Israel’s Python 5, the multinational German-led IRIS-T, and Russia’s R73/ AA-11 Archer. The end of September 2011 saw the first significant order from the US military for AIM-9X Block II missiles, shortly after successful live fire tests at China Lake, CA. The Lot 12 order followed very soon after, and is no longer an all-USA order.

AIM-9X Versions

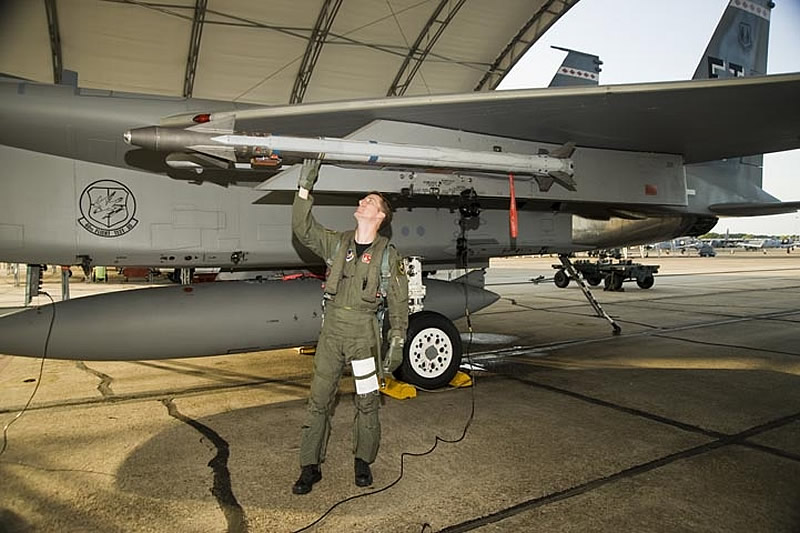

AIM-9X on F-15

AIM-9X on USAF F-15
(click to view full)

The currently fielded version of the missile is AIM-9X Block I, OFS 8.212, which includes limited lock-on-after-launch, full envelope off-boresight capability without a JHMCS helmet, and improved flare rejection performance. It uses the warhead, fuze, and rocket motor from the previous AIM-9M missile, but adds thrust-vectoring, a new imaging infrared seeker, a new digital processor, and a new autopilot. Because it’s all-digital, among other significant changes, aircraft that want to fire it need integration work. At present, F-15C/D Eagle, F-16C/D Falcon, and F/A-18 Hornet and Super Hornet family aircraft can carry the AIM-9X. Singapore has bought some for its F-15SG Strike Eagles, and South Korea’s F-15K Slam Eagles, and Saudi Arabia’s F-15SA Strike Eagles, will also be integrated in the near future.

Other American aircraft, and foreign aircraft that can fire Sidewinders, are limited to previous-generation AIM-9Ms. Note that this even includes the F-22A Raptor, until its Increment 3.2 upgrade program is implemented.

The AIM-9X-2 missile includes a new processor, a new ignition battery for the rocket motor, an electronic ignition safety/arm device, and the DSU-41/B Active Optical Target Detector (AOTD) fuze/datalink assembly. None of these things radically change performance by themselves, but OFS 8.3 is a software upgrade that adds trajectory management to improve range, datalink with the launching aircraft, improved lock-on-after-launch and target re-acquisition, and improved fuzing. The combination of AIM-9X-2 and OFS 8.3 makes an AIM-9X Block II missile.

Contracts & Key Events

F-15SG

F-15SG, armed
(click to view full)

October 4/22:Block II and Block II+ System Improvement Program The Navy awarded Raytheon a $225.7 million deal for AIM-9X Block II and Block II+ System Improvement Program Increment IV to include hardware and software development to the AIM-9X system as well as test and integration of developed hardware and capabilities. More specifically the hardware development will include updates to the AIM-9X sensor, electronics unit, and guidance unit and the software efforts include the development of the operational flight software versions 10.5 and 11.5 and integrated flight software. Additionally, this contract provides program protection, cyber security, information assurance and training for the AIM-9X system. Work will take place in Arizona, California, Pennsylvania and Utah. Estimated completion will be in September 2027.

July 26/22: SIP III Raytheon won a $17 million contract modification, which adds scope to procure 40 learn to build AIM-9X Systems Improvement Program (SIP) III configured guidance units (GUs), and associated nonrecurring tooling and test equipment to support build and checkout of the SIP III GUs in a production factory environment for the Navy and Air Force. Work will take place in Arizona, Utah, Vermont, Maryland, California, Germany, Michigan, Minnesota and Canada. Expected completion date is in July 2024.

May 30/22: Netherlands The United States has approved the sale of 138 Raytheon AIM-9X Block II/ II+ Sidewinder short-range air-to-air missiles to the Netherlands, announcing a potential $117 million sale on May 26. The US Department of State approval covers the Foreign Military Sale of 95 Block II and 43 Block II+ missiles, as well as one Block II+ tactical guidance unit, training missiles, related equipment, and support.

October 5/20: South Korea The US Department of State has approved a possible Foreign Military Sale to South Korea of AIM-9X Block II Tactical Sidewinder Missiles and other related equipment for an estimated cost of $158.1 million. Seoul has requested to buy 115 AIM-9X Block II Tactical Sidewinder missiles; 50 AIM-9X Block II Captive Air Training Missiles (CATM); 20 AIM-9X Block II Tactical Missile Guidance Units; and 20 AIM 9X Block II CATM Guidance Units, according to Defense Security Cooperation Agency’s (DSCA) statement Oct 1. Also included are containers, weapon system support, and other elements of programme support. Raytheon Corporation will the principal contractor for this programme. According to DSCA, there are no known offset agreements proposed in connection with this potential sale. The AIM-9X Sidewinder missile one of the most advanced infrared-tracking, short-range, air-to-air and surface-to-air missile in the world. It is configured for easy installation on a wide range of modern aircraft, including the F-15, F-16, F/A-18, E/A-18G, F-22 and F-35 fighters.

Aug 31/12: Software. Raytheon Missile Systems in Tucson, AZ receives a $13.6 million cost-plus-fixed-fee contract to update AIM-9X software from version 8.220 to 8.300 for USAF ($9.6M/ 71%) and US Navy ($3.9M/ 29%). $5.4 million will expire at the end of the current fiscal year.

As noted above, this software update creates the Block II missile. Work will be performed in Tucson, AZ, and is expected to be complete in December 2013. This contract was not competitively procured pursuant to FAR 6.302-1 by US Naval Air Systems Command in Patuxent River, MD (N00019-12-C-0111).

March 30/12: The Pentagon’s Selected Acquisitions Report ending Dec 31/11 includes the AIM-9X Block I. It’s being canceled, which creates a critical cost breach – but since the cause is program cancellation, it doesn’t matter. See Jan 17/12 entry for why it’s being cancelled.

“AIM-9X Block I – The Program Acquisition Unit Cost (PAUC) increased 49.3% to the current APB and 71.8% to the original APB as a result of an adjustment to the program of record quantities from 10,142 to 3,142 missiles. Based on direction from Navy and Air Force requirements offices, there are no future production contracts for Block I after Lot 10 deliveries are complete. The approval of Block II to enter Low Rate Initial Production ends new production for Block I missiles, and shifts new production to Block II missiles. Since the critical Nunn-McCurdy breach is due to cancellation of the Block I program, no certification determination by the USD AT&L is required pursuant to section 2433 of title 10, United States Code.”

Block I done

March 30/12: ROKAF & RSAF. A $97.1 million firm-fixed-price, fixed-price-incentive-firm target contract modification, buying Lot 12 low rate initial production (LRIP-2) equipment for South Korea and Saudi Arabia.

South Korea: $11.8 million, 12.15%. 19 AIM-9X Block II All Up Round tactical missiles in containers; 5 more containers. This is test-size lot.

Saudi Arabia: $85.3 million, 87.85%. 120 AIM-9X Block II All Up Round tactical missiles in containers; 42 more containers; 33 Block II captive air training missiles with no motor or warhead.

Work will be performed in Tucson, AZ. (41.40%); Andover, MA (10.12%); various locations in and outside the continental United States (6.56%); Valencia, CA (5.71%); Midland, Ontario, Canada (5.40%); Rocket Center, WVA (5.24%); Vancouver, WA (5.08%); Goleta, CA (2.99%); El Segundo, CA (2.81%); Cheshire, CT (2.30%); Simsbury, CT (1.60%); Cincinnati, Ohio (1.53%); Heilbronn, Germany (1.52%); El Cajon, CA (1.48%); San Jose, CA (1.45%); Anniston, AL (1.16%); San Diego, CA (0.87%); Chatsworth, CA (0.80%); Newbury Park, CA (0.74%); Orlando, Fla. (0.66%); and Montgomery, AL (0.58%). Work is expected to be completed in August 2014. US Naval Air Systems Command in Patuxent River, MD acts as the agent for its Foreign Military Sale clients (N00019-11-C-0001).

Singapore & Saudi Arabia

March 27/12: Exports. US NAVAIR discusses the AIM-9X’s “heightened interest in foreign military sales (FMS),” and what that means for the USA:

“The future is bright for the AIM-9X program as robust international sales lower the procurement costs for all purchasers, including the U.S. government,” said Rick Cooley deputy program manager for international programs for the Navy’s Air-to-Air Missile program office (PMA-259) here. In recent years, international sales for the joint Navy and Air Force AIM-9X Sidewinder program have comprised almost half [emphasis DID’s] of the program’s production. The Sidewinder is the most widely used air-to-air missile currently employed by more than 40 nations throughout the world.

In a surge of FMS agreements in late December 2011, Saudi Arabia and South Korea became the first international purchasers of the latest generation of the Sidewinder family, the infrared-guided AIM-9X-2 (Block II) missile system, for employment on their unique F-15 aircraft. “

Jan 31/12: Lot 12 additional. Raytheon Missile Systems in Tucson, AZ, receives a $39.6 million firm-fixed-price, fixed-price-incentive-firm target contract modification to AIM-9X Lot 12 low rate initial production. It adds “special test equipment and various spare components,” plus…

USAF ($35.5 million, 89.57%)

* 42 AIM-9X Block II all up round missiles (now 108)
* 42 Block II active optical target detectors (now 108)
* 51 CATM-9X Block II, with no motor or warhead (now 51)
* 27 containers (now 45)

US Navy ($4.1 million, 10.43%)

* 5 AIM-9X Block II all up round missiles (now 54)
* 5 Block II active optical target detectors (now 54)
* 2 containers (now 26)

Work will be performed in Tucson, AZ (41.42%); Andover, MA (10.12%); various locations in the continental United States (6.31%); Valencia, CA (5.71%); Ontario, Canada (5.40%); Rocket Center, WVA (5.24%); Vancouver, WA (5.08%); Goleta, CA (2.99%); El Segundo, CA (2.81%); Cheshire, CT (2.30%); Simsbury, CT (1.60%); Cincinnati, OH (1.53%); Heilbronn, Germany (1.52%); El Cajon, CA (1.48%); San Jose, CA (1.45%); Anniston, AL (1.16%); San Diego, CA (0.87%); Chatsworth, CA (0.80%); Newbury Park, CA (0.74%); Orlando, FL (0.66%); Montgomery, AL (0.58%); and various location outside the continental United States (0.23%), and is expected to be complete in January 2014. US Naval Air Systems Command in Patuxent River, MD manages the contract (N00019-11-C-0001).

Lot 12

Jan 17/12: Testing results. The Pentagon releases the FY 2011 Annual Report from its Office of the Director, Operational Test & Evaluation (DOT&E). The AIM-9X is included, and the report reveals that the Navy has asked to re-baseline the AIM-9X Block II as a new program entering a pre-Milestone C decision. When it does pass Milestone C, production of the Block I missile will end.

“This decision was primarily driven by a cost per unit increase due to the new DSU-41/B AOTD fuze/datalink assembly, reductions in Service funding, software costs, and schedule delays.”

DOT&E’s one serious concern:

“Recent captive-carry testing has revealed declining missile reliability due to communication problems in 9.303 software and host aircraft compatibility deficiencies. The program office plans to fix these deficiencies, along with software changes in OFS 9.308. Raytheon plans another software build prior to the [Operational Test Readiness Review]… in April 2012. The schedule of live fire events required before the OTRR is aggressive; the Navy and Air Force must execute five more live flight tests prior to the OTRR. Testing delays could result in a delayed OTRR.”

Dec 29/11: Lot 12 Main. Raytheon Missile Systems in Tucson, AZ, receives a $68.9 million firm-fixed-price, fixed-price-incentive-firm target contract modification, for Lot 12 low rate initial production of AIM-9X Sidewinder short range missiles. Customers and ordered items include…

USAF ($36 million, 52.3%)

* 66 AIM-9X Block II all up round missiles
* 66 Block II active optical target detectors
* 18 containers

US Navy ($32.8 million, 47.7%)

* 49 AIM-9X Block II all up round missiles
* 49 Block II active optical target detectors
* 29 CATM-9X Block II, with no motor or warhead
* 24 containers

Work will be performed in Tucson, AZ (41.42%); Andover, MA (10.12%); various locations in the continental United States (6.31%); Valencia, CA (5.71%); Ontario, Canada (5.40%); Rocket Center, WVA (5.24%); Vancouver, WA (5.08%); Goleta, CA (2.99%); El Segundo, CA (2.81%); Cheshire, CT (2.30%); Simsbury, CT (1.60%); Cincinnati, OH (1.53%); Heilbronn, Germany (1.52%); El Cajon, CA (1.48%); San Jose, CA (1.45%); Anniston, AL (1.16%); San Diego, CA (0.87%); Chatsworth, CA (0.80%); Newbury Park, CA (0.74%); Orlando, FL (0.66%); Montgomery, AL (0.58%); and various location outside the continental United States (0.23%), and is expected to be complete in January 2014. US Naval Air Systems Command in Patuxent River, MD manages the contract (N00019-11-C-0001).

Lot 12
