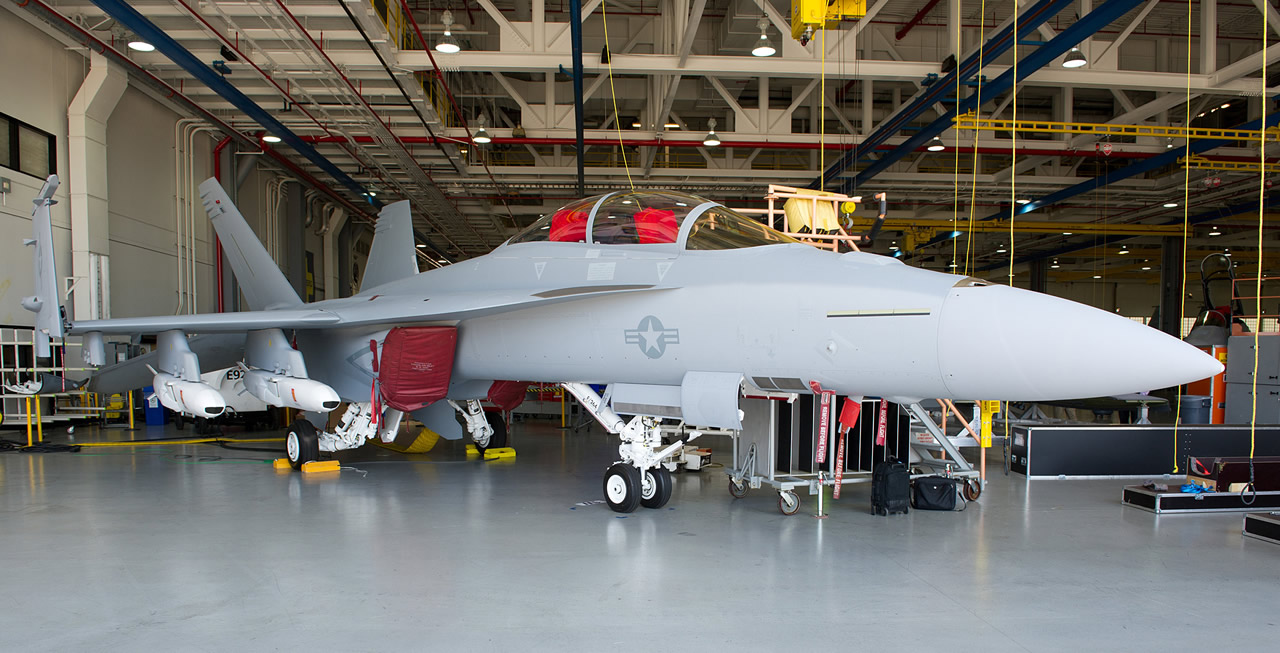

F/A-18F tries JSMs on

F/A-18F w. JSMs
(click to view full)

December 18/18: Mod Raytheon is receiving additional funding for work on the Naval Strike Missile. The firm-fixed-price modification (N00024-18-C-5432) is priced at $32.6 million and provides for manufacture and delivery of the over-the-horizon weapon system. Included in the deal are encanistered missiles (EM) loaded into launching mechanisms (LM); and a single fire control suite (FCS). The stealth-enhanced Naval Strike Missile aims to be a generation beyond the US GM-84 Harpoon. Once the NSM locks on, it strikes ships or land targets with a 265 lb. titanium warhead and programmable fuse. Work will be performed a national and international locations including Kongsberg, Norway; Tucson, Arizona; Schrobenhausen, Germany; Raufoss, Norway; McKinney, Texas and Louisville, Kentucky. The NSMs are expected to be completed by December 2020.

For more on this and other stories, please consider purchasing a membership.
If you are already a subscriber, login to your account.
NSM test launch (click to view full) Kongsberg’s stealthy new Naval Strike Missile (Nytt SjomalsMissil), which continues its development and testing program, has already shown potential in the crowded market for long-range ship attack and shore defense weapons. NSM’s Joint Strike Missile counterpart may have even more potential, as a longer-range air-launched naval and land […]

NSM test

NSM test launch
(click to view full)

Kongsberg’s stealthy new Naval Strike Missile (Nytt SjomalsMissil), which continues its development and testing program, has already shown potential in the crowded market for long-range ship attack and shore defense weapons. NSM’s Joint Strike Missile counterpart may have even more potential, as a longer-range air-launched naval and land strike complement to Kongsberg’s popular Penguin short-range anti-ship missile.

The market for anti-ship missiles is a crowded one, and the distinction between anti-ship and precision land strike weapons is blurring fast. Aside from a bevy of Russian subsonic and supersonic offerings, naval buyers can choose Boeing’s GM-84 Harpoon, China’s YJ-82/C-802 Saccade, MBDA’s Exocet, Otomat, or Marte; IAI of Israel’s Gabriel/ANAM, Saab’s RBS15, and more. Despite an ongoing shift toward supersonic missiles, Kongsberg chose not to go that route. So, how do they expect to be competitive in a crowded market? The F-35 Lightning II may hold the key.

The F-35 is a fairly stealthy plane, so long as it is mostly unarmed. About five sixths of its armament capacity must be carried externally, effectively rendering it visible to radars. That has been one of the several good arguments as to why stealth development may have been a low bang-for-buck result. Australia announced that it was going in with Kongsberg to adapt the Joint Strike Missile to fit inside the F-35’s armament bay. We helpfully suggest that the new variant be named the JSM-III Sardine.

Kongsberg’s Naval Strike Missile/ Joint Strike Missile

NSM: Ship-Launched

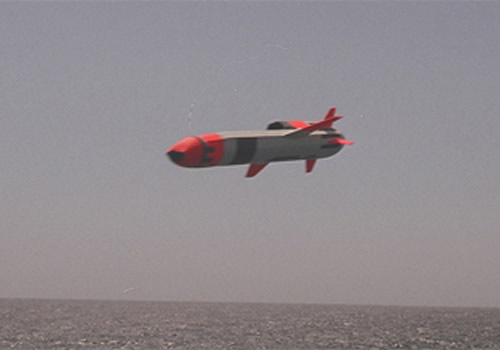

NSM test

NSM test flight
(click to view full)

The 3.96m/ 13′, 407 kg/ 900 pound, stealth-enhanced Naval Strike Missile aim to be a generation beyond the USA’s GM-84 Harpoon. A rocket booster and Microturbo TRI-40 turbojet power it to a 185+ km/ 100+ nautical mile operational range, which is at the low end of the standards for its class. Global Positioning System/Inertial Navigation System (GPS/INS) guidance flies these missiles toward their target, aided by terrain profile matching (TERPROM). Internal programming is designed to create an unpredictable, maneuvering flight path that makes targeting difficult. During the final attack phase, an imaging infrared (IIR) seeker with automatic target recognizer (ATR) is used to refine final approach targeting, which can reportedly include specific features on a ship. Once NSM locks on, it strikes ships or land targets with a 120 kg/ 265 pound titanium warhead and programmable fuze.

Note the lack of a traditional radar seeker head, which is part of the missile’s signature reduction. IIR makes the NSM completely passive, offering no warning from shipboard ESM systems that detect radar emissions. At the same time, its stealthy shape offers little warning from its target’s active radar sweeps. This is a missile optimized at all levels for stealth, making supersonic speed less necessary.

An in-flight data link makes the missile reprogrammable in flight, if its target disappears or a higher priority threat appears.

In order to speed deployment, Kongsberg and the Norwegian government overlapped the NSM’s development phase and its production phase, referred to as the transition phase. That phase was tied to Norway’s commitments to Navantia, with a view to scheduling the NSM’s phase-in on the 4th vessel of Norway’s new Nansen Class AEGIS frigates. That integration is now complete.

To date, NSM has also been chosen for Norway’s Skjold Class air cushion catamaran FACs, and Poland’s land-based coastal defense batteries will use it to defend the country’s narrow Baltic Sea approaches.

JSM: Air-Launched

[youtube:v=BsGEvAHWagU]

NSM/ JSM
click for video

The air-launched “Joint Strike Missile (JSM)” variant is designed to be carried and launched internally from the F-35 Lightning II fighter’s 2 internal bays (1 missile per bay), or carried on external hardpoints by any aircraft type that has integrated the weapon with its systems. This isn’t quite the same missile, though it shares many characteristics. Kongsberg changed the wings, moved the intake to the missile’s sides, and added other modifications as the missile progresses through the development phase. Size shrinks slightly to 3.7m/ 12’2″, and weight drops to 307 kg/ 677 pounds. Because it’s air launched at speed, range expands to over 280 km/ 175 miles/ 150 nautical miles, with greater range enhancements if launched from higher altitudes.

Development has completed Phase 2, including detail design and integration/ fit checks for the F-18, F/A-18 Super Hornet, and F-35A. Phase 3 will complete development and leave Kongsberg ready for production.

The JSM’s tighter profile has also made it the base for 2 future designs: a submarine-launched variant that can fit inside a 533mm torpedo tube capsule, and a vertically-launched variant that adds a booster for use from strike-length naval vertical launch cells like the Mk.41.

RNoAF F-16 w. Penguin anti-ship missiles

RNoAF F-16
(click to view full)

Norway is aiming for a 2020 JSM in-service date, but that may have to involve its F-16s, which have lost their Penguin missiles. F-35A Integration will begin with the fighter’s Block 4 software fit, in 2022 – 2024.

That lateness and forced switch might be a blessing in disguise. JSM would be very appealing to many F-16 customers, and Kongsberg is also hedging its bets by testing JSM on the F/A-18E/F Super Hornet. Forced inclusion of other platforms from the outset could create early customer pickup beyond home sales, including existing F-35 prospects like Australia. Later, the prospect of stealth-enhancing internal carriage, plus out of the gate integration with the F-35 Lightning II, give the JSM a strong entry hook for committed F-35 customers like Norway, Australia, The Netherlands, et. al.

Confirmed current export targets include Australia (NSM & JSM), Canada (NSM & JSM), Italy (JSM), and the USA (NSM). A live-fire showcase at the RIMPAC 2014 exercise has the potential to add more Pacific prospects.

Kongsberg’s JSM development partner Lockheed Martin has a similar air-launched land-attack product in its AGM-158 JASSM, which has been developed into the air or sea-launched LRASM. Other competitors exist, from MBDA’s Storm Shadow/Scalp, to Taurus’ KEPD, to Boeing’s anti-ship and land attack SLAM-ER. The JSM’s biggest differentiator would be internal F-35 carriage, which is unique. The other differentiator is its F-35 integration schedule. At present, JSM’s only ranged strike competitor in F-35 Block 4 will be Raytheon’s unpowered AGM-154C-1 JSOW glide bomb.
