Expendable Wave: Raytheon’s MALD & MALD-J Decoys

Apr 24, 2013 15:00 UTC by Defense Industry Daily staff

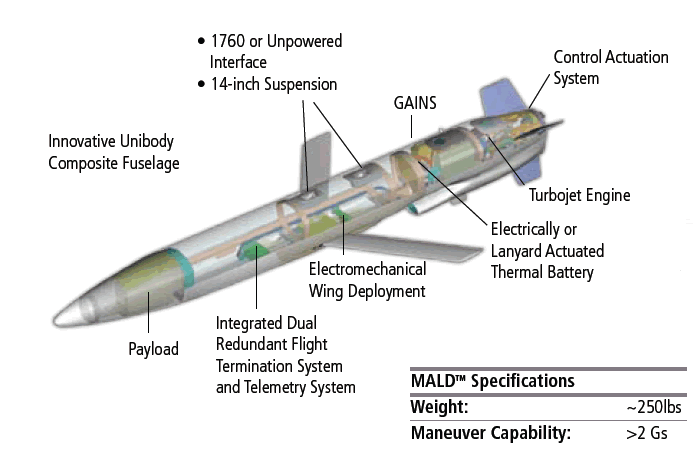

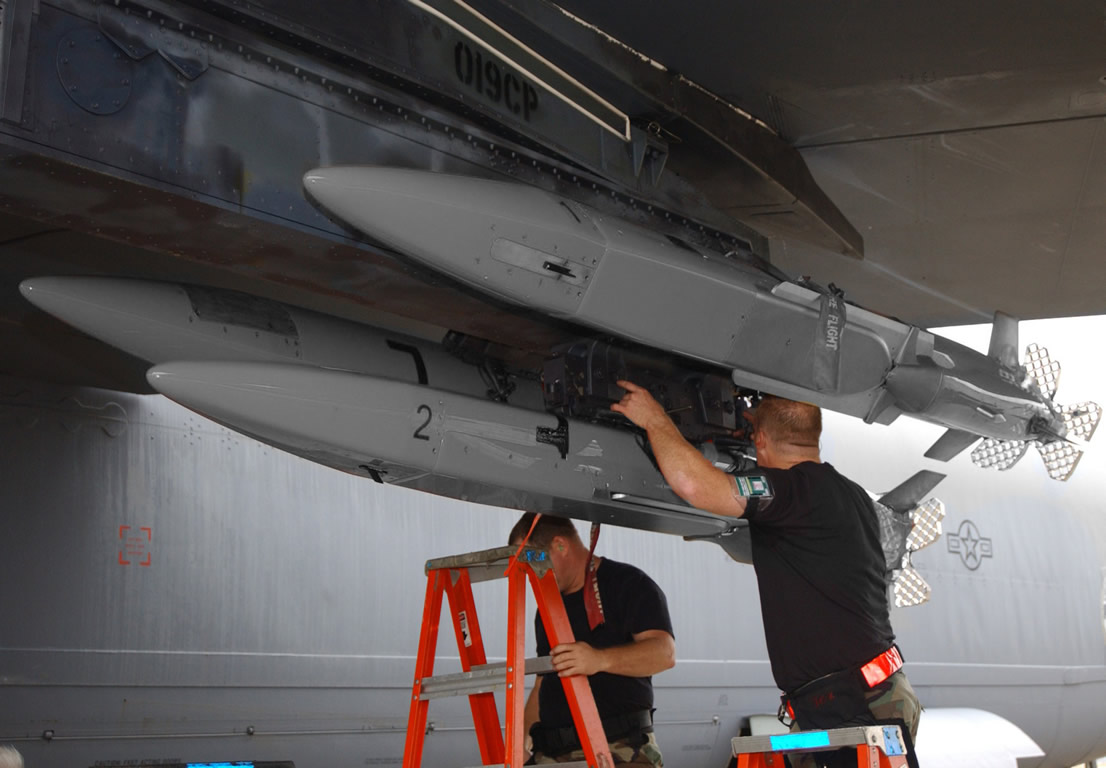

ADM-160B/C MALD
(click to view full)

The Bosnian “Nighthawk Down” incident in 1999 showed that even old air defense systems could still be dangerous, and that smart tactics and selective use could keep those systems alive against heavy opposition. The challenge is finding them and targeting them. Against truly advanced air defense systems like the Russian SA-20 family, however, the challenge is survival. Advanced stealth technologies, advanced anti-radar weapons, and successful electronic jamming are required.

Air-launched decoys can help, and they are not a new concept by any means. The same technologies used in cruise missiles allow construction of “stealth in reverse” decoys that fly long distances along pre-planned flight patterns, carrying radar reflectors that simulate the radar return of fighter or bomber aircraft. Enemy air defenses see them as incoming aircraft, and must decide to either shut down and hide, or activate and reveal their position. If American aircraft are flying behind a wave a decoys, either option can be dangerous. The USAF’s ADM-160B/C Miniature Air-Launched Decoy (MALD) program began as a DARPA effort in 1996, but made it all the way into production, and is branching out into new fields. The US Navy already has their own ITALD, but they liked one of the new MALD variants enough to add it, too.

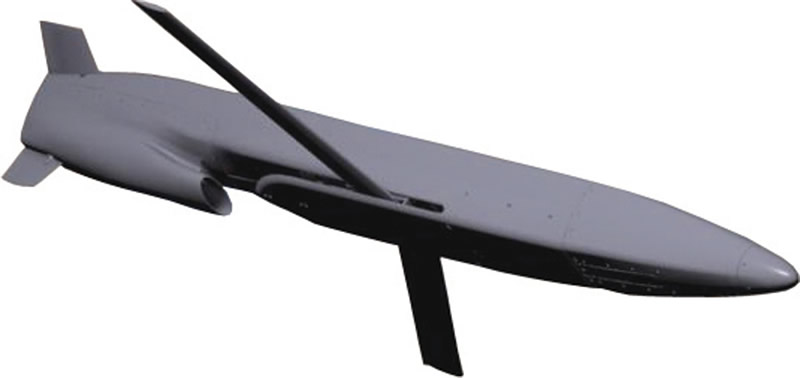

MALD and Its Variants

The ADM-160 MALD has changed over its program lifespan. One big change was required range, which forced the Air Force to move to a larger decoy. That led to a re-compete, which Raytheon won from original incumbent Northrop Grumman in 2003. Prices have increased along with size and capability, from $30,000 to $120,000 per decoy. This is still much cheaper than a $70 million fighter. Range for the 300 pound system has also increased, to 500 nm/ 575 miles, with the ability to loiter over targets.

With its range and loiter time, however, MALD lends itself to other uses as well. One obvious use is to install radar jamming equipment, instead of radar reflecting equipment. The resulting system can add realism to an incoming wave of MALD decoys while neutralizing specific threats, or fly ahead on a mission of its own. The “MALD-J” electronics will have to be powerful enough to be useful, however, while remaining small and light enough to fit into a 300 pound MALD decoy.

The USAF wants to explore those possibilities. Raytheon received a 2-year, $80 million US Air Force contract for MALD-J Phase II risk reduction in April 2008, and MALD-J received its milestone C go-ahead into low-rate production in November 2011. Deliveries are expected to begin by the end of 2012, for use with USAF F-16 fighters and B-52H bombers. Meanwhile, the US Navy is working to integrate it with its regular F/A-18E/F Super Hornet fighter fleet, as a lower-end alternative to its dedicated EA-18G Growler electronic attack variant.

A 3rd MALD type, MALD-V, would have an open payload space for insertion of modular surveillance gear, jammers, or other equipment. This may provide the go-forward architecture, and give customers the option of turning MALD into a UAV, or even a hunter-killer that homes in and destroys radars targeting it. But after several test failures in 2010/11, the Air Force clipped the program’s wings by terminating research on MALD-J Increment II.

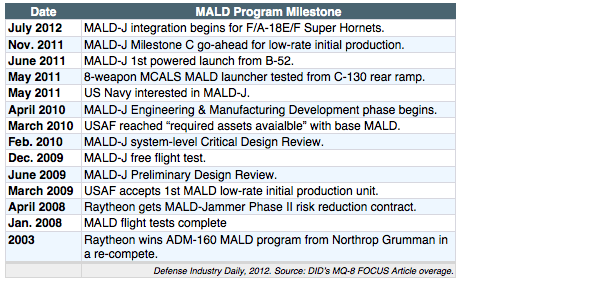

Program Timeline

Industrial Team

More than 125 Raytheon employees design and build the MALD and MALD-J in Tucson, AZ; Goleta, CA; and El Segundo, CA. Key suppliers for MALD and MALD-J components include:

• AUSCO in Port Washington, NY

• Advanced Industries Inc. in Wichita, KS

• CEI in Sacramento, CA

• Celestica in Austin, TX

• Eagle Pitcher in Joplin, MO

• EDO in Bohemia, NY

• Enser in Pinellas Park, FL

• Engineered Fabrics Corp in Rockmart, GA

• GDOTS in Redmond, WA

• Hamilton-Sundstrand in Rockford, IL & San Diego, CA

• LaBarge in Joplin, MO

• Moog in East Aurora, NY

• Tecom in Westlake Village, CA

• Teledyne Microelectronics in Los Angeles, CA

• Daico, in Carson, CA

• Cobham in San Diego, CA

Boeing and Lockheed Martin don’t supply components, but will be responsible for making MALDs work with their respective aircraft.

Contracts and Key Events

April 22/13: Lot 6. Raytheon announces a USAF contract for 202 more MALD-Js and containers as Production Lot 6. It was exercised as an option under the Lot 5 contract “in Raytheon’s first quarter of 2013.”

As usual, contract work will take place primarily at Raytheon’s missile facility in Tucson, AZ.

Feb 13/13: MQ-9 UAVs. Raytheon Company and General Atomics Aeronautical Systems, Inc. announce that they’re working to integrate MALD/MALD-J decoys onto the MQ-9 Reaper UAV. The Reaper’s slow speed means that their use would need to be timed well, and arranged carefully so as not to make their mission obvious. On the other hand, the Israelis have made an art form out of using drones to provoke air defense batteries into using their radars and communications, then harvesting the emissions for analysis and counter-programming. Enough of that in advance, and the MALDs could just look like the big killer strike wave has finally arrived.

Ground Verification Test phase completed in November 2012 at GA-ASI’s Gray Butte Flight Operations Facility in Palmdale, CaA. Integration is estimated to conclude in 2013.

Aug 22/12: Lot 5. An $81.8M firm-fixed price contract for MALD-Js, to be completed by the end of August 2014 (FA8682-12-C-0002). FBO.gov.

July 6/12: F/A-18E/Fs. Raytheon announces that the MALD-J has begun integration with the US Navy’s F/A-18E/F Super Hornets. That will involve additional tests and demonstrations once work is finished to tie it into the Super Hornet’s systems. Meanwhile, the USAF is preparing to begin receiving MALD-Js for its F-16s and B-52s by the end of 2012.

The dedicated EA-18G Growler electronic warfare fighter doesn’t have the space to add MALD-J without badly compromising its range, but MALD-Js on regular Super Hornet fighters will give the US Navy additional electronic attack options beyond the Growler fleet.

June 01/12: In an interview with Defense Daily, Raytheon business development manager Jeffrey White defends the program, thanks to several successful tests so far this year. He adds that swarms of up to 192 decoys can be loaded on and dumped from heavy transport aircraft (see May 25/11 entry on MCALS). Now wouldn’t that be nice for business?

March 29/12: GAO report. The Government Accountability Office reviews the Pentagon’s airborne electronic attack efforts and starts its section on underperforming programs with MALD/MALD-J:

“In September 2011, citing ‘successful completion of MALD-J engineering and manufacturing development activities,’ the Air Force exercised a priced option to upgrade 240 of its planned MALD units to the MALD-J configuration, subsequently decreasing MALD quantities to 596. Because all future production lots are now planned as jammer-configured decoys (MALD-J), the 596 total represents the full MALD procurement – without the program having ever met the criteria necessary to proceed into full rate production. Since the MALD and MALD-J designs are identical – except for the addition of a jammer module to MALD-J–the absence of a proven manufacturing process for MALD introduces schedule risk to production of MALD-J.”

Dec 2011: DOTE. The Director, Operational Test & Evaluation, issues its annual report [PDF]. They are satisfied by the Air Force’s follow-up on past recommendations, but urge a change to the Concept of Operations (CONOPS) so that some decoys can be used during exercises and training. The current CONOPS doesn’t allow that because of the device’s expendable nature. Overall, 2011 has been a better year for MALD-J than MALD.

May 27/11: LRIP-4. Raytheon Missile Co. in Tucson, AZ receives an $83 million firm-fixed-price contract modification MALD low rate initial production lot four (LRIP-4) production.

Work will be performed at Tucson, AZ. The contract is managed by the AAC/EBJM at Eglin Air Force Base, FL (FA8682-10-C-0007, PO 0019).

May 27/11: MALD-J/V. A Flight International article discusses US Navy interest in the USAF’s jammer variant, and notes work on a MALD-V, with an empty payload compartment that could carry surveillance payloads as well.

May 25/11: MALD MCALS. Raytheon announces that they’ve launched two MALD “instrumented shapes” from the ramp of a C-130 Hercules, using the new Raytheon-funded MALD Cargo Air Launched System (MCALS).

Adding cargo aircraft as a platform would offer many more options for using MALDs, on both combat strike and cargo missions. MCALS’ steel, birdcage-like framework body sits on a standard cargo pallet, and can hold as many as 8 MALDs. At a pre-determined altitude, the ramp is opened and MCALS rapidly ejects the MALDs, which then initiate a standard wing deployment and engine ignition sequence.

March 10/11: The US Navy posts FedBizOpps notice #N0016411RWS47: “14–SOLE SOURCE – MINIATURE AIR LAUNCHED DECOY (MALD)/ MINIATURE AIR LAUNCHED DECOY JAMMER (MALDJ)”:

“Naval Surface Warfare Center (NSWC) Crane Division plans to enter into a five year Basic Ordering Agreement (BOA) with Raytheon Missile Systems… ceiling in the amount of [$12.5 million, for] engineering, logistics and test support, test item hardware and software, support equipment hardware and software, prototypes, test and assembly fixtures, repair services, training, and various data products. This requirement will be negotiated on a sole source basis in accordance with the statutory authority 10 U.S.C. 2304(c)(1) as implemented by FAR 6.302-1… The POC for information regarding this requirement is Mr. Matthew Lucas, Code CXMN, telephone (812)854-8864, fax 812-854-3805 or send a request via e-mail (E-MAIL preferred)…”

May 5/10: LRIP-3. Raytheon Co. in Tucson, AZ receives a $96.7 million MALD low rate initial production contract for a 24-month effort, to include operational test and evaluation. Raytheon expects to supply 300 MALD decoys. At this time, $89.8 million has been committed by the 692th ARSS/PK at Eglin Air Force Base, FL (FA8682-10-C-0007).

Raytheon has already delivered more than 100 units to the USAF, and this Lot-III order for 300 is nearly equal to the total of Lots I and II combined. Additionally, the contract requires the delivery of the MALD-Jammer, in preparation for the MALD-J initial operational test and evaluation phase. Raytheon release

March 31/10: MALD. Raytheon announces that they have now delivered “an operationally significant quantity” of MALD decoys to the USAF, allowing the service to reach its “required assets available” as scheduled. Raytheon had committed to a 2010 delivery schedule in 2003.

Raytheon will continue to deliver additional MALDs to the U.S. Air Force, and expects to deliver its first system to the U.S. Air Force in 2012. It also says that it “continues to make progress developing a jamming variant of the MALD.”

Jan 13/10: MALD-J. Raytheon announces that the USAF completed the 1st free-flight test of the MALD-J variant. The test demonstrated that the MALD-J has reached a technology readiness level 7 and sets the stage for the system to enter engineeing and manufacturing development. The Feb 18/10 announcement notes that the free-flight test was conducted in December 2009.

Jan 15/09: Datalink? Raytheon announces that it received a $12.2 million USAF contract to study the feasibility of increasing power and adding a data link capability for the MALD-J. The contract requires Raytheon to integrate a data link and more powerful jammer amplifiers into the baseline MALD/MALD-J vehicle. Raytheon will also determine the technical feasibility and performance capability of MALD-J Block II prior to building and flight testing the new vehicle.

Oct 24/06: MALD. Raytheon announces that a series of MALD vehicles have demonstrated successful separation when launched from an F-16 fighter. The flight tests took place at Eglin Air Force Base, FL, under a development contract managed by the 728th Armament Systems Group. In total, 9 free-flight launches took place from May to July 2006 at Eglin.
