Team Torpedo: US Firms Sell & Support MK48s and MK54s

Torpedoes: Mk46, Mk50, Mk54

Mk-46, Mk-50, MK-54
(click to view full)

November 9/22: Initiating Propellant Northrop Grumman Systems won an $9 million deal for the manufacture of initiating propellant used on the MK48 heavyweight torpedo. This contract includes a three-year ordering period with no options. All work will be performed in Elkton, Maryland, and is expected to be completed by November 2025. Weapons procurement (Navy) funds in the amount of $2,203,980 will be issued for delivery order N00104-22-F-ZN01 that will be awarded concurrently with the contract and funds will not expire at the end of the current fiscal year. In July 2017, Northrop was awarded a $50.1 million contract to manufacture 45 torpedo transducer array and nose shell assemblies for the heavyweight torpedo.





For more on this and other stories, please consider purchasing a membership.
If you are already a subscriber, login to your account.
Mk 48: Before and After (click for full sequence) The Mk-48 is the standard heavyweight torpedo used by the US military, and is mounted primarily on submarines. Surface ships use the smaller Mk46 or Mk50. The Mk-54, in contrast, stemmed from the need for a smaller, lighter, and cost effective advanced torpedo – one that […]

Mk-48 Attack Before and After

Mk 48: Before and After
(click for full sequence)

The Mk-48 is the standard heavyweight torpedo used by the US military, and is mounted primarily on submarines. Surface ships use the smaller Mk46 or Mk50. The Mk-54, in contrast, stemmed from the need for a smaller, lighter, and cost effective advanced torpedo – one that could be dropped from helicopters, planes, and smaller ships. In recent years, the US has moved to modernize and maintain its Mk-48 inventory; the Mk-54 also requires servicing and spares.

Many of these contracts were issued under a total enterprise partnership between Raytheon and the US Navy called Team Torpedo, dedicated to meeting the needs of U.S. and allied naval fleets. Team Torpedo combines Raytheon’s manufacturing, design engineering, and support services expertise with the systems engineering and testing capabilities of Naval Undersea Warfare Center (NUWC) operations in Newport, RI, and Keyport, WA. Now, a new provider has entered the picture. DID has the complete set of contracts below… plus more details regarding the torpedoes involved, and the answer to the question “what the heck is CBASS standard”?

Heavyweight & Flyweight: Mk-48 ADCAP and Mk-54

Heavy Hitter: The Mk-48

US Torpedo Comparison Mk-48 Mk-54

US torpedoes
(click to view full)

The Mk-48 is a huge 533mm torpedo (19 feet long, 3,500+ pounds) with advanced homing, wire guidance capabilities, and devastating consequences when its 300kg warhead hits a target. It is designed to kill both fast, deep-diving nuclear submarines and high performance surface ships, and is carried by US Navy and Royal Australian Navy submarines. The Mk 48 ADCAP has improved target acquisition range, reduced vulnerability to enemy countermeasures, reduced shipboard constraints such as warm-up and reactivation time, and enhanced effectiveness against surface ships. These torpedoes can operate with or without wire guidance, and can use active and/or passive homing, conducting multiple re-attacks if they miss the target. Cost estimates for this weapon are around $2 million each, rising to almost $3 million in some cases with upgrades factored in.

The Common Broadband Advanced Sonar System (CBASS) kit is for the Mk48, and includes a Broadband Sonar Analog Receiver, preamplifier and interfacing hardware. This gives the retrofitted torpedoes the ability to transmit and receive over a wide frequency band, and takes advantage of broadband signal processing techniques to improve their targeting & tracking capabilities. This is especially helpful in shallower waters, where the bottom and other clutter is more likely to be in the way. CBASS kits procured before the end of FY 2007 were for Mk-48 ADCAP Mod 5 and below, and so they included the Torpedo Propulsion Upgrade (TPU) modification required for forebody/ afterbody compatibility. After that, the kits are used with Mk-48 ADCAP Mod 6 torpedoes, which don’t require the TPU.

Initial CBASS contractor Raytheon also manufactures the AN/BYG-1 combat management system used in new American submarines, and scheduled for retrofit to older Los Angeles class boats and the Royal Australian Navy’s Collins class submarines. This reportedly allows for a degree of synergy that improves the Mk-48 ADCAP torpedo’s effectiveness. In 2011, however, Lockheed Martin stepped into the picture with a key contract win for CBASS kits.

The USA, Australia, Brazil, Canada, and the Netherlands are Mk-48 customers, and Turkey has requested them for its new U214 subs. The Mk-48 doesn’t lack for international competitors, though: Britain (Spearfish), France (F21), Germany (Sea Hake), Italy (Black Shark), and now South Korea (White Shark) all produce plausible alternatives for western submarines. Russia, India, Japan, and China also produce their own heavy torpedoes, but they wouldn’t compete with the Mk-48 because the submarines that carry them are local or Russian designs.

Torpedo to go: The Mk-54

Torpedoes: Mk46, Mk50, Mk54

Mk-46, Mk-50, MK-54
(click to view full)

The Mk-54 stemmed from the need for a smaller, lighter, but cost effective advanced torpedo that could be dropped from helicopters, planes, and smaller ships. To achieve this, it combined the expensive Mk-50’s search and homing system with the propulsion system of the Mk-46 torpedo (the previous NATO/US standard), and added off-the-shelf electronic components. Its size improves its ability to go after targets in shallower littoral regions, but the torpedo is designed to work in both deep water and near-shore or shallow environments. Cost estimates for this weapon are around $1 million each.

In 2013, the Navy ordered the MK-54 MOD 0 array and transmitters. The MK-54’s sonar array and transmitters hadn’t been produced since the Navy completed MK-50 production in the mid-1990s, as the MK-54’s common parts were just taken from older MK-50 stocks. The new MOD 0s are substantially the same design, but obsolete parts and material have been switched for modern electronics. A new receiver is also part of Northrop Grumman’s contract, and the technology refresh and proof of design testing were accomplished by Advanced Research Laboratory, Pennsylvania State University (ARL PSU).

The MK 54 MOD 1 LWT kit is an upgrade that adds a new sonar array assembly, and improved processing capability. The full kit includes a 112-element array, transmitter, receiver, Processor Group Assembly (PGA), Modular Recording and Exercise Control System Second generation (MRECS2), and associated cables. It’s still a developmental product, under a SBIR Phase III framework. Progeny Systems Corporation, of Manassas, VA owns the intellectual property rights, so they’ve been the sole-source for all contracts.

HAAWC Torpedo Concept

Mk54 HAAWC
(click to view full)

Look up! The new 737-derived P-8 Poseidon aircraft is spurring the special development of special GPS-guided, high-altitude launch kits for the MK-54. The HAASW add-on kit from Boeing is derived from their JDAM bombs, allowing accurate torpedo drops from 35,000 feet in P-8A Poseidon Increment 2 aircraft, instead of the usual ceiling of several hundred feet. Lockheed and Raytheon have developed similar solutions.

Competitors: The MU90 Eurotorp is the Mk-54’s primary international competitor, and it has been very successful in the international marketplace. It ran into severe problems in Australia, however, and those have taken a long time to sort out. BAE Systems’ Stingray has made a few sales as well, and South Korea’s K745 Blue Shark could become an interesting future competitor. Meanwhile, there are still a lot of Mk-46s in service around the world.

Team Torpedo Contracts & Key Events

Unless otherwise specified, contracts are awarded under consolidated contract # N00024-04-C-6101 by The Naval Sea Systems Command in Washington, DC to Raytheon Integrated Defense Systems in Keyport, WA.

FY 2020-Today

Requests: Turkey.

U214 cutaway

U214 cutaway
(click to view full)

November 9/22: Initiating Propellant Northrop Grumman Systems won an $9 million deal for the manufacture of initiating propellant used on the MK48 heavyweight torpedo. This contract includes a three-year ordering period with no options. All work will be performed in Elkton, Maryland, and is expected to be completed by November 2025. Weapons procurement (Navy) funds in the amount of $2,203,980 will be issued for delivery order N00104-22-F-ZN01 that will be awarded concurrently with the contract and funds will not expire at the end of the current fiscal year. In July 2017, Northrop was awarded a $50.1 million contract to manufacture 45 torpedo transducer array and nose shell assemblies for the heavyweight torpedo.

July 19/22: South Korea The US Defence Security Cooperation Agency (DSCA) has notified Congress of a potential foreign military sale (FMS) of MK 54 lightweight torpedoes to South Korea. The FMS has an estimated value of $130m, which includes delivery of related equipment. Approved by the US State Department, the proposed sale includes 31 MK 54 all up round lightweight torpedoes along with recoverable exercise torpedo, storage and issue facility, torpedo containers, air launch accessories for rotary wing along with classified and unclassified torpedo spare parts.

May 13/22: IMA Lockheed Martin Sippican won a $14 million contract modification to exercise options for engineering and maintenance services for the Heavyweight MK48 Torpedo Program at the Intermediate Maintenance Activity (IMA) Pearl Harbor. Work will take place in Hawaii. Expected completion will be by March 2023.

November 25/21: Fuel Tank Science Applications International Corp. won a $123.7 million contract for the production of MK 48 Mod 7 heavyweight afterbody/tailcones and warshot fuel tank torpedo equipment and support. The MK 48 heavyweight torpedo is equipped with advanced commercial-off-the-shelf technologies to provide superior reliability and performance against challenging threats in both littoral and blue water environments, and can support multi-band operation. Work will take place in Indiana and Rhode Island. Expected completion date is in July 2025.



December 4/20: Brazil The State Department approved a possible Foreign Military Sale to the Government of Brazil of MK 54 Lightweight Torpedoes and related equipment for an estimated cost of $70 million. The Government of Brazil has requested to buy twenty-two (22) MK 54 conversion kits – to convert MK 46 Mod 5 A(S) torpedoes to MK 54 Mod 0 lightweight torpedoes. Also included are torpedo containers, Recoverable Exercise Torpedoes (REXTORP) with containers, Fleet Exercise Section (FES) and fuel tanks, air-launch accessories for rotary-wing, torpedo spare parts, propellant, lanyard start assembly suspensions bands, thermal batteries, training, publications, support, and test equipment. U.S. Government and contractor engineering, technical, and logistics support services, and other related elements of logistics and program support. The Government of Brazil intends to utilize MK 54 Lightweight Torpedoes on its Sikorsky S-70B “Seahawk” aircraft and surface ships. The principal contractor will be Raytheon Integrated Defense System, Portsmouth, RI. There are no known offset agreements proposed in connection with this potential sale.
October 6/20: Fuel Tank Assemblies Science Applications International won a $22.6 million combination cost-plus-fixed-fee, cost reimbursable, and firm-fixed-price type contract.  The contract is for the First Article testing and production of the All Up Round MK 28 MOD 2 Exercise and MK 29 MOD 0 Warshot fuel tank assemblies for the MK 48 heavyweight torpedo, engineering services with associated other direct costs and contract data requirements list in support of the Naval Undersea Warfare Center Keyport Undersea Warfare Systems. The Mk 48 and its improved Advanced Capability (ADCAP) variant are American heavyweight submarine-launched torpedoes. The Mk-48 torpedo is designed to be launched from submarine torpedo tubes. Work will take place in Indiana and Rhode Island. Estimated completion will be by March 2022.
July 13/20: Germany The DoS approved a possible sale of 64 MK 54 All Up Round Lightweight torpedoes, ten MK 54 Conversion Kits and related equipment to Germany for an estimated cost of $130 million. Also included are torpedo containers; Recoverable Exercise Torpedoes (REXTORP) with containers; Fleet Exercise Section (FES) and fuel tanks to be used with MK 54 conversion kits (procured as MDE); air launch accessories for fixed wing; torpedo spare parts; training, publications, support and test equipment; US Government and contractor engineering, technical, and logistics support services; and other related elements of logistics and program support. The proposed sale will improve Germany’s capability to meet current and future threats by upgrading the Anti-Submarine Warfare capabilities on Germany’s P-3C aircraft.
March 2/20: Netherlands The DoS approved a possible Foreign Military Sale to the Netherlands of sixteen MK-48 Mod 7 Advanced Technology (AT) torpedo conversion kits and related equipment for an estimated cost of $85 million. The Government of the Netherlands had requested to buy sixteen MK-48 Mod 7 Advanced Technology torpedo conversion kits. Also included are spare parts, containers, associated hardware, torpedo handling equipment, and cables; US Government and contractor engineering, technical, and logistics support services; and other related elements of logistics and program support. The Netherlands desire to upgrade additional MK 48 Mod 4 torpedoes to the MK 48 Mod 7 AT model. They intend to use the MK 48 Mod 7 AT torpedo on their Walrus Class submarines. The Netherlands will have no difficulty absorbing this equipment into its armed forces.

FY 2019

December 23/19: Production Progeny Systems won a $34.8 million deal for the production of MK54 MOD 1 lightweight torpedo kits, proof of manufacturing components, associated production support material, spares and engineering and hardware support services. The modification combines purchases for the Navy as well as the Government of Canada under the Foreign Military Sales program. The MK 54 Mod 0 Lightweight Torpedo integrates existing torpedo hardware and software from the MK 46, MK 50 and MK 48 torpedo programs with state-of-the-art commercial-off-the-shelf (COTS) digital signal-processing technology. It incorporates an advanced guidance and control (G&C) section employing COTS processing technologies and tactical software improvements to significantly increase shallow water counter-countermeasure capability at reduced lifecycle costs. These features provide performance improvements in the most challenging littoral scenarios. The MK 54 Mod 1 adds a new sonar array assembly and improved processing capability. Progeny Systems will perform work in Pennsylvania, Utah, and Virginia. Estimated completion will be in November 2022.
June 5/19: Guidance and Control Lockheed Martin won a $56.9 million contract modification to procure Mk 48 Mod 7 guidance and control (G&C) sections and Mk 48 Mod 7 Common Broadband Advanced Sonar System (CBASS). The company will also produce Functional Item Replacement (FIR) kits, spares and production support material, apart from offering related engineering services and hardware repair support, for G&C sections and CBASS kits. The MK 48 Mod 7 CBASS is an upgraded version of the MK 48 Advanced Capability Mod 6 Advanced Common Torpedo, manufactured by Raytheon. Lockheed Martin’s MK 48 Mod 7 CBASS torpedo is the US Navy’s most potent anti-surface and anti-submarine weapon in use aboard allied submarines. The torpedo has been designed to be exceedingly lethal and effective against threats operating in deep and shallow waters. Work will take place in Massachusetts and Pennsylvania and is scheduled to be finished by March 2021.
March 18/19: Engineering and Maintenance The Naval Sea Systems Command tapped Lockheed Martin with a $12.9 million contract modification for engineering and maintenance services for the Heavyweight Mk 48 Torpedo Program at the Intermediate Maintenance Activity Pearl Harbor. The Mk 48 Torpedo is submarine-launched and was designed to sink deep-diving nuclear-powered submarines as well as high-performance surface vessels. The Torpedo is capable of being carried by all US Navy submarines. A Mk 48 torpedo is 21 inches in diameter and weighs 3,520 pounds. It can destroy targets at ranges out to five miles and travels at speeds of more than 28 knots. Under the contract, Lockheed Martin will provide planning, technical and torpedo handling support, maintenance, repair and testing of torpedo components and torpedo maintenance-related tasks. Work will take place in Pearl Harbor, Hawaii and is scheduled to be finished by March 2020.

FY 2018

August 24/18: More Mod 1 kits needed Progeny Systems is set to supply the Navy and a number of US foreign military sales customers with a number of Mk-54 Mod 1 lightweight torpedo kits. The contract has a value of $40.6 million, but includes options which, if exercised, would increase the total face value of the contract to $303.2 million. FMS customers include Canada, Australia, the UK and Taiwan. The Mod 1 kit is an upgrade that adds a new sonar array assembly, and improved processing capability. The torpedo has a price-tag of $1 million per piece and is designed to work in both deep water and near-shore or shallow environments. Work will bet performed at multiple locations, including Charleroi, Pennsylvania; Salt Lake City, Utah and Manassas, Virginia.

August 14/18: Upgrade kits The Navy is ordering torpedo replacement kits from Lockheed Martin Sippican. The firm-fixed-price, cost and cost-plus-fixed-fee modification has a value of $59.1 million and provides for the production of G&C sections and CBASS kits used on the Mk48 Mod 7 torpedo. The Mk-48 is a huge 533mm torpedo (19 feet long, 3,500+ pounds) with advanced homing, wire guidance capabilities, and devastating consequences when its 300kg warhead hits a target. The Mk48 Mod 7 CBASS is an upgraded version of the MK 48 Advanced Capability (ADCAP) Mod 6 Advanced Common Torpedo (ACOT). CBASS includes a Broadband Sonar Analog Receiver, preamplifier and interfacing hardware. This gives the retrofitted torpedoes the ability to transmit and receive over a wide frequency band, and takes advantage of broadband signal processing techniques to improve their targeting & tracking capabilities. According to the Lockheed’s website the company delivers at least 20 Mod 7 CBASS kits per month to the US Navy. This contract combines purchases for the US Navy and international allies. The governments of the Netherlands, Canada and Turkey will each receive the kits under the US foreign military sales program. Work will be performed at Lockheed’s facilities in Marion, Massachusetts; Braintree, Massachusetts and Lemont Furnace, Pennsylvania. The kits are scheduled for delivery by March 2021.

August 3/18: Dutch purchase The Netherlands may soon receive more torpedoes for its Navy as part of a US foreign military sale. The US State Department is determined to approve the sale of 106 Mk 54 conversion kits for an estimated cost of $169 million. The Royal Netherlands Navy intends to upgrade its current Mk 46 torpedoes to the Mk 54 with the purchase of these kits. The Mk 54 stemmed from the need for a smaller, lighter, but cost-effective advanced torpedo that could be dropped from helicopters, planes, and smaller ships. To achieve this, it combined the expensive Mk-50’s search and homing system with the propulsion system of the Mk 46 torpedo and added off-the-shelf electronic components. Its size improves its ability to go after targets in shallower littoral regions, but the torpedo is designed to work in both deep water and near-shore or shallow environments. The deal would also include torpedo containers, Recoverable Exercise Torpedoes, air launch accessories for rotary wing aircraft and spare parts. The principal contractor will be Raytheon.

June 22/18: Maintencance needed The Navy is contracting Northrop Grumman Systems Corp. for maintenance work on its arsenal of Mk48 heavyweight torpedoes. The $17,9 million cost-plus-incentive-fee, cost-plus-fixed-fee and cost-only contract provides the commanders of the US Atlantic and Pacific fleet’s submarine force with approximately 56,160 man-hours per year to operate the progressive depot-level repair facility and provide depot-level repairable management functions for Mk 48 readiness. The Mk-48 is a huge 19 feet long, 3,500 lb. heavy torpedo with advanced homing, wire guidance capabilities, and devastating consequences when its 600 lb. warhead hits a target. It is designed to kill both fast, deep-diving nuclear submarines and high-performance surface ships, and is carried by US Navy and Royal Australian Navy submarines. These torpedoes can operate with or without wire guidance, and can use active and/or passive homing, and can conduct multiple re-attacks if they miss the target. Cost estimates for this weapon are around $2 million each, rising to almost $3 million in some cases with upgrades factored in. This Work will be performed in Yorktown, Virginia, and is expected to be completed by September, 2018.

FY 2014

Sept 24/14: MK48 Canada. The US DSCA announces Canada’s formal export request for up to 12 MK-48 Mod 7 Advanced Technology Torpedo Conversion Kits, which would upgrade 12 of Canada’s existing inventory of MK-48 torpedoes from Mod 4 to Mod 7. The torpedoes would be used in Canada’s Victoria Class submarines, and the proposed purchase includes containers, spare and repair parts, weapon system support and integration, publications and technical documentation, personnel training and training equipment, and US Government and contractor support.

The principal contractor will be Lockheed Martin Sippican, Inc. in Marion, MA; and the estimated cost is up to $41 million, or about $3.42 millon per conversion kit. Canada has significant relevant infrastructure, including MK-48 Mod 4/4M and MK-46 Mod 5A (SW) torpedoes, so they won’t need any additional US government or contractor representatives. Sources: US DSCA #14-49, “Canada – MK-48 Mod 7 Advanced Technology Torpedo Kits”.

DSCA request: Canada MK48-7AT kits (12)

Sept 2/14: MK54. Northrop Grumman Systems Corp. in Annapolis, MD, receives a $27.6 million firm-fixed-price, cost-plus-fixed-fee, cost-type contract modification. It’s exercising an option for proof of MK54 Mod 0 Lightweight Torpedo (LWT) manufacturing/first articles and functional item replacement level components. This includes Array Kits, engineering services hours, hardware repair support, test equipment, additional spares and production support material, and warranty options. All funds are committed immediately, using FY 2014 US Navy weapon budgets and foreign military sales to Australia and India.

Note that NGC is responsible for producing new MK-54 nose arrays (q.v. July 25/13), which means that every LWT order is effectively divided between Raytheon and NGC. Raytheon’s Aug 20/14 order + NGC’s contract totals $86.8 million, though Turkey is left out of this NGC announcement.

Work will be performed in Lititz, PA (41%); Annapolis, MD (30%); and Santa Barbara, CA (29%), and is expected to be complete by November 2016. Fiscal 2014 weapons procurement (Navy) and FMS contract funds in the amount of $27,625,777 will be obligated at time of award and will not expire at the end of the current fiscal year. The Naval Sea Systems Command, WA, DC manages the contract (N00024-13-C-6412).

Aug 20/14: MK-48 upgrades. Lockheed Martin Sippican, Inc. in Marion, MA receives a $31.9 million fixed-price-incentive, firm-fixed-price, cost-plus-fixed fee, cost-type option for 108 MK-48 MOD 7 CBASS Functional Item Replacement (FIR) Kits, related engineering services, CBASS FIR kit spares, and CBASS FIR kit warranty. The kits are designed to upgrade heavyweight torpedoes to this standard; they contain a guidance and control box, broadband analog sonar receiver, preamplifier, cable assemblies, and guidance and control assembly materials. All funds are committed immediately, using FY 2012 and 2014 US Navy weapon budgets.

Work will be performed in Marion, MA (95%), and Syracuse, NY (5%), and is expected to be complete by November 2017 (N00024-11-C-6404).

Aug 20/14: MK-54. Raytheon IDS in Portsmouth, RI receives a $59.2 million contract modification, exercising an option for MK54 Mod 0 Lightweight Torpedo (LWT) Kits, and related engineering and repair services for the upgrades. It involves purchases for the US Navy and the governments of Australia (q.v. Oct 5/10), India (q.v. June 24/11), and Turkey (q.v. May 12/14) under the Foreign Military Sales program. All funds are committed immediately.

See also Sept 2/14 for the other half of this order, involving Northrop Grumman who is responsible for the nose sonar transmitter arrays (q.v. July 25/13). Taken together, they total $86.8 million, though Turkey is left out of the NGC announcement.

Work will be performed in Keyport, WA (60%), and Portsmouth, RI (40%), and is expected to be complete by January 2018 (N00024-11-C-6410).

MK-54 orders: USA, Australia, India, Turkey

May 12/14: Turkey. The US DSCA announces Turkey’s formal export request for up to 48 MK 48 Mod 6 Advanced Technology All-Up-Round (MK-48 Mod 6AT AUR) Warshot Torpedoes, along with containers, fleet exercise sections, exercise fuel tanks, a surface recovery cage and tools, exercise hardware, maintenance facility upgrades, support and test equipment, spare and repair parts, personnel training and training equipment, publications and technical documentation, and other forms of US Government and contractor support.

Turkey will use the new torpedoes on their new U214/1200 Cerbe Class submarines, instead of Atlas Elektronik’s Seahake Mod4s. The DSCA says that Turkey is capable of integrating, employing, and maintaining the MK-48 Mod 6ATs, based on their experience to date with light MK-46 Mod 5A(S)W and MK-54s. They add that implementation of this proposed sale won’t require any more US Government or contractors, just occasional contractor engineering and technical services as needed.

The total estimated cost is up to $170 million, but negotiations will determine the exact price. The principal contractor will be Raytheon Company Integrated Defense Systems in Keyport, WA (MK-48); and Lockheed Martin Sippican in Marion, MA (CBASS). Sources: US DSCA #13-56, “Republic of Turkey – MK 48 TORPEDOES”.

DSCA request: Turkey MK-48s (48)

FY 2013

Exports: Australia, India; Development for MK-54 MOD 1; Contract for MK-54 MOD 0 guidance kits.

P-8I

P-8i concept
(click to view full)

Aug 29/13: MK-48 CBASS. Lockheed Martin Sippican Inc. in Marion, MA receives a $37.3 million contract modification for MK48 Mod 7 CBASS upgrade kits, associated warranties, and related engineering services. The upgrade kits consist of a guidance and control box, broadband analog sonar receiver, preamplifier, cable assemblies, and guidance and control assembly materials.

This contract combines purchases for the U.S. Navy (77%), where it’s part of a 5-year program to upgrade the submarine fleet to a common standard, and for the Netherlands (13%, q.v. July 29/10) and Canada (10%, q.v. March 23/11) under Foreign Military Sales channels. Work will be performed in Marion, MA (95%), and Syracuse, NY (5%), and is part of a multi-year contract that runs until July 2017. Lockheed Martin adds Manassas, VA and Newport, RI as work locations, and their subsidiary Polaris Contract Manufacturing will build the circuit card and module assembly (N00024-11-C-6404). See also: Lockheed Martin Aug 30/13 release.

USA, Canada, Dutch: MK-48 CBASS

Aug 20/13: +150 Mk-54s. Raytheon’s $28 million contract modification exercises an option to produce 150 MK-54 MOD 0 lightweight torpedo kits, and related engineering and repair services. Northrop Grumman makes the nose arrays for the MOD 0s now (q.v. July 25/13), and Raytheon makes the rest. All funds are committed immediately.

Work will be performed in Keyport, WA (95%), and Portsmouth, RI (5%), and is expected to be complete by November 2016 (N00024-11-C-6410).

MK-54s: USA

July 25/13: MK-54 MOD 0. Northrop Grumman Corp. in Annapolis, MD wins a $46 million firm-fixed price, cost-plus-fixed fee, cost-type contract to produce 428 MK-54 MOD 0 nose array kits. They’ll make proof of manufacturing/first articles, functional item replacement components, and additional spares and production support material, while providing engineering services hours, hardware repair support, test equipment, and warranty options.

All $46 million is committed immediately, and immediate customers include the U.S. Navy (52%, implicitly 223), and exports to the governments of Australia (41%, implicitly 175) and India (7%, implicitly 30). Options could bring the contract’s value to $294.4 million, and bring total production to 3,000 for the USA and Mk-54 export customers.

When asked, the Navy explained that the MK-54’s sonar array and transmitters haven’t been produced so far, just re-used as Government-Furnished Equipment from Navy stocks of 550 Northrop Grumman MK-50s and spares. Mk-50 production ended in the mid-1990s, so those have run out. The “new” MK-54 MOD 0 array and transmitter are substantially the same design, but obsolete parts and material have been replaced with modern electronics. A new receiver is also part of the Northrop Grumman contract, which leverages some of the things NGC learned as lead designer for the current MK48 ADCAP Mod 7 CBASS heavy torpedo upgrade. The technology refresh and proof of design testing were accomplished by Advanced Research Laboratory, Pennsylvania State University (ARL PSU).

Work will be performed in Lititz, PA (40.5%); Annapolis, MD (30.9%); and Santa Barbara, CA (28.6%), and is expected to be complete by July 2016. This contract was competitively procured, with proposals solicited via the E-commerce and FBO.gov websites, and 2 offers received by US Naval Sea Systems Command in Washington, DC (N00024-13-C-6412). See also NGC Aug 14/13 release.

Mk-54 MOD 0 nose arrays to NGC

July 10/13: Australia. The Defense Security Cooperation Agency announces [PDF] Australia’s formal export request for up to 100 MK-54 All-Up-Round Torpedoes, 13 MK-54 Exercise Sections, 13 MK-54 Exercise Fuel Tanks, 5 Recoverable Exercise Torpedoes, support and test equipment for upgrades to MK 695 Mod 1 capability, plus spare and repair parts, and various forms of US government and contractor support. Raytheon Integrated Defense Systems in Keyport, WA is the contractor, and the DSCA says that:

“Australia will use the MK 54 torpedo on its MH-60R helicopters and intends to use the torpedo on a planned purchase of the P-8A Increment 2 Maritime Patrol and Response aircraft.”

Links added by DID. The MH-60Rs are under construction, while the P-8A Increment 2 isn’t slated to be ready before 2016.

DSCA: Mk-54s for Australia (100)

May 7/13: MK-54 MOD 1. US NAVSEA announces sole source solicitation N00024-13-R-6409, to buy 890 of Progeny Systems’ MK 54 MOD 1 Lightweight Torpedo (LWT) kits, Production Support Material, Spares, Engineering Services, and MK 54 MOD 1 unique test equipment using a firm-fixed-price and cost-plus-fixed-fee contract. The FY 2014 base year will involve 40 units, the FY 2015 (50) & 2016 (100) option years would be Low Rate Initial Production, and FY 2017 – 2018 would be Full Rate Production option years for up to 350 units.

The MK 54 MOD 1 LWT kit is an upgrade that adds a new sonar array assembly, and improved processing capability. It includes a 112-element array, transmitter, receiver, Processor Group Assembly (PGA), Modular Recording and Exercise Control System Second generation MRECS2, and associated cables. Progeny Systems Corporation, of Manassas, VA gets the sole-source solicitation because their SBIR Phase III R&D contract (N00024-08-C-6272) gave them data rights to the MK 54 MOD 1 technology. The NAVSEA announcement was updated May 30/13. FBO.gov.

Mk-54 MOD 1

Oct 18/12: Raytheon announces a $45.3 million contract to provide MK 54 lightweight torpedo hardware, test equipment, spares and related services for the US Navy, Australia, and India. It’s exercised as an option under the current umbrella contract, but Raytheon doesn’t release numbers.

Australia’s Oct 5/10 request involved up to 200 torpedoes, while India’s June 24/11 request involved up to 32 MK54 all-up rounds for its new P-8i sea control planes.

Australia, India, USA: MK-54s

FY 2012

USA, Canada MK-48s.

Mk.48 into SSN 723, Guam

MK-48 loading, Guam
(click to view full)

Sept 7/12: +76 CBASS. Lockheed Martin Sippican Inc. in Marion, MA receives $21 million to produce 76 MK48 Mod 7 CBASS functional item replacement kits, and supporting warranty, engineering services, spares and production support material, for the US Navy (58 kits, 79%) and Canada (18 kits, 21%). This modifies a combination fixed-price incentive, firm-fixed-price, cost-plus-fixed-fee cost-only option contract.

The upgrade kits consist of a guidance and control box, broadband analog sonar receiver, preamplifier, cable assemblies, and guidance and control assembly materials. Canada has qualified its trouble-plagued Victoria Class submarines with the MK48 to replace British Spearfish torpedoes, and is busy retrofitting older MK48 torpedoes that were in its stocks to a modern standard. The 18 kits are half of their March 23/11 DSCA request.

Work will be performed in Marion, MA (95%), and Syracuse, NY (5%), and is expected to complete by December 2016. US Naval Sea Systems Command, Washington, DC, is the contracting activity (N00024-11-C-6404).

USA, Canada:
MK-48 CBASS

April 6/12: MK48 maintenance. Lockheed Martin Services, Inc. in Colorado Springs, CO receives a $10 million cost-plus-fixed-fee contract to staff and maintain the intermediate maintenance activity facility at the Naval Underwater Warfare Center, Keyport Detachment, Pacific in Pearl Harbor, Hawaii. The contractor will perform maintenance on about 300 MK48 MOD 6/7 ADCAP torpedoes, and will be required to perform approximately 25 torpedo turnarounds per month.

Work will be performed in Pearl Harbor, Hawaii, and is expected to be complete by April 2013. All contract funds will expire at the end of the fiscal year, on Sept 30/12. This contract was not competitively procured (N00024-12-C-6401).

Oct 13/11: P-8A. P-8A aircraft T-3 successfully launches its first MK 54 torpedo in the Atlantic Test Range, from 500 feet above water. The test verifies safe separation, with further weapon testing to come. US NAVAIR | Raytheon.

FY 2011

USA, Australia, Canada, India.

HAWC Torpedo Concept

Mk-54 Promo
(click to view full)

Sept 19/11: 100 MK54. Raytheon IDS in Portsmouth, RI receives a $42.6 million fixed-price incentive, firm-fixed price, cost-plus-fixed fee, cost-type contract for 100 MK 54, MOD 0 lightweight torpedoes. The contract includes options that could push its value to $558.4 million over 4 years, as it buys new weapons, test equipment, spares, engineering, and repair services related to upgrades of US Navy lightweight torpedoes.

Work will be performed in Portsmouth, RI (80%), and Keyport, WA (20%), and is expected to completed by October 2015. This contract was competitively procured via Navy Electronic Business Opportunities website, with 4 offers received (N00024-11-C-6410). See also Raytheon release.

USA: Mk-54s

Aug 11/11: ASROC. The US Department of the Navy issues FBO.gov presolicitation #N0010411RK105:

“The U.S. Navy intends to place an order for repair and upgrade various components for the ASROC MK54 Missile. The Government does not have drawings or required technical data to repair or upgrade thses [sic] components”

ASROC is a missile, which attaches to a lightweight torpedo (RUM-139B with Mk46 or RUM-139C with Mk54) and allows rapid engagement using a warship’s vertical launch cells. Once it reaches the target area, the torpedo drops into the water without the booster, and tracks normally. While Raytheon is the MK54’s manufacturer, VL-ASROC is a Lockheed Martin product; given the lack of government data, one or both of these contractors must be retained.

June 24/11: The US DSCA announces [PDF] India’s request to buy 32 MK-54 All-Up-Round Lightweight Torpedoes, 3 recoverable exercise torpedoes, 1 training shape, plus containers, spare and repair parts, support and test equipment, publications and technical documentation, personnel training and training equipment, transportation, and other forms of U.S. Government and contractor support. The estimated cost is $86 million, but actual costs will depend on a negotiated contract.

India intends to use the torpedoes on its forthcoming 8 P-8i Neptune maritime patrol aircraft, and the numbers involved mark this as an initial familiarity and training buy. Prime contractors are listed as “Boeing Company in St. Louis, Missouri, and a yet to be identified U.S. torpedo contractor.” Which is odd. Technically, Boeing is the P-8i lead integrator, but the Mk-54 is a Raytheon design. On the other hand, Lockheed Martin offers the GPS-guided, high altitude launch HAAWC/Longshot, consisting of an adapter kit mounted on a Mk-54. If India wants HAAWCs, Lockheed Martin could be listed as the contractor.

There is a possible industrial offset agreement in connection with the proposed sale, and implementation will require an unfinalized number of U.S. Government and contractor representatives in-country visits on a temporary basis for technical reviews, support, and oversight.

DSCA request: India MK-54s (32)

May 16/11: Taiwan. Taiwan’s military reportedly plans to budget $860 million to purchase new Mk54 and Mk48 torpedoes over the a 10-year period.

$300 million will reportedly be used to buy 600 Mk54 lightweight torpedoes, replacing existing Mk46s. They’re designed to launch for ships, and from aircraft like Taiwan’s incoming P-3C Orion sea control planes.

Another $160 million will be spent on the purchase of 40 Mk48s, replacing the existing German-made SUT heavyweight torpedoes Taiwan acquired with its 2 Hai Lung II (Zvaardis) Class subs built by the Netherlands. Another $400 million would cover 100 Mk48s, if Taiwan finds a way to source and purchase the 4-8 diesel-electric submarines it wants. Focus Taiwan.

March 31/11: Support. Raytheon Full Service Partnering Corp. in Keyport, WA receives a $47 million cost-plus-fixed-fee, indefinite-delivery/ indefinite-quantity contract for engineering services in support of lightweight and heavyweight torpedo systems.

This effort includes combined purchases for the US Navy (82%), and the governments of Canada (8%), Japan (4%), Brazil (4%), and Turkey (2%) under the Foreign Military Sales Program. Work will be performed in Newport, R.I., and is expected to be complete by March 2016; $50,000 will expire at the end of the current fiscal year. The contract was competitively procured, with one offer received via the Navy Electronic Commerce Online website by the US Naval Undersea Warfare Center Division in Newport, RI (N66604-11-D-0633).

March 23/11: The US DSCA announces [PDF] Canada’s request for 36 MK-48 Mod 7 Advanced Technology (AT) Torpedo Conversion Kits for their existing MK-48 Mod 4 stocks, plus containers, spare and repair parts, weapon system support & integration, publications and technical documentation, personnel training and training equipment, and other forms of U.S. Government and contractor support.

The estimated cost is $125 million, but the actual price will be finalized once a contract is signed. That may not happy very soon, as a federal election has just been forced by the minority Conservative Party government’s fall over its proposed budget. $3.5 million per torpedo does seem rather high for conversion kits, but it is in line with the Netherlands’ July 29/10 request for the same thing.

Canada intends to use the MK 48 7ATs on their Victoria Class diesel-electric fast attack submarines. No technical issues are expected, as the country already has some torpedoes of this type in stock, has significant experience with the MK 48 Mod 4/4M and MK 46 5A(S)W, and has good infrastructure for maintaining these weapons.

DSCA request: Canada MK-48 MOD7 kits (36)

March 4/11: New CBASS supplier. Lockheed Martin Sippican, Inc. in Marion, MA receives a $50.6 million fixed-price incentive, firm-fixed price, cost-plus-fixed fee, cost-type contract for MK48 Mod 7 CBASS functional item replacement (FIR) upgrade kits (guidance & control box, broadband analog sonar receiver, preamplifier, cable assemblies, and guidance and control materials); plus engineering services hours, hardware repair support, test equipment, additional spares and production support material, and warranty options should all options be exercised. This contract includes options which could bring its cumulative value to $235.2 million.

Work will be performed in Marion, MA (99%), and Akron, OH (1%), and is expected to be complete by May 2014. This contract was competitively procured via Navy Electronic Commerce Online website, with 5 offers received by US Naval Sea Systems Command in Washington, DC (N00024-11-C-6404).

USA – new CBASS supplier

Oct 5/10: The US DSCA announces [PDF] Australia’s official request to buy up to 200 MK 54 All-Up-Round Torpedoes, 179 MK 54 Flight in Air Material Kits to mount them onto aircraft, 10 MK 54 Exercise Sections, 10 MK 54 Exercise Fuel Tanks, 10 MK 54 Dummy Torpedoes, 6 MK 54 Ground Handling Torpedoes for safe training, plus support and test equipment to upgrade Intermediate Maintenance Activity to full MK 54 capability, spare and repair parts, technical data and publications, personnel training and training equipment, and other forms of U.S. government and contractor support.

It’s an interesting request, because Australia had picked the Eurotorp MU90 as its lightweight torpedo, but an MH-60R pick would require either a MK-54 purchase or expensive integration work. The estimated cost is up to $169 million, and the prime contractor will be Raytheon Company Integrated Defense Systems in Keyport, WA.

DSCA request: MK-54s for Australia (200)

FY 2008 – 2010

USA, Australia, Netherlands, Turkey.

Mk-48 Torpedo Loading

Loading a Mk-48
(click to view larger)

July 29/10: The US DSCA announces [PDF] The Netherlands’ official request to buy 40 MK-48 Mod 7 Advanced Technology (AT) Torpedo Conversion Kits, 40 containers, plus support and test equipment, spare and repair parts, weapon system support and integration, publications and technical documentation, personnel training and training equipment, and other U.S. Government and contractor support. The Netherlands wants to upgrade its current stock of MK 48 Mod 4 torpedoes to the MK 48 Mod 7AT, for use on its Walrus Class diesel-electric fast attack submarines. Asked about the difference between this upgrade and the USA’s MK 48 ADCAP, a Raytheon representative relied that:

“The Advanced Technology (AT) configuration was developed to provide compatibility to the launching interfaces of international submarine configurations.”

The estimated cost is up to $150 million, and the prime contractor will be Raytheon Company Integrated Defense Systems in Keyport, WA. The Netherlands won’t require the assignment of any additional U.S. Government or contractor representatives to The Netherlands, though Contractor Engineering and Technical Services (CETS) may be required on an interim basis for installations.

DSCA request: Dutch MK-48 MOD 7 kits (40)

Nov 30/09: Sub-contractors. Raytheon IDS issues a $2.6 million contract to electronics contract manufacturer LaBarge Inc. in St. Louis, MO. The firm has ordered wiring harnesses to fit its MK 48 and MK 54 torpedoes. This is the first time LaBarge has supplied parts for the 2 torpedo programs.

LaBarge will make the wiring harnesses at the company’s Berryville, AK plant, and should be finished in December 2011. Raytheon makes torpedoes at the company’s Torpedo and Readiness Center, co-located with the U.S. Naval Undersea Warfare Center Division in Keyport, WA, as well as at the Raytheon Seapower Capability Center in Portsmouth, RI. Interconnection World.

Aug 7/09: +49 MK-54s. A $19.3 million modification to previously awarded contract (N00024-04-C-6101) to provide additional MK 54 torpedoes and support services necessary to support Fleet Operational Requirements for the various torpedo product lines. Work will be performed in Keyport, WA (50%) and Portsmouth, RI (50%), and is expected to be complete by October 2011.

Raytheon’s Sept 9/09 release says that the addition of this order places them under contract to deliver 241 total Mk-54 kits, of which 100 kits will be delivered to the Turkish Navy via a Foreign Military Sales agreement. That raises the total number of MK-54s announced on Oct 9/08 by 49, from 192 to 241.

USA, Turkey:
Mk-54

Jan 8/09: Sub-contractors. Progeny Systems Corporation in Manassas, VA received a $13.5 million indefinite-delivery/ indefinite-quantity, cost plus fixed fee contract for engineering services in support of the MK54 torpedo systems. The contractor will be required to perform engineering efforts including technology assessment, mechanical and electrical component analysis, hardware/software development, critical item testing, hardware/software integration, certification and test, and life cycle logistics studies necessary for the testing and evaluation, prototype and engineering development model components of torpedo systems.

Work will be performed in Manassas, VA (80%), and other locations including Newport, R.I. (20%), and is expected to be complete by January 2014. This contract was not competitively procured by the Naval Undersea Warfare Center Division in Newport, RI (N66604-09-D-0002).

Oct 9/08: A $171.1 million modification to previously awarded contract (N00024-04-C-6101) to provide MK48 and MK54 torpedoes on a firm fixed-price basis, plus engineering and support. This is a continuation of MK48 ADCAP, MK48 CBASS and MK54 torpedo programs under contracts N00024-98-C-6107, N00024-00-C-6100, N00024-00-C-6102 and N00024-03-C-6104. The total amount funded at contract award will be $166.3 million, and contract funds in the amount of $48.9 million will expire at the end of the current fiscal year (Sept 30/09).

Raytheon’s subsequent release places the number at 192 MK54s, and 228 MK48 CBASS torpedo upgrade kits to the US Navy. Raytheon IDS will supply the Royal Australian Navy with 19 of the CBASS kits, and the Turkish Navy with 100 MK54 torpedo kits.

Work on the contracts will be performed at Raytheon’s Torpedo and Readiness Center, co-located with the U.S. Navy at NUWC Division Keyport, WA (50%), and at the Seapower Capability Center in Portsmouth, RI (50%). Work is expected to be complete by July 2011.

USA, Australia, Turkey: Mk-48 & Mk-54

Aug 1/08: Contract conversion. A $6 million modification to previously awarded contract N00024-04-C-6101 to provide cost growth funding for the P2U NRE (Producibility 2nd Year Upgrade) completion efforts, and to convert the contract to Firm-Fixed Price (FFP) buys. This effort is a continuation of MK48 ADCAP, MK48 CBASS and MK54 torpedo programs under contracts N00024-98-C-6107, N00024-00-C-6100, N00024-00-C-6102 and N00024-03-C-6104. Work will be performed in Keyport, WA (50%) and Portsmouth, RI (50%), and is expected to be complete by September 2009 .

Contracts converted

July 28/08: A $12.3 million modification to previously awarded contract (N00024-04-C-6101) for production material in support of the FY 2007/2008 MK48/MK54 torpedo buy. This effort is a continuation of MK48 ADCAP, MK48 CBASS and MK54 torpedo programs under contracts N00024-98-C-6107, N00024-00-C-6100, N00024-00-C-6102 and N00024-03-C-6104. Work will be performed in Keyport, WA and is expected to be complete by September 2008.

FY 2004 – 2007

MK-54 FRP. USA, Australia.

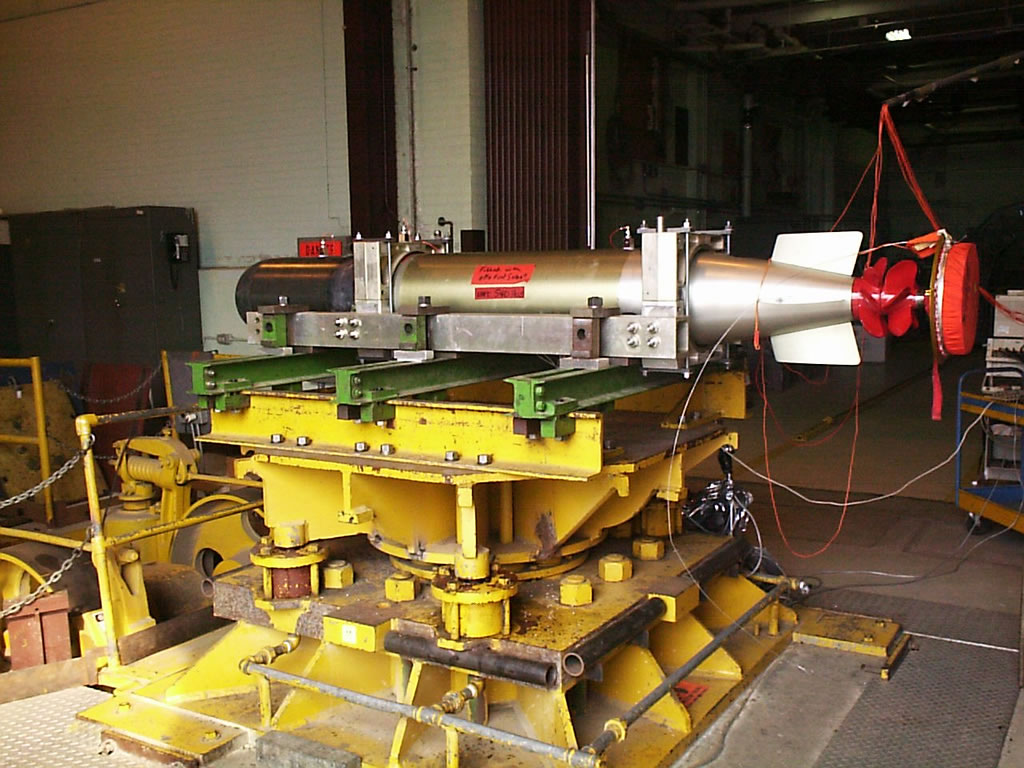

MK54 testing

Mk54 testing
(click to view full)

Dec 21/06: Support. Raytheon announces that Naval Sea Systems Command has awarded them a $12.5 million contract for technical engineering, repair and maintenance services in support of the MK48 Advanced Capability (ADCAP) heavyweight torpedo. This award is a contract modification exercising a one-year option that was included in the original technical services contract awarded in April 2006. Under the contract, IDS will perform intermediate-level maintenance, repair and refurbishment of MK48 ADCAP torpedoes currently in the U.S. Navy’s fleet inventory of training and warshot torpedoes. The inventory is used for fleet training, readiness and submarine-launched torpedo warshot exercises. Work on the contract will be performed in Pearl Harbor, HI; Yorktown, VA; and Poulsbo, WA.

Dec 7/06: Delivery. A NAVSEA announcement notes that the first Warshot MK 48 Mod 7 Advanced Capability (ADCAP) Common Broadband Advanced Sonar System (CBASS) Heavyweight Torpedoes were delivered to the Fleet and loaded aboard the Improved Los Angeles Class submarine USS Pasadena [SSN 752] in Pearl Harbor, HI. See NAVSEA release for further details.

MK48 MOD 7 delivery

Aug 1/06: Support. A $5 million firm-fixed-price modification to purchase additional spares, and issue a technical issue to support fleet operational requirements for the various torpedo product lines. This will satisfy additional fiscal year 2006 Navy and Royal Australian Navy requirements for MK48 advanced capability and MK54 Mod 6 lightweight torpedo spares and MK48 common broadband advanced sonar system Mod 7 heavyweight production engineering support. This modification combines requirements for the US Navy (99%) and the Royal Australian Navy (1%). Work will be performed in Keyport, WA (90%), and Portsmouth, RI (10%), and is expected to be complete by June 2009.

July 31/06: 107 MK48, 105 MK54. An estimated $95.4 million firm-fixed-price modification for the necessary quantities of Mk48 heavyweight torpedo and Mk 54 lightweight torpedo support services necessary to support fleet operational requirements. It represents the consolidated MK48 and MK54 torpedo kit hardware buy, with engineering and repair services. This contract combines support for the US Navy (70%) and the Government of Australia (30%) under the foreign military sales program. Work will be performed at Raytheon’s Torpedo and Readiness Center, co-located with the U.S. Navy at NUWC Division Keyport and at the Maritime Mission Center in Portsmouth, RI (10%) and in Keyport, WA (90%), and is expected to be complete by June 2009.

For the modifications announced on July 31/06 and Aug 1/06 under the consolidated torpedo contract, Raytheon will deliver electronic systems and components, spares and services for 105 MK-54 lightweight torpedoes and 107 MK-48 heavyweight torpedoes. They will also support the MK-48 upgrade and configuration to CBASS standard, which entered full-rate production in June 2006. The August 1,2006 contract also covers torpedo spares, production engineering and technical support for fleet operational requirements for the U.S. and Royal Australian Navy’s inventories.

These were described as “fiscal year 2006 procurement quantities,” indicating that this is the full order for the year.

USA, Australia:
Mk-48 & Mk-54

Jan 11/05: FY 2005. A $78.7 million firm-fixed-price modification to previously awarded contract (N00024-04-C-6101) for fiscal year 2005 consolidated MK-48 and MK-54 torpedo hardware, and associated engineering and repair services.

Work will be performed in Keyport, WA (90%) and Portsmouth, RI (10%), and is expected to be completed by September 2007. Contract funds will not expire at the end of the current fiscal year. This modification supports requirements for the U.S. Navy (90%) and Royal Australian Navy (10%), under the Foreign Military Sales program. The Naval Sea Systems Command, Washington, D.C., is the contracting activity.

USA:
MK-48 & Mk-54

Oct 26/04: MK-54. Raytheon begins full rate production of the Mk54 lightweight torpedo. “Under the consolidated procurement contract for fiscal year 2004, Raytheon will deliver 51 MK54 lightweight torpedoes and associated whole-life support services. The five-year contract value, including exercised options, is expected to exceed $500 million.” See complete news release.

MK-54 FRP

June 22/04: 101 MK48, 51 MK54. Raytheon Systems Co. Integrated Defense Systems in Keyport, WA received a firm-fixed price letter contract with a not to exceed value of $70.2 million for the consolidated procurement of FY 2004 undersea weapons requirements for 91 MK48 advanced capability (ADCAP) Mod 6 heavyweight torpedoes, including 15 kits in support of the next generation MK-48 CBASS Mod 7 initial production; production engineering for the MK48 Common Broadband Advanced Sonar System (CBASS) Mod 7 heavyweight (HWT); 51 MK54 Mod 6 lightweight (LWT) torpedoes; and associated support services.

This effort is a continuation of MK48 ADCAP, MK48 CBASS and MK54 torpedo for the primary purpose of purchasing the necessary quantities of torpedoes and support services necessary to support further operational evaluation, future milestone decisions, and initial operational capability for the various torpedo product lines. Work will be performed in Keyport, WA (90%) and Portsmouth, RI (10%), and is expected to be completed by June 2009. Contract funds will not expire at the end of the current fiscal year. This contract was not competitively procured. The Naval Sea Systems Command, Washington, D.C., is the contracting activity (N00024-04-C-6101).

See also Raytheon release, which adds 20 MK-48 ADCAP Mod6 kits for Australia to the above totals.

USA, Australia:
Mk-48 & Mk-54

Additional Readings

* Department Of The Navy Fiscal Year (FY) 2006/FY 2007 Budget Estimates (February 2005) – Justification Of Estimates: Weapons Procurement, Navy [PDF].

* US Navy – MK 48 Heavyweight Torpedo.

* Raytheon – MK 48 Mod 6 Advanced Technology

* Lockheed Martin – Hitting the Mark with Upgraded CBASS.

* GlobalSecurity.org – Mk-48 Torpedo.

* US Navy – MK 54 – Torpedo.

* Raytheon – MK 54 Lightweight Torpedo.

* Federation of American Scientists – MK-54 Lightweight Hybrid Torpedo.

* Lockheed Martin – HAAWC. High-altitude GPS-guided kit. Boeing actually won.

* Raytheon – Fish Hawk. High-altitude GPS-guided kit. Boeing actually won.

* Eurotorp Consortium.

* US Dept. of the Navy Acquisition One Source – Exchange of Non-Excess Property for New Assets in the MK46 and MK54 Torpedo Programs. Innovative idea.

* DID (May 31/07) – Longshot: A Swooping HAAWC for Torpedoes. Enables high-altitude launch, turning the Mk54 into a GPS-guided glide weapon that releases the torpedo near sea level.

* Australian Defence Materiel Organization (June 21/06) – JP 2070 ADF – Lightweight ASW Torpedo – Project Djimindi. Selected the MU90 Eurotorp. It hasn’t gone well.

* Spacewar (June 14/06) – Navy Selects LockMart For MK-54 Torpedoes High Altitude Launch Capability

* DID (Nov 15/05) – Australia’s Collins Class Subs, Submariners On Track for Upgrades. Mk-48 ADCAP torpedoes are part of those upgrades.

* Seapower Magazine (June 2005) – Boeing Eyes High-Flying Torpedo. For the P-8A MMA program. The 737-based P-8A is a capable aircraft, but doesn’t do as well as a turboprop when flying just 100 feet above the waves.

* Undersea Warfare Magazine (Winter/Spring 2002) – Torpedoes and the Next Generation of Undersea Weapons

* Thanks to reader Gregory L. Bender, P.E. of Defense Holdings, Inc. for catching an (incorrect) reference to the Mk48’s use on surface ships. At present, they use smaller Mk46 and Mk50 torpedoes.

One Source: Hundreds of programs; Thousands of links, photos, and analyses

DII brings a complete collection of articles with original reporting and research, and expert analyses of events to your desktop – no need for multiple modules, or complex subscriptions. All supporting documents, links, & appendices accompany each article.

Benefits

  • Save time
  • Eliminate your blind spots
  • Get the big picture, quickly
  • Keep up with the important facts
  • Stay on top of your projects or your competitors

Features

  • Coverage of procurement and doctrine issues
  • Timeline of past and future program events
  • Comprehensive links to other useful resources
