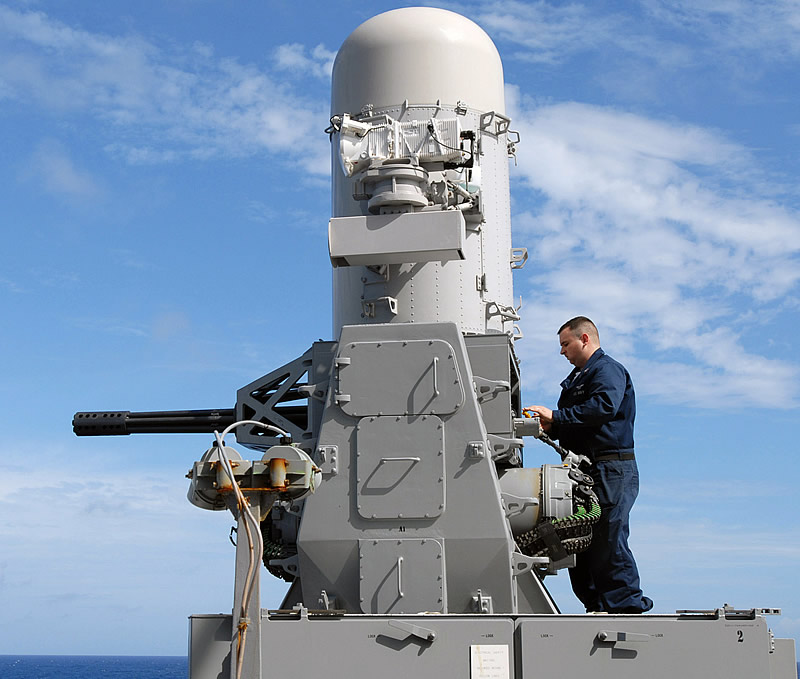

The radar-guided, rapid-firing Mk. 15 Phalanx Close-In Weapons System (CIWS, pron. “see-whiz”) can fire between 3,000-4,500 20mm cannon rounds per minute, either autonomously or under manual command, as a last-ditch defense against incoming missiles and other targets. Phalanx uses closed-loop spotting with advanced radar and computer technology to locate, identify and direct a stream of armor piercing projectiles toward the target (see video: MPEG | AVI, with hat tips to the good folks at Digg.com).

These capabilities have made the Phalanx CIWS a critical bolt-on sub-system for naval vessels around the world. The latest fielded development is C-RAM/Centurion, a land-based system designed to defend against incoming artillery and mortars. This DID Spotlight article offers updated, in-depth coverage that describes ongoing deployment and research projects within the Phalanx family of weapons, the new land-based system’s new technologies and roles, and international contracts from FY 2005 onward. As of Feb 28/07, more than 895 Phalanx systems had been built and deployed in the navies of 22 nations.

• The Phalanx Platform: Competition, Upgrades & Developments
• Land-Based Phalanx: C-RAM
• Phalanx Contracts and Key Events, FY 2005-Present [updated]
• Additional Readings

The Phalanx Platform: Competition, Upgrades & Developments

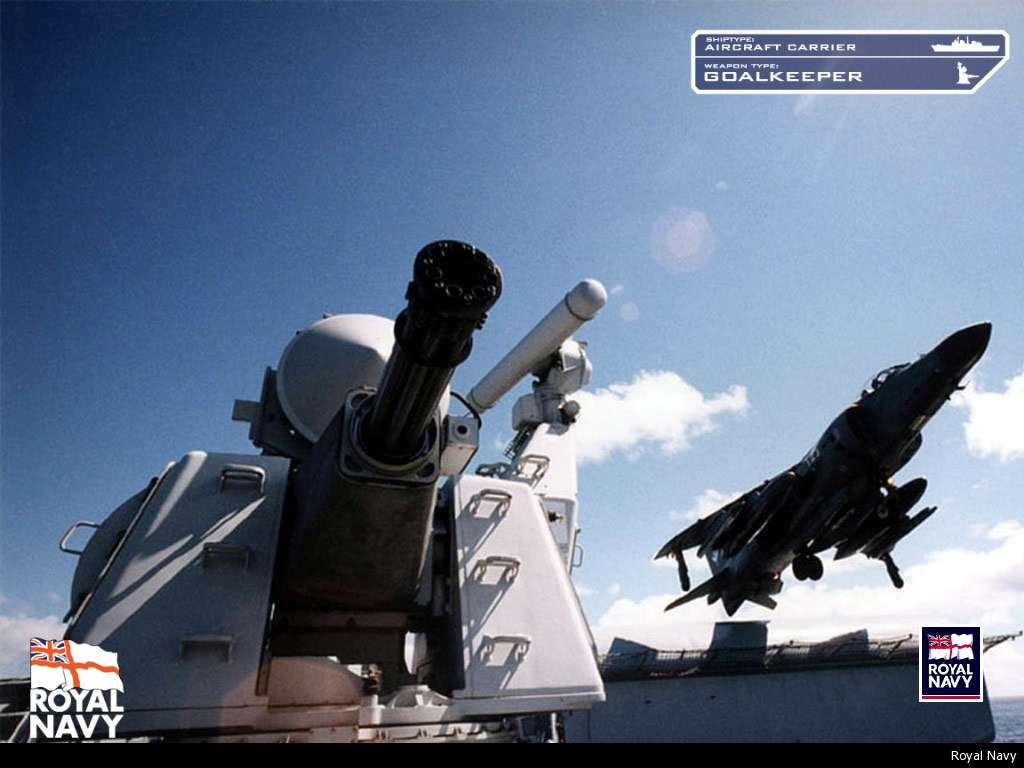

Phalanx is not alone on the market. Its principal competitor is the Thales Nederland Goalkeeper system, which uses the same GAU-8 30mm tank-killer gatling gun mounted on the A-10 Thunderbolt close support aircraft. This offers better hitting power than the Mk15’s 20mm weapon due to its heavier projectiles, which may help stop fragments of a supersonic missile from hitting a ship and doing damage. On the flip side, Goalkeeper takes up a larger footprint of space on board ship, and requires significant “deck penetration” and integration instead of being a bolt-in offering like Phalanx. The Goalkeeper is a distant second in the market, but it has a solid foothold. It is currently in service with the British Royal Navy, Chilean Navy, Royal Netherlands Navy, Portuguese Navy, and South Korean Navy.

There are no reports of a 30mm Phalanx, but Raytheon is taking other steps to keep its platform on top of the market, and relevant to modern threats.

The Mk 15 Phalanx system was originally developed as a last-ditch defense against enemy missiles, and possibly aircraft. As radars have improved, and electronics have become both smaller and more powerful, it becomes possible to create systems that offer better target discrimination and tracking to defend against a wider range of threats. Upgraded Block 1B versions can now also used against small gunboats, standard and guided artillery; helicopters, etc. Paul Gilligan, head of platform integration for Raytheon’s UK subsidiary, was quoted saying that:

“This upgrade is vitally important, especially in the context of the evolving threats worldwide… It provides protection to ships and their crews against an increased number of threats including small, fast gunboats; standard and guided artillery; helicopters; mines and a variety of shore-launched, anti-ship missiles.”

“Baseline 2” Modifications to the Phalanx Block 1 also change the system, using high pressure air instead of hydraulics to release the rounds. That ramps the Mk 15’s firing rate from 3,000 rounds per minute to 4,500.

The high speed and hence low warning time provided by many supersonic anti-ship missiles are also an evolving concern for global navies. Given the Phalanx’s limited range of just a couple of miles, coping with saturation attacks by missiles traveling at speeds of 0.5 – 1 mile per second requires additional systems. The MK 15 Phalanx Block 1B’s mountings and electronics will also be the base platform for the new SeaRAM short range anti-air missile system, in use by the USA, Germany, Korea, and others. Unlike vertically-launched missiles, the RIM-116 missile is fired on a flat trajectory from an 11-round or 21-round launcher. That saves precious seconds, and provides an intermediate zone of defense between Phalanx systems and medium-range vertically-launched missiles like the RIM-162 Evolved Sea Sparrow or SM-2.

A 3rd option to extend the system’s range involves an entirely new technology: lasers. Kevin Peppe, Raytheon’s Phalanx program director, has said that “a robust but relatively low power, low beam-quality commercial laser” is under investigation. It could offer an effective range about 3 times that of the existing M61A1 20mm gun, along with lower life-cycle costs and fewer worries about civilian casualties when used on land. Even so, this concept is a long way from becoming a practical battlefield weapon. More powerful solid-state lasers will probably be required in order to make the concept feasible against the full range of threats, and other complications like the effects of fog on lasers, and stopping power issues, must also be overcome.

Land-Based Phalanx: C-RAM/ Centurion

One area of clear progress for the Phalanx system is on land. Back in June 2005, “Phalanx R2D2s to Counter Land Mortars” drew attention to the US Army’s land-based version, imaginatively known as the “Land-based Phalanx Weapon System” and also known as Mk15 MOD 29, C-RAM, or Centurion. Unofficially, many refer to them as “R2D2s,” after the Star Wars robot they resemble. Originally developed to defend US bases against mortar attack, these trailer-mounted weapons could also provide defensive options against the kinds of rocket attacks encountered in Round 1 of Israel’s recent war with Hezbollah, Iran & Syria. This appears to be a spiral development contract, with fielding of interim solutions as development progresses.

Centurion uses target acquisition sensors, including Northrop Grumman’s AN/TPQ-36 short-range Firefinder radar and the Lightweight Counter Mortar Radar, to detect and track fired rounds. The fire-control subsystem Northrop Grumman Mission Systems provides for C-RAM uses software modified from Northrop Grumman’s Forward Area Air Defense Command and Control (FAAD C2) system, which ties together the sensors and weapons of the Army’s short-range air-defense battalions. Northrop Grumman is the prime contractor for FAAD C2, which is operational throughout the world and has been especially critical to homeland security efforts in the Washington, DC area.

Once a threat is detected, audio and visual alarms sound to warn exposed soldiers. A fire-control subsystem predicts the mortar’s flight path, prioritizes targets, activates the warning system, and provides cueing data to defeat the mortar round while still in the air.

The Phalanx then fires explosive rounds that self-destruct if they do not hit a target, removing the danger of falling 20mm bullets coming back to earth and killing people in the base itself or in nearby populated areas.

C-RAM/Centurion has been deployed by the USA, and Britain. In October 2008, Raytheon and Oshkosh unveiled the Mobile Centurion, which mounts the system on a hybrid-electric HEMTT A3 heavy truck.

Phalanx Contracts and Key Events

Unless otherwise specified, all contracts are issued by the US Naval Sea Systems Command in Washington, DC to Raytheon Co. in Tucson, AZ.

Dec 27/11: A $45.6 million cost-plus-fixed-fee contract for Phalanx, SeaRAM, and Land-based Phalanx design agent engineering and technical support services. covering overall maintainability, reliability, and improvements. The contract is initially funded with $726,000, with more to be allocated as needed.

Work will be performed in Tucson, AZ, and is expected to be completed by January 2013. This contract was not competitively procured by US NAVSEA in Washington, DC (N00024-12-C-5405).

Sept 12/11: Raytheon signs a $65.5 million Direct Commercial Sale contract to deliver 5 Phalanx Block 1B Close-In Weapon Systems to the Republic of Korea Navy for the new 3,200 ton Ulsan-1 Class FFX inshore patrol frigates.

The contract calls for the systems to be installed starting in April 2013, and represents Phalanx’s largest sale to the ROK fleet – which generally uses Thales’ larger 30mm Goalkeeper instead. Raytheon.

Aug 31/11: A 5-year, $162.2 million not-to-exceed fixed-price requirements contract for performance based logistics support for the Phalanx CIWS. This announcement includes service to the governments of Australia, United Kingdom, New Zealand, Japan, Poland, and Bahrain, which will be issued as separate delivery orders, on an as-required basis.

Work will be performed in Louisville, KY, and is expected to be completed August 2016. This contract was not competitively procured pursuant to FAR 6.302-1, by US NAVSUP Weapon Systems Support in Mechanicsburg, PA (N00104-11-D-ZD43).

Aug 25/11: A not-to-exceed $161 million contract modification to previously awarded contract for MK15 Mod 31 SeaRAM systems in support of Independence Class ships LCS 6 Jackson and LCS 8 Montgomery, and Japan’s “DDH 2405 helicopter destroyer,” as well as Phalanx CIWS Block 1B class “A” overhauls, and land-based Phalanx Weapon System class “A” overhauls.

The SeaRAM systems differ from other RAM launchers by having the full Phalanx enclosure, including the accompanying radar, as well as added infrared sensors. This creates a bolt-on missile system that can be operated semi-autonomously, or integrated and coordinated via the ship’s combat system. In exchange, it holds just 11 missiles in its launcher, instead of 21.

As for Japan’s “DDH-2405,” this may be the first ship of Japan’s new “22DH” project to field 800 foot, 30,000t vessels that are larger than its existing 18,000t Hyuga Class. The Hyuga Class are properly characterized as escort carriers, but Japan’s constitution forbids them from owning carriers. The SH-60 Seahawk helicopters on board JMSDF Hyuga and JMSDF Ise certainly proved themselves in the wake of the 2011 tsunami, however, which should mute any domestic criticism.

The Pentagon adds that Phalanx CIWS is currently installed on approximately 152 US Navy and 14 US Coast Guard ships, and is in use in 23 foreign navies. Work will be performed in Louisville, KY (30%); Andover, MA (19%); Tucson, AZ (9%); Germany (7%); Syracuse, NY (7%); Long Beach, CA (6%); Radford, VA (6%); Burlington, VT (6%); Palm Bay, FL (2%); Pittsburgh, PA (2%); Bloomington, MN (2%); Salt Lake City, UT (2%); Norcross, GA (1%); and New Albany, IN (1%). Work is expected to be complete by September 2015, but $90.7 million will expire at the end of the current fiscal year, on Sept 30/11(N00024-10-C-5427).

Aug 1/11: A $7 million contract modification for MK15 Phalanx engineering and technical services to the US military, and the governments of Japan and Saudi Arabia (1%) under the Foreign Military Sales Program. Work will be performed in Tucson, AZ, and is expected to be complete by April 2012. $200,000 will expire at the end of the current fiscal year, on Sept 30/11 (N00024-07-C-5437).

July 26/11: Poland submits a DSCA notice for service life extensions of its FFG-7 frigates, which includes upgrades to its Mk15 systems from Block 0 to Block 1B/ Baseline 2. Read “Poland to Extend, Improve its FFG-7 Frigates” for full coverage.

June 21/11: Babcock International Group announces the pending qualification and testing of Raytheon’s Phalanx 1B 20mm close-in weapon system on HMS Daring. The Type 45 air defense destroyers were not delivered with secondary defensive systems for use against UAVs, small boats, and incoming missiles, so the pending qualification will help to patch the gaps in their defenses.

Babcock will supervise the installation of 2 systems in HMS Daring at Portsmouth Naval Base, as a lead-in to Naval Weapon Sea Trials (NWST), including a towed target firing. Most British ships have used Thales larger 30mm Goalkeeper system, but the Phalanx is an easier and cheaper “bolt-on” addition. Babcock’s previous Phalanx installations have been upgrades on the Type 42 destroyer HMS York, and the fleet replenishment ship RFA Fort Victoria.

April 29/11: The US Defense Security Cooperation Agency announces [PDF] Britain’s official request for Ordnance Alteration Kits for 36 MK15 Phalanx Close-In Weapon System (CIWS) upgrade (Ordnance Alternation, or OrdAlt) kits. The request includes 20 kits for converting Phalanx Block 1A systems to Block 1B Baseline 2, and 16 kits that raise systems from Block 1B Baseline 1 to Baseline 2. Spare and repair parts, support equipment, personnel training and training equipment, publications and technical documentation, software support, and other US government and contractor support are also included. The estimated cost is up to $137 million, but exact costs will depend on a negotiated contract.

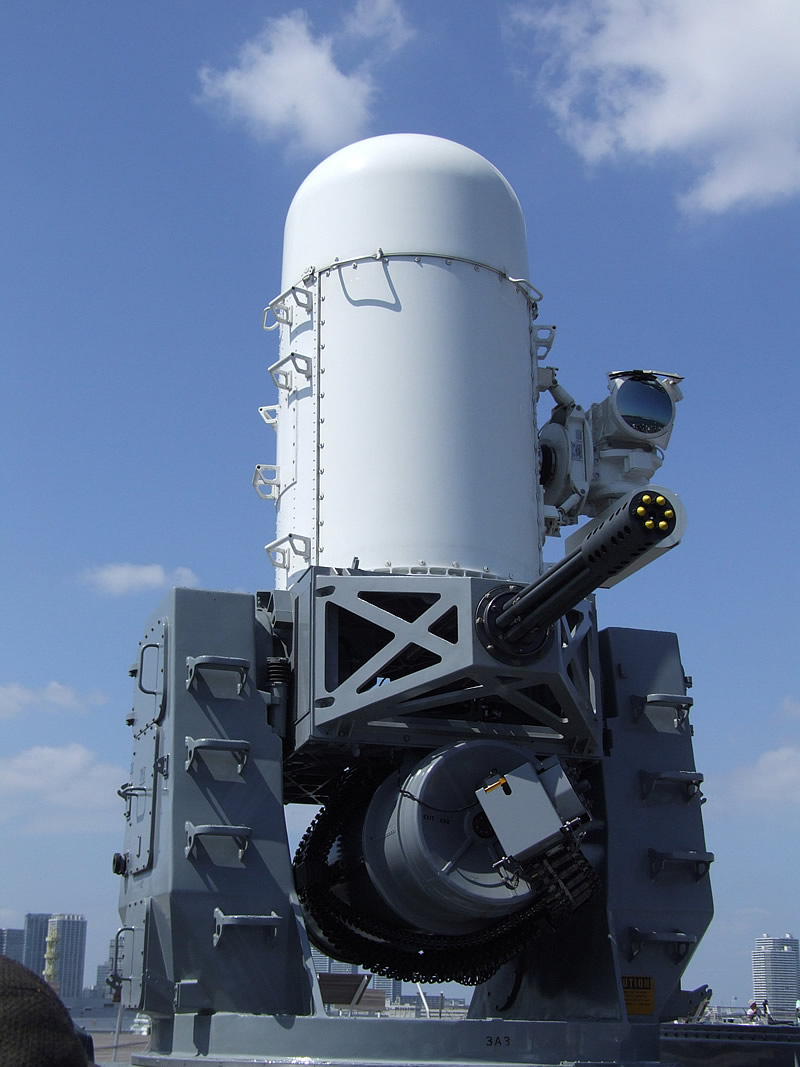

The Block 1B Baseline 2 upgrades improve optical and radar close-in detection, tracking and engagement, and extend Block 1A capabilities to include targets like helicopters, UAVs, and fast boats. Raytheon Systems Company in Tucson, AZ will be the contractor, but implementation will not require any contractor or US government support personnel.

April 11/11: Raytheon announces that it has delivered the 1st 20mm Phalanx Block 1B Close-In Weapon System to the Republic of Korea Navy. The direct commercial sale calls for the Phalanx Block 1B system to be installed on the lead FFX light frigate in 2011.

Other South Korean ships use Thales 30mm Goalkeeper system, but Phalanx’s bolt-on nature makes it a friendlier choice for smaller vessels. Raytheon expects to sign another contract with South Korea for an additional 5 Phalanx systems in the near future, representing the other 5 FFX ships.

Sept 29/10: A $35.2 million contract modification for engineering and technical services in support of the MK15 Phalanx close-in-weapon system. Work will be performed in Tucson, Z, and is expected to be complete by December 2011. $8,379,133 will expire at the end of the current fiscal year, on Sept 30/10 (N00024-07-C-5437).

May 19/10: A $22.9 million modification to a previously awarded contract (N00024-07-C-5437) for engineering and technical services in support of the MK15 Phalanx CIWS. Work will be performed in Tucson, AZ, and is expected to be complete by September 2010. Contract funds in the amount of $5.3 million will expire at the end of the current fiscal year.

March 31/10: A $204 million not-to-exceed contract for MK15 Phalanx Close-in Weapon System (CIWS) upgrades and conversions, system overhauls, and associated hardware.

Work will be performed in Louisville, KY (30%); Andover, MA (19%); Tucson, AZ (16%); Syracuse, NY (7%); Long Beach, CA (6%); Radford, VA (6%); Burlington, VT (6%); Palm Bay, FL (2%); Pittsburgh, PA (2%); Bloomington, MN (2%); Salt Lake City, UT (2%); Norcross, GA (1% ); and New Albany, IN (1%). Work is expected to be complete by September 2014, and $51.3 million will expire at the end of the current fiscal year. This contract was not competitively procured (N00024-10-C-5427).

March 24/10: A $5.8 million modification to a previously awarded contract (N00024-07-C-5437), exercising options for engineering and technical services in support of the MK15 Phalanx Close-In-Weapon System. Work will be performed in Tucson, AZ, and is expected to be complete by September 2010.

March 9/10: USS Abraham Lincoln [CVN-72] successfully completes a PACFIRE test firing of her 20mm Phalanx Close In Weapons System (CIWS), while exercising the boat’s combat systems. Upgrades to the close-in self-defense weapon system included transition from block 1 baseline 0, to block 1 baseline 2.

The main improvement uses compressed high pressure air instead of hydraulics to release the rounds faster, allowing the gun to fire 4,500 rounds per minute instead of 3,000. US Navy.

Sept 23/09: A $13.7 million modification to previously awarded contract (N00024-07-C-5437), exercising options for engineering and technical services in support of the MK15 Phalanx Close-In-Weapon System. Work will be performed in Tucson, AZ and is expected to be complete by September 2010. Contract funds in the amount of $1.3 million will expire at the end of the current fiscal year.

June 19/09: The Government of Canada awards Raytheon Canada Limited of Calgary, AB an 8-year, C$ 180 million contract to overhaul, repair and upgrade the Canadian Navy’s Phalanx Close-In Weapon Systems (CIWS). The Phalanx serves on Canada’s Halifax class frigates, its aged Iroquois/Tribal class “air defense” destroyers, and its Protecteur class supply ships. The upgrades will likely take the systems to Phalanx Block 1B status, which improves capabilities against fast boats, helicopters, and UAVs.

Canada’s Industrial and Regional Benefit (IRB) Policy applies to this procurement. It requires that Raytheon Canada Limited undertake “high quality and advanced-technology business activities in Canada valued at 100 per cent of the contract value.”

May 13/08: A $5.8 million contract modification for phalanx simulated infrared/visible engagement target simulator kits with shorting plugs in support of the Phalanx CIWS Program. Raytheon will work on the contract in England (80%); Louisville, KY (15%); and Tuscon, AZ (5%); and expects to complete work by January 2011. Contract funds will not expire at the end of the current fiscal year. The Naval Sea Systems Command manages the previously awarded contract (N00024-07-C-5444).

April 21/09: Despite news reports that Israel would order the land-based Mobile Centurion system, the Jerusalem Post quotes “senior defense officials” who say that a decision won’t be made until Israel can watch live tests in summer 2009. The report adds that Israel is interested in the system’s potential along the Gaza Strip border, but there are still several obstacles that must be overcome first.

One is its effectiveness against Kassam rockets and mortars, which will be answered by the live tests. The second obstacle is cost, given that each system covers 1.2 square km and costs about $25 million. That works well for protecting a base, but protecting a city like Sderot become far more costly. In a democracy, issues like noise levels are an obstacle that must be evaluated under environmental regulations, though that’s likely to be a minor hindrance at best. The final obstacles would involve American approval of the sale, which is very likely, and the willingness of American military customers to give up their own production slots, which is less certain. If they do not expedite delivery with production slot swaps, the required wait time might affect the rationale for choosing the Phalanx-based system over other options.

Jan 30/09: White Sands Missile Range in New Mexico state continues to test a solid-state laser version of the Phalanx weapons system. The laser has proven capable of “rapidly” penetrating armor plating even when not at full power, and the next step is to test the system on mortar rounds. US Army release.

The exact time required for burn-through or detonation of incoming rounds is a very important number.

Oct 8/08: Raytheon and Oshkosh unveil the “Mobile Centurion,” which mounts the Phalanx system on a hybrid-electric HEMTT A3 heavy truck. To make room, the truck’s normal load-handling system was removed, in favor of a fixed platform for the Phalanx. The ProPulse drive A3 model was picked because it has 120 kW of power to divide between the truck’s drive train and the Pahalnx as needed, which removes the need to tow a bulky generator.

The other benefit is air mobility. Instead of fitting just 1 current model Centurion/C-RAM trailer into a C-17 strategic transport plane, 3-4 Mobile Centurions could be fitted instead. Defense News.

FY 2008

Sept 22/08: A $31.3 million modification to previously awarded contract N00024-07-C-5437, exercising an option for engineering and technical services in support of the MK15 Phalanx CIWS.

Phalanx CIWS is currently installed on approximately 187 USN ships and is in use in 20 foreign navies. This modification combines support for the US Navy, US Army and the Governments of Egypt, Portugal and Australia under the Foreign Military Sales Program. Work will be performed in Tucson, AZ, and is expected to be complete by September 2009. Contract funds in the amount of $1.7 million will expire at the end of the current fiscal year.

Sept 18/08: A not-to-exceed $220.5 million modification to a previous contract for MK15 Phalanx Close-In-Weapon System Block 1B upgrades and conversions, system overhauls, and associated hardware (N00024-07-C-5444). Contract funds in the amount of $19.9 million will expire at the end of the current fiscal year.

Most Phalanx Block 1B conversions involve naval ships, due to the upgrade’s defensive value against small boats. The land-based C-RAM system is also based on Block 1B, however, and they will require system overhauls and spares of their own as part of their regular maintenance.

Work will be performed in Louisville, KY (30%); Andover, MA (19%); Tucson, AZ (16%); Syracuse, NY (7%); Long Beach, CA (6%); Radford, VA (6%); Burlington, VT (6%); Palm Bay, FL (2%); Pittsburg, PA (2%); Bloomington, MN (2%), Salt Lake City, UT (2%); Norcross, GA (1%); and New Albany, IN (1%), and is expected to be complete by September 2012.

May 23/08: A $14.3 million modification to previously awarded contract (N00024-07-C-5437) provides more incremental funding for engineering and technical services, bringing the contract’s current exercised value to $57.6 million. This modification combines purchases for the U.S. Army (45%); U.S. Navy (42%) and the Government of Pakistan, (13%) under the Foreign Military Sales Program. Work will be performed in Tucson, AZ and is expected to be completed by September 2008. The Naval Sea Systems Command in Washington Navy Yard, DC issued the contract.

May 16/08: New Zealand’s TV3 reports that the country’s 2 ANZAC Class frigates will upgrade their Phalanx guns to Block 1B status, as the first step in a larger overhaul and upgrade. See “NZ Looks to Upgrade ANZAC Frigates.”

May 12/08: A not-to-exceed $61.2 million modification to previously awarded contract (N00024-07-C-5444) for MK15 Phalanx Close-In-Weapon System (CIWS) ordnance alteration kits, spares, and associated hardware for Land-Based configurations to support the Global War on Terrorism.

Work will be performed in Louisville, KY (22%); Andover, MA (19%); Tucson, AZ (16%); Syracuse, NY (9%); Long Beach, CA (9%); Radford, VA (7%); Burlington, VT (7%); Palm Bay, FL (3%); Pittsburg, PA (2%); Bloomington, MN (2%); Salt Lake City, UT (2%); Norcross, GA (1%); and New Albany, IN (1%); and is expected to be complete by September 2010. Contract funds in the amount of $1.5 million will expire at the end of the current fiscal year.

Jan 22/08: An $18.7 million modification to previously awarded contract (N00024-07-C-5437) for engineering and technical services in support of the MK15 Phalanx Close-In-Weapon System. Work will be performed in Tucson, AZ and is expected to be complete by September 2008. Contract funds in the amount of $3.6 million will expire at the end of the current fiscal year.

“PHALANX CIWS is currently installed on approximately 187 USN ships and is in use in 20 foreign navies.”

Nov 9/07: Raytheon Co. in Tucson, AZ received a $225.1 million firm-fixed-price contract for MK 15 Phalanx Close-In Weapon Systems (CIWS) Block 1B Upgrade and Conversion equipment, plus U.S. Army Block 1B Land-based Phalanx Weapon System (LPWS) Upgrade and Conversion equipment, and U.S Army Block 1B LPWS’s and associated spares and support equipment. This effort also includes purchases for the Governments of Portugal (1.23%) and Australia (1.09%) under the Foreign Military Sales Program. A subsequent Raytheon release adds more details: they will overhaul and
upgrade 34 Phalanx CIWS systems for the U.S. Navy and 1 system for the Royal Australian Navy, and will build 12 Land-Based Phalanx Weapon Systems for the U.S. Army, while providing associated hardware to
all customers under the agreements.

Work will be performed in Louisville, KY (55.7%), Burlington, VT (12.4%), Palm Bay, FL (8%), Andover, MA (4.9%), Pittsburg, PA (4.8%), Carson, CA (4.1%), Tucson, AZ (3.4%), Brooklyn, NY (3.4%), Bloomington, MN (3.3%), and is expected to be complete by November 2010. Contract funds in the amount of $7.3 million will expire at the end of the current fiscal year. The contract was not competitively procured by the Naval Sea Systems Command in Washington Navy Yard, Washington DC (N00024-07-C-5444).

Oct 1/07: A $16.7 million firm-fixed-price modification under previously awarded contract (N00024-04-C-5460) for 7 Phalanx Close-In Weapon System (CIWS) Class A Overhauls. PHALANX CIWS is currently installed on approximately 187 USN ships and is in use in 20 foreign navies. Work will be performed in Louisville, KY and is expected to be complete in February 2011. All contract funds will expire at the end of the fiscal year.

FY 2007

Sept 27/07: Jane’s International Defence Review reports that Raytheon is planning to approach NATO with a strategy to lease or sell a number of its Centurion land-based Phalanx systems for deployment at fixed bases in Iraq and Afghanistan.

Sept 25/07: Alliant Techsystems Inc. (ATK) in Mesa, Ariz., USA, won an estimated $44.6 million firm-fixed-price contract for MK 244 Mod 0, linked armor-piercing discarding sabot (APDS) 20mm cartridges, electric-primed 20mm rounds designed to be fired by the M61A1 20mm gatling cannon mounted in the shipboard Phalanx CIWS. This cartridge is referred to as the Enhanced Lethality Cartridge, as it contains a heavier projectile and inflicts more damage to the target than the precursor to this round, the MK149 Mod 4.

Work will be performed in Independence, MO, and is expected to be complete by September 2010. Contract funds in the amount of $512,519 will expire at the end of the current fiscal year. This contract was competitively procured and advertised via the Internet, with 2 offers received [General Dynamics ATP was almost certainly the other bidder]. The US Naval Surface Warfare Center, Crane Division in Crane, Ind. issued the contract. (N00164-07-D-4285)

Sept 11/07: Jane’s reports from the British DSEi exhibition that Raytheon is working on a Phalanx variant that can fire lasers. What advantages would a laser system offer? Would it really be an advance over the current Phalanx system?

Aug 23/07: DRS Technologies, Inc. announced a $26 million contract, with an option for an additional $23 million contract, to produce, integrate, test and deliver Phalanx Thermal Imagers for the MK 15 Phalanx Close-In Weapon System (CIWS). The contract was awarded to DRS by the Missile Systems business of Raytheon in Louisville, KY. The imagers were developed by the company’s DRS Sensors & Targeting Systems unit – California Division in Cypress, CA, and DRS-produced work for this contract will be accomplished by the unit’s Optronics Division in Palm Bay, FL. DRS will start delivering the imagers immediately, with completion expected by July 2008.

DRS’s Phalanx Thermal Imagers incorporate 2nd-generation FLIR (Forward Looking Infra-Red) technology, similar to that used by the company in the Horizontal Technology Integration series of sighting system products being delivered to the U.S. Army and Marines for ground combat systems like the M2/M3 Bradley IFV and M1 Abrams tanks, LRAS3, et. al. The new systems will replace 1st generation FLIR technologies currently in use on MK15 Phalanx mounts.

May 25/07: Jane’s Defence Weekly reports that Britain will deploy a C-RAM system to protect UK forces in southern Iraq. Speaking at the Royal United Services Institute’s (RUSI’s) Air Power conference in London on May 17/07, Air Chief Marshal Sir Clive Loader, Commander-in-Chief of the RAF’s Air Command, disclosed that the Raytheon Land-based Phalanx Weapon System (LPWS) was being acquired “to protect the UK’s deployed bases in operational theaters.”

May 2/07: EDO Corporation announces a $15 million follow-on award for expanded support of the Army’s C-RAM (Counter Rocket, Artillery, and Mortar) system, which uses a land-based Phalanx weapon coupledd with self-destructing explosive bullets. The task order was effective April 1, 2007 and includes in-theater support.

EDO services have included testing and validation of the systems at test facilities and in the field, assistance in fielding systems, and logistics services to ensure their continued operation. These services are being provided in the U.S. and in support of nearly 20 locations in combat zones. EDO release

Feb 28/07: Raytheon announces a 5-year, $169.9 million Performance Based Logistics contract to manage the spare parts for the U.S. Navy’s Phalanx CIWS. More than 1,100 part numbers amounting to more than 30,000 individual Phalanx parts are warehoused in Louisville, KY, where, for a firm-fixed-price, Raytheon, in partnership with United Parcel Service Supply Chain Solutions, guarantees delivery of spares to drop points within an agreed-to time frame.

The distribution and management functions allow for worldwide delivery using the best commercial carrier available, while maintaining process control through in-transit tracking. This process also allows for retail and wholesale spares modeling, spares procurement and, perhaps most importantly, inventory management. The provisions and benefits of the contract apply to both the U. S. Navy and the 24 international navies that have Phalanx in their inventories. Frank Wyatt, vice president for Raytheon’s Naval Weapon Systems in Tucson, AZ:

“The partnership with United Parcel Service, developed through the previous Phalanx logistics contract, has greatly improved inventory accuracy. Currently, Phalanx inventory accuracy stands at 99.9 percent resulting in a substantial increase in supply availability and a reduced wait time…. Future cost savings and improved responsiveness can be anticipated by reducing parts demands through engineering redesign of selected high-demand, high-cost parts.”

Feb 8/07: Raytheon Missile Systems’ Louisville, KY facility has captured a prestigious Shingo Prize for Excellence in Manufacturing, marking the 4th consecutive year that Raytheon facilities have won. The Louisville facility manufactures the Phalanx CIWS and RAM/SeaRAM systems.

Jan 3/07: Northrop Grumman Mission Systems in Huntsville, AL received a delivery order amount of $29.9 million as part of a $144.5 million firm-fixed-price and cost-plus-fixed-fee contract for the Forward Area Air Defense Command and Control/ Counter-Rocket Artillery Mortar Systems (FAAD C2/ C-RAM) Integration contract. Work will be performed in Huntsville, AL and is expected to be complete by Sept. 28, 2009. This was a sole source contract initiated on Nov. 20, 2006 by the U.S. Army Aviation and Missile Command in Redstone Arsenal, AL (W31P4Q-06-D-0029).

Northrop Grumman’s Jan 17/07 release describes it as “a contract valued at up to $71 million to continue their support in system engineering, integration, and installation for…C-RAM…. In addition to continuing to support systems engineering, integration and installation of C-RAM capabilities, the indefinite delivery/indefinite quantity (IDIQ) C-RAM installation and support contract includes logistics and training support.”

Sept 29/06: Northrop Grumman Mission Systems in Huntsville, AL received a delivery order amount of $28.6 million as part of a $670 million firm-fixed-price and cost-plus-fixed-fee contract for Forward Air Defense Command and Control/ Counter-Rocket Artillery and Mortar Systems (C-RAM) Integration. Work will be performed in Huntsville, AL and is expected to be complete by Sept. 28, 2008. This was a sole source contract initiated on May 4, 2006 by The U.S. Army Aviation and Missile Command in Redstone Arsenal, AL (W31P4Q-06-D-0029).

Under a $38 million contract awarded in October 2005, Northrop Grumman assisted in the integration, deployment, and installation of the C-RAM command and control systems architecture; assisted in integrating the command and control with target acquisition and tracking radars, warning, and response subsystems; and trained soldiers to operate and support the “system of systems.”

FY 2006

Sept 13/06: A $369.1 million firm-fixed-price modification under previously awarded contract N00024-04-C-5460 for Phalanx CIWS and associated spares for FY 2006 US Navy (51%) and US Army (35%) purchases, and the Governments of Pakistan (12.8%) and Australia (1.2%) under the foreign military sales requirements. Work will be performed in Louisville, KY and is expected to be complete December 2009. Contract funds in the amount of $7.3 million will expire at the end of the current fiscal year.

Aug 9/06: A $6.9 million firm-fixed-price modification under previously awarded contract (N00024-04-C-5460) for land-based Phalanx weapon system ancillary equipment. This is the land-based configuration for the US Army’s counter-rocket, artillery, mortar program. Work will be performed in Louisville, KY and is expected to be complete by April 2007.

Feb 7/06: Raytheon Missile Systems in Tucson, AZ received a $169.9 million firm-fixed-price requirements contract for performance-based logistics in support of the Phalanx CIWS.

This contract combines procurements between the US Navy (74.79%); US Coast Guard (4.6%); and the Governments of Australia (5%); Israel (5%); New Zealand (5%); Japan (1%); United Kingdom (1%); Canada (1%); Taiwan (1%); Poland (1%); Bahrain (0.4%); and Saudi Arabia (0.21%) under the Foreign Military Sales Program. Work will be performed in Louisville, KY (90%), and Tucson, AZ (10%), and is expected to be complete by April 2011. This contract was not competitively procured by the Naval Inventory Control Point in Mechanicsburg, PA (N00104-06-D-L007).

January 2006: The British Defence Logistics Organization’s (DLO) Maritime Gunnery and Missile Systems (MGMS) Integrated Project Team signs a 10-year support, maintenance and availability contract with DML, with incentives to increase the number of days the guns are available and fit for use. On October 31, 2006, the DLO noted that the target time each Phalanx spends having operational defects fixed was 1.56 days per operational mount, but DML was already achieving 1.24 days. As of October 2006, there were 36 Phalanx guns in service on Royal Navy Ships and Royal Fleet Auxiliaries; an upgrade of these units to Mk 15 Phalanx 1B status is slated to begin entering service by May 2008.

Oct 24/05: Northrop Grumman announces that the U.S. Army has selected them the prime contractor for the Counter-Rocket, Artillery, Mortar (C-RAM) Integration and Fielding contract. Northrop Grumman’s Mission Systems sector is developing a systems architecture and integrating the C-RAM target acquisition, fire control, warning and engagement subsystems. Under a $38 million contract, Northrop Grumman will first deploy a mortar-attack warning capability and install that capability at 8 forward operating bases in Iraq. Northrop Grumman Mission Systems will also train soldiers to use the system and integrate an intercept subsystem as it is fielded. Northrop Grumman release | DID article.

FY 2005

May 16/05: A $45 million not-to-exceed, firm-fixed-price modification to previously awarded contract (N00024-04-C-5460) for Block 1B Upgrade and Conversion performance enhancement equipment for United States and Portuguese Navy Phalanx Close-In Weapon Systems (CIWS). This contract combines purchases for the U.S. Navy (31%) and the government of Portugal (69%) under the Foreign Military Sales program: 3 upgrade and conversions for the U.S. Navy, and 3 Phalanx MK-15 CIWS and ancillary hardware are planned in support of Portugal requirements. Work will be performed in Louisville, KY and is expected to be complete by December 2007.

March 24/05: A $5.3 million firm-fixed-price contract modification to previously awarded contract N00024-04-C-5460 for production of 99 sets of Reliability and Maintainability Spares in support of the MK 15 Phalanx Close In Weapon System (CIWS) program. Work will be performed in Tucson, AZ (10%) and Louisville, KY (90%), and is expected to be complete by July 2007.

March 3/05: A not to exceed $129 million firm fixed price modification to previously awarded contract N00024-04-C-5460 for the Phalanx Close In Weapon System (CIWS). The contract includes Block 1B upgrades, overhauls, parts and support equipment, and other ancillary equipment. This equipment will be installed aboard several Arleigh Burke Class Destroyers (DDGs 107, 108, 109, 110, 111 & 112) and backfit upon various classes of ships. Additionally, 2 mounts will be provided to the United States Army. Work will be performed in Louisville, KY (90%) and Tucson, AZ (10%), and is expected to be complete by May 2009.

Dec 8/04: Canada exercised a contract option, engaging engage Raytheon Canada to repair, overhaul and upgrade its 16 Phalanx Close in Weapon Systems (CIWS). The contract lasts to 2009 and will cost at least C$ 82.5 million (about $68 million).

The original multi-million dollar contract was signed between Raytheon Canada and Canada’s Department of Public Works and Services in 2003. Under that contract, Raytheon Canada was to provide total life-cycle support for Canada’s 21 Phalanx CIWS systems, including fleet repair work, field service support, overhauls, upgrades, overhaul support material and engineering services.

The new contract extends Raytheon’s service to the Royal Canadian Navy to 2009, and the new new C$ 44.6 million modification means the contract is now valued at in excess of $82.5 million. Work, including upgrade to the Mk 15 Phalanx 1B configuration, will be performed in Calgary, Alberta, at Raytheon Canada’s Naval Systems Support (NSS) facility.
