RQ-4 Global Hawk UAVs

May 17/24: The 348th Reconnaissance Squadron at Grand Forks Air Force Base (AFB) has successfully extended the operational range of the unmanned RQ-4 Global Hawk aircraft, achieving a record-breaking flight time of 34.8 hours. This accomplishment surpasses both the previous unit record of 34.4 hours and the manufacturer’s record of 30 hours and 24 minutes. This accomplishment wasn’t the result of a new aircraft or advanced technology. Instead, credit goes to innovative tactics, techniques, and procedures (TTPs) developed by Maj. Ryan Blakeney and his team. Over six months, they meticulously analyzed data to understand how factors like weather patterns, wind currents, and even the paint on the aircraft affected fuel consumption.









For more on this and other stories, please consider purchasing a membership.
If you are already a subscriber, login to your account.

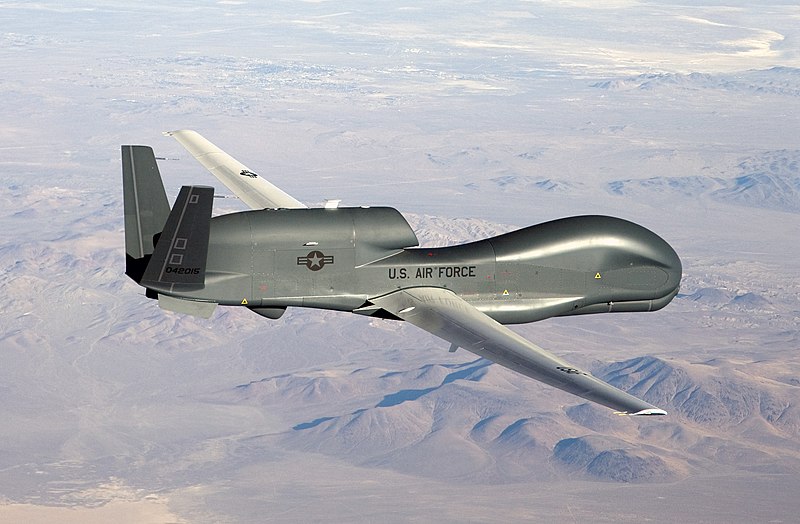

RQ-4A Global Hawk (click to view full) Northrop Grumman’s RQ-4 Global Hawk UAV has established a dominant position in the High Altitude/ Long Endurance UAV market. While they are not cheap, they are uniquely capable. During Operation Iraqi Freedom (OIF), the system flew only 5% of the US Air Force’s high altitude reconnaissance sorties, but accounted for more than 55% of the time-sensitive targeting imagery generated to support strike missions. The RQ-4 Global Hawk was also a leading contender in the Broad Area Maritime Surveillance (BAMS) UAV competition, and eventually won. The Global Hawk Maritime Demonstration Program (GHM-D or BAMS-D) aims to use the proven RQ-4 Global Hawk airframe as a test bed for operational concepts and technologies that will eventually find their way into BAMS, and contribute valuable understanding to the new field of maritime surveillance with high-flying UAVs. It’s not just a test program, however, as its remaining drones also deploy to assist the fleet in active operations. Contracts and Key Events [youtube:v=Buqo-B61mhg] BAMS-D to Pax River click for video All contracts are managed by The Naval Air Systems Command in Patuxent River, MD. The US military lists Northrop Grumman Corp. Integrated Systems, Western Region in San Diego, […]

RQ-4 Global Hawk High Over Seashore

RQ-4A Global Hawk
(click to view full)

Northrop Grumman’s RQ-4 Global Hawk UAV has established a dominant position in the High Altitude/ Long Endurance UAV market. While they are not cheap, they are uniquely capable. During Operation Iraqi Freedom (OIF), the system flew only 5% of the US Air Force’s high altitude reconnaissance sorties, but accounted for more than 55% of the time-sensitive targeting imagery generated to support strike missions. The RQ-4 Global Hawk was also a leading contender in the Broad Area Maritime Surveillance (BAMS) UAV competition, and eventually won.

The Global Hawk Maritime Demonstration Program (GHM-D or BAMS-D) aims to use the proven RQ-4 Global Hawk airframe as a test bed for operational concepts and technologies that will eventually find their way into BAMS, and contribute valuable understanding to the new field of maritime surveillance with high-flying UAVs. It’s not just a test program, however, as its remaining drones also deploy to assist the fleet in active operations.

Contracts and Key Events

[youtube:v=Buqo-B61mhg]

BAMS-D to Pax River
click for video

All contracts are managed by The Naval Air Systems Command in Patuxent River, MD. The US military lists Northrop Grumman Corp. Integrated Systems, Western Region in San Diego, CA as the contractor, which is technically true. While that was the original contract, NGC Integrated Systems was combined with NGC Space Technology to form Northrop Grumman Aerospace Systems in January, 2009.

FY 2015 – 2024

Increasing ops tempo.

May 17/24: The 348th Reconnaissance Squadron at Grand Forks Air Force Base (AFB) has successfully extended the operational range of the unmanned RQ-4 Global Hawk aircraft, achieving a record-breaking flight time of 34.8 hours. This accomplishment surpasses both the previous unit record of 34.4 hours and the manufacturer’s record of 30 hours and 24 minutes. This accomplishment wasn’t the result of a new aircraft or advanced technology. Instead, credit goes to innovative tactics, techniques, and procedures (TTPs) developed by Maj. Ryan Blakeney and his team. Over six months, they meticulously analyzed data to understand how factors like weather patterns, wind currents, and even the paint on the aircraft affected fuel consumption.

April 30/24: Northrop Grumman won a $387.5 million definitized contract action for Global Hawk (RQ-4) aircraft sustainment. The contract provides for contractor logistics support services. The locations of performance are Sacheon Air Base, Republic of Korea; Osan Air Base, Republic of Korea; Misawa Air Base, Japan; Naval Air Station Sigonella, Italy; and San Diego, California; and is expected to be completed by April 30, 2025. This contract involves Foreign Military Sales to the Republic of Korea, Japan Ministry of Defense, and the North Atlantic Treaty Organization. This contract is a sole source acquisition. The Air Force Life Cycle Management Center, Wright-Patterson Air Force Base, Ohio, is the contracting activity.

January 16/24: Northrop Grumman won a $23 million modification for Global Hawk (RQ-4) aircraft sustainment. The contract modification is for the purchase of replenishment spares for operational use and to support depot repair. This modification also provides an option for procurement of an additional quantity of spares. The modification brings the total cumulative face value of the contract to $164,506,728. Work will be performed in Japan; and Sierra Vista, Arizona, and is expected to be completed by January 31, 2029.

October 17/22: BAMS-D The last three remaining RQ-4A BAMS-D unmanned air vehicles that belonged to the US Navy have been transferred to NASA’s Armstrong Flight Research Center. The ground control equipment and non-payload spares will be transferred as well. The sailing branch had acquired five BAMS-Ds and one was lost in a crash in 2012 while another was shot down by Iran in 2019. NASA will operate the aircraft on behalf of the Pentagon’s Test Resource Management Center.

June 28/22: Sky Range Program Five RQ-4 Block 30 unmanned air vehicles assigned to the 319th Reconnaissance Wing at Grand Forks Air Force Base have been transferred to Northrop Grumman for the Sky Range program. The US Air Force says a total of 20 Global Hawks are to be transferred and four Block 20 aircraft were transferred last year.

April 6/22: BAMS-D Northrop Grumman won a $65.3 million contract modification, which exercises options to provide continued operation, logistics and sustainment engineering support, to include training, supply chain and spares management for Global Hawk peculiar items, peculiar support equipment, and technical publications in support of ensuring the Broad Area Maritime Surveillance Demonstrator (BAMS-D) aircraft are mission-capable for intelligence, surveillance and reconnaissance missions. Work will take place in Maryland, California and is expected to be completed in April 2023.

March 15/22: Japan A Global Hawk acquired by Japan has arrived home at Misawa Air Base on the morning of March 12. It is the first of three unmanned aerial vehicles ordered by Japan. The Global Hawk’s mission is to provide a broad spectrum of intelligence, surveillance and reconnaissance collection capabilities to support joint combatant forces in worldwide peacetime, contingency and crisis operations. The system can be used to cooperatively address common regional challenges such as humanitarian assistance and disaster relief, piracy, terrorism and other issues affecting the region.

November 3/21: South Korea Space Dynamics won a $29 million contract for the support and sustainment of the tasking, collection, processing, exploitation and dissemination of data for the Republic of Korea Global Hawk. Seoul ordered four RQ-4 Global Hawks from US company Northrop Grumman for 965.9 billion won ($812 million) in 2014. First aircraft delivered to the South Korean military in December 2019, and the last one in October 2020. Work will take place at Osan Air Base, Republic of Kore. Estimate completion date is November 30, 2024.

September 22/21: MSI The US Air Force has started flying operational missions with the Collins Aerospace’s MS-177 multi-spectral imaging (MSI) sensor on the RQ-4B Block 30 aircraft. The MS-177 is derived from the Senior Year Electro-optical Reconnaissance System (SYERS)-2C flown on the U-2.

September 3/21: FMS Northrop Grumman won a $40 million contract modification for the Japan and Republic of Korea Global Hawk Program. It is a cofounded joint Foreign Military Sales (FMS) program. The contract provides for the co-development, test and integration of the Mode 5 software for the Republic of Korea and Japan Global Hawk fleets. he RQ-4 Global Hawk is a high-altitude, long-endurance, remotely piloted aircraft with an integrated sensor suite that provides global all-weather, day or night intelligence, surveillance and reconnaissance (ISR) capability. Work will take place in California, Japan and Korea. Estimated completion date is July 31, 2023.



June 29/21: Japan Northrop Grumman announced the first flight of Japan’s second RQ-4B Global Hawk high-altitude, remotely-piloted, surveillance aircraft. Global Hawk is the only high-altitude, long-endurance unmanned air vehicle (UAV) to deliver near real-time on demand data around the clock. Once fielded, Global Hawk will integrate with other Japanese intelligence assets, including ground-based command and control units. The capability will provide solutions to monitor and deter regional threats.

June 14/21: Training Northrop Grumman won a $53.7 million deal to provide continuing operator, maintenance, logistics and sustainment engineering support, to include training, supply chain and spares management for peculiar items, peculiar support equipment, and technical publications in support of the RQ-4A Global Hawk Broad Area Maritime Surveillance – Demonstrator (BAMS-D) aircraft being mission-capable for intelligence, surveillance and reconnaissance missions for the Navy. Work will take place in Maryland, California, Indiana, Virginia and Utah. Estimated completion date is in April 2022.

May 4/21: Japan Northrop Grumman Defense Services won a $58.6 million deal for the Japan Global Hawk program. This contract provides for contractor logistics support services to include, but not limited to, in-country personnel, mission planning, contractor field teams, contractor inventory control, reach back support and software maintenance. Work will take place in Misawa Air Base, Japan. Estimated completion will take place in September 30, 2022.

April 19/21: Japan Japan’s first RQ-4B Global Hawk made its maiden flight on April 15, 2021 from Palmdale, California. “The unarmed RQ-4B Global Hawk will provide Japan with on-demand intelligence, surveillance and reconnaissance information supporting the Japan Air Self-Defense Force’s missions of protecting borders, monitoring threats and providing humanitarian assistance in times of need,” said Jane Bishop, vice president and general manager, autonomous systems, Northrop Grumman, in a press release. “This successful first flight is a significant milestone in delivering Global Hawk to our Japanese allies.”

March 19/21: Downloading The US Marine Corps is now able to download data from an airborne RQ-4 unmanned aerial vehicle after verifying the capability during a field exercise held at Bouge, North Carolina last month. The 2nd Intelligence Battalion of the II Marine Expeditionary Force overcame a hardware failure to obtain the information in a communications denied or degraded environment.

January 26/21: BACN Northrop Grumman won a $3.6 billion deal for Battlefield Airborne Communications Node (BACN) operations, sustainment and support. The contract provides for research, development, test, and evaluation, integration and operations and sustainment for existing and future payloads contained in or connected to the BACN system and associated ground stations or controls, ancillary equipment, support equipment and system integration laboratories.  BACN is a US Air Force airborne communications relay and gateway system housed in the unmanned RQ-4 Global Hawk, another Northrop Grumman product, to receive and distribute battlefield communications. It is designed to increase the range of voice communications in mountainous terrain by relaying the signal over an extended distance. It can also act as a bridge between frequencies, enabling a convoy commander on a frequency-limited radio to talk with a supporting close-air-support asset on a different frequency. Work will take place in San Diego, California. Expected completion date is January 24, 2026.

December 31/20: Japan Northrop Grumman won a $37.7 million deal for the Japan Global Hawk Program. The deal provides for the procurement of initial spare parts to include modifications to the system engineering and program management tasks required to execute, manage, control, and report on all program activities. The Northrop Grumman RQ-4 Global Hawk is an unmanned high-altitude long-endurance surveillance aircraft that first flew in February 1998 and has been in active service with the US military since 2001.

December 28/20: Repair Services Northrop Grumman Aerospace won a $53.7 million deal for the RQ-4B Global Hawk. The contract provides for repair services for “common items” for both the RQ-4 GH and MQ-4C Triton.  It will support reparable national stock numbers (NSNs) which encompass the air vehicle, multiple sensor packages, mission control element and launch and recovery element.  In addition, this effort includes support engineering services covered under the Engineering Delegation Authority (namely Diminishing Manufacturing Sources and Material Shortages projects) for NSNs transferred to and under the management of the 407th Supply Chain Management Squadron. Northrop Grumman successfully completed the first flight for the Global Hawk Ground Station Modernization Program at Edwards Air Force Base, Calif. earlier this month. The modernized Global Hawk ground stations will revolutionize the operator experience with new cockpit displays, the ability to fly all Global Hawk variants without software or configuration changes, simpler maintenance interfaces, and improved situational awareness and environmental conditions for pilots and sensor operators. Work under the new contract will take place in California, Virginia, New Mexico, Missouri, Ohio, Canada, New Jersey, Indiana, Massachusetts, New York and Maryland. The basic ordering period and six one year ordering periods are expected to begin January 1, 2021, and end on December 31, 2028.

November 27/20: Modernization Northrop Grumman Systems won a $4.8 billion deal for Global Hawk development, modernization, retrofit and sustainment activities for all Air Force Global Hawk variants. The contract provides for management, including program, business and technical areas; engineering efforts, including configuration management, data management, reliability, availability and maintainability, and related areas of concern such as technical refresh, diminishing manufacturing sources, etc.; studies and analyses; design, development, integration, test and evaluation; contract/production line closeout/shutdown; training; sparing; overseas contingency operations support; fielding; cyber security/information assurance; interoperability support; facilities modifications/renovation; integrated logistics support; requirements management specification management; and quality assurance. The USAF has 31 Block 20, 30, and 40 Global Hawk HALE UAVs in its inventory. The RQ-4 Global Hawk is a high-altitude, long-endurance unmanned aircraft system with an integrated sensor suite that provides intelligence, surveillance and reconnaissance, or ISR, capability worldwide. Global Hawk’s mission is to provide a broad spectrum of ISR collection capability to support joint combatant forces in worldwide peacetime, contingency and wartime operations. Work will take place in San Diego, California. Estimated completion date is September 30, 2030.

November 16/20: RQ-4D For the NATO NATO received the fifth and last NATO Alliance Ground Surveillance aircraft in its fleet at the Main Operating Base in Sigonella, Italy, this week. The RQ-4D aircraft took off from Palmdale Air Force base in California Wednesday night and landed at Sigonella Thursday afternoon. The drone took nearly 20 hours to reach its home. The arrival of the RQ-4D aircraft at its home base in Europe represents a new milestone in the NATO AGS Programme, completing the NATO AGS fleet. Following the arrival of RQ-4D Phoenix 5, the NATO Alliance Ground Surveillance Management Agency and the Italian Airworthiness Authorities will continue to wrap up the required documentation and hand-over the system to the NATO AGS Force in the coming months.

November 3/20: South Korea Northrop Grumman won a $158.4 million contract action to help sustain the Global Hawk RQ-4 aircraft for South Korea. Northrop will provide contractor logistics services and RQ-4 spares as part of the sole-sourced award. The Global Hawk is a high-altitude, remotely-piloted, surveillance aircraft. The RQ-4 UAS has a capacity of more than 30 hours and is designed to gather imagery in real-time and in all weather conditions for intelligence, surveillance and reconnaissance operations. The unmanned platform has been deployed for Air Force missions since 2001. Work will take place in the Republic of Korea and Sierra Vista, Arizona. Estimated completion date is February 29, 2024.

October 22/20: No Nickname Bucking the trend, the Republic of Korea Air Force (RoKAF) will not be assigning a local nickname for the RQ-4. Instead, the unmanned air vehicle will still be called Global Hawk. The service had given the nickname “Freedom Knight” to the F-35A last year. Separately, Korea Herald reports that the Tasking, Collection, Processing, Exploitation, and Dissemination (TCPED) system for the RQ-4 is expected to be delivered to the country next month. The “due to prolonged negotiations between the US government and its manufacturer, along with the COVID-19 situation,” the Defense Acquisition Program Administration (DAPA) mentioned in a report to the National Assembly.

October 16/20: South Korea South Korea has taken delivery of its fourth and final RQ-4 Global Hawk unmanned air vehicle last month. This was disclosed by Kim Jin-pyo, a member of the Democratic Party of Korea. The first UAV was reported to have arrived at Sacheon Air Base in South Gyeongsang Province on December 23, 2019. A few months later, on April 19, Harry Harris, the US ambassador to South Korea, released an image showing the second UAV alongside the first one in a hangar at an undisclosed location. The RoKAF is believed to be operating the platforms from Sacheon Air Base as part of a recently established reconnaissance squadron.

August 20/20: Cancellation From Japan? The Japanese government may reportedly cancel the acquisition of three RQ-4 Global Hawk surveillance drones from the United States, slated for procurement through Washington’s Foreign Military Sales (FMS) system. The government is apparently reconsidering the plan and will soon make a decision, which could be the cancellation of the purchase, according to informed sources. It is the second time for Japan to review a procurement deal under Washington’s Foreign Military Sales program, following the recent decision to scrap the plan to deploy the US-made Aegis Ashore land-based missile defense system.

June 24/20: Korea South Korea will start operating its three RQ-4 unmanned air vehicles from as early as next month, Yonhap reports. “We are going to field Global Hawk for actual operations within the second half of this year. They will be put into service after the one remaining unit arrives here, which will take place soon,” an anonymous source was quoted as saying. South Korea was cleared to buy 4 RQ-4s in 2013. The first aircraft was delivered in December 2019. So far, it has been making local training flights.

June 2/20: Sustainment For Korea Northrop Grumman won a $12.6 million contract modification for initial aircraft spares to assist in sustainment purposes of the Global Hawk in the Republic of Korea. The RQ-4 Global Hawk is a high-altitude, long-endurance unmanned aircraft system with an integrated sensor suite that provides intelligence, surveillance and reconnaissance, or ISR, capability worldwide. Global Hawk’s mission is to provide a broad spectrum of ISR collection capability to support joint combatant forces in worldwide peacetime, contingency and wartime operations. The South Korean Air Force had receives its second Global Hawk high-altitude unmanned reconnaissance drone in April. Work will take place in San Diego, California. Estimated completion date is May 30, 2022.

April 6/20: Initial Operations South Korea is working hard to prepare its RQ-4fleet for initial operations this year. An anonymous military source told Yonhap that work is progressing smoothly. South Korea brought in the RQ-4 Block 30 Global Hawk Remotely Piloted Aircraft (RPA) in December and has been working to put it in operation. A reconnaissance squadron was established in charge of the asset that month. Under a 2011 deal with the United States, South Korea purchased four units. The remaining three had been expected to arrive here in the first half of this year, but the schedule is not fixed, according to officials.

December 27/19: South Korea The first RQ-4B ordered by South Korea has been delivered to Sacheon airbase on December 23. The RQ-4 Block 30 Global Hawk Remotely Piloted Aircraft (RPA) arrived at an Air Force base in Sacheon on the southern tip of the Korean Peninsula earlier in the day. It is the first of a total of four units that South Korea is purchasing from the United States under a 2011 deal. The three others will arrive around the first half of next year, though the schedule is subject to change. The exact timing of their official deployment for operations is not decided, and will not be officially disclosed to the public, an Air Force officer said. As one of the most advanced intelligence-gathering platforms in the world, the long-endurance unmanned aerial vehicle, manufactured by US defense company Northrop Grumman, is capable of performing reconnaissance missions for around 40 hours at a time at an altitude of roughly 20 kilometers.

August 8/19: South Korea Koreatimes reports that South Korea will take delivery of the RQ-4 Unmanned Air Vehicles that it ordered back in 2014 next month. Just recently, the US Defense Security Cooperation Agency (DSCA) approved a support package to South Korea for those RQ-4s. The RQ-4 Global Hawk is a high-altitude, long-endurance Unmanned Aircraft System with an integrated sensor suite that provides intelligence, surveillance and reconnaissance, or ISR, capability worldwide. Global Hawk’s mission is to provide a broad spectrum of ISR collection capability to support joint combatant forces in worldwide peacetime, contingency and wartime operations. The Global Hawk complements manned and space reconnaissance systems by providing persistent near-real-time coverage using imagery intelligence, or IMINT, and signals intelligence, or SIGINT, sensors. South Korea and the US agreed on the deal in 2014. The agreement included four RQ-4B Global Hawk aircraft, two spare engines and ground control equipment. The price is estimated at around $222.7 million

June 24/19: US confirms Shoot-Down by Iran The US confirmed that Iran shot down an American Navy RQ-4A Global Hawk. While Iran claimed the drone had violated Iranian airspace, the US insists that the aircraft had been over international waters at the time. The attack comes in a time of tensions between Iran and the US. Last week, the US announced it wants to send 1,000 additional troops to the region. It has already sent an aircraft carrier strike group and B-52 bombers. Jane’s reports that shooting down the Global Hawk might have confirmed that Iran has developed highly capable surface-to-air missile (SAM) systems in recent years. Iran credited a 3 Khordad, one of several new indigenous surface-to-air missile (SAM) systems, with the shootdown. There are no fixed SAM sites within range of the shootdown location, affirming the claim that a mobile system like the 3 Khordad was used in the engagement.

January 29/19: System Support for North Korea The Air Force contracted Space Dynamics Laboratory $18.3 million to support the Republic of Korea’s Global Hawk program. The deal includes tasking, collecting, processing, exploitation, and dissemination (TCPED) capability. The contract provides for the procurement of the TCPED system, spares and support equipment, sustainment support, and system familiarization. The Global Hawk is an unmanned surveillance aircraft by Northrop Grumman. In November 2018 Northrop was contracted to provide contractor logistics support to the Republic of Korea’s Global Hawks. Space Dynamics Laboratory is a nonprofit unit of the Utah State University Research Foundation. It is responsible for the design, fabrications, and operation of sensors on over 400 payloads ranging from aircraft to rocket-borne experiments to space shuttle experiments and satellite-based sensor systems. Work under the current deal will be performed at North Logan, Utah, and is expected to be completed by May 2020. The contract involves Foreign Military Sales to the Republic of Korea.

November 21/18: Japan buys Tokyo is ordering the RQ-4 Global Hawk high-altitude long-endurance (HALE) unmanned aerial vehicles (UAVs) from Northrop Grumman. The $489 million contract includes the delivery of three RQ-4 Block 30i air vehicles, two ground control elements, spares, support equipment and other program activities. Each UAV will contain an enhanced integrated sensor suite payload (EEIS). Developed by Raytheon, the EISS comprises an electro-optical/infrared (EO/IR) sensor, synthetic aperture radar imagery, and ground moving target indicator elements. The Global Hawk’s mission is to provide a broad spectrum of ISR collection capability to support joint combatant forces in worldwide peacetime, contingency and wartime operations. The Global Hawk provides persistent near-real-time coverage using imagery intelligence (IMINT), signals intelligence (SIGINT) and moving target indicator (MTI) sensors. Work will be performed at Northrop Grumman’s factory in San Diego and will run through September 2022.

July 6/18: Engines Rolls-Royce Corp. is being tapped for services in support of the AE 3007H engine. The firm-fixed price, indefinite-delivery/indefinite-quantity contract is valued at $420 million and provides for provides for maintenance, repair and overhaul of the engine. The AE 3007H (F137) engine is used to power Northrop Grumman’s RQ-4 Global Hawk UAS. In typical operations the Global Hawk has a cruise speed of 357 mph, a range of 8,700 mi, a service ceiling of 60,000 feet and may fly for up to 28 hours. The turbofan engine produces a net thrust of 7,050 lb. Work will be performed in Montreal, Canada; and at Tinker Air Force Base, Oklahoma, and is expected to be completed by June, 2024.

October 23/17: The Republic of Korea Air Force is planning to set up a new airborne intelligence, surveillance and reconnaissance (ISR) unit in December, specifically tasked with analysing the data collected from its new RQ-4 Global Hawk assets. A total of four Global Hawks are on order, with the first batch of two scheduled to arrive next year followed by the final two in 2019. The new unit will work alongside Seoul’s existing ISR battalion which includes a fleet of four Boeing 737-700 Peace Eye airborne early warning & control (AEW&C) system aircraft.

October 10/17: Northrop Grumman has been awarded a $130 million USAF contract to support Japan’s Global Hawk program. The order calls for the sourcing of long lead material to initiate the program for three RQ-4 Global Hawk block 30 (I) UAVs, in addition to two ground control elements, enhanced integrated sensor suite, spares, and a site survey. Work will be performed in San Diego, California, and is expected to be complete by July 27, 2018. In November 2015, Japan was cleared by the US State Department for the $1.2 billion sale of Global Hawk aircraft. Between May and October this year, the USAF had five RQ-4 Global Hawks stationed at Yokota Air Base in Japan to provide a base from which the platform can be reliably operated during the summer. Tensions in the region have been high amid North Korean ballistic missile and nuclear testing, which has seen test rockets fly over Japanese airspace.

August 29/17: Northrop Grumman said it will upgrade its RQ-4 Global Hawk UAV to meet the US Missile Defense Agency (MDA) requirement for a high-altitude, long-endurance (HALE) UAV, equipped with a high-energy laser that could destroy an intercontinental ballistic missile (ICBM) in the boost phase. While the MDA’s HALE program requires a minimum altitude of 63,000ft and a payload capacity between 5,000-12,500lb (2,270-5,670kg), the RQ-4 currently can reach 60,000ft and can carry a 3,000lb payload, according to US Air Force specifications. Northrop officials acknowledge the 3,000lb limit but have also said the current configuration could reach a maximum payload of 4,000lb. The company is also looking to reduce the weight of the aircraft by removing some heavy equipment that has remained on the platform since its development in the late 1990s, rather than looking to redesign it.

August 9/17: Raytheon has been awarded a $25.9 million US Air Force contract for modifications and retrofitting of sensors on the RQ-4 Global Hawk Block 30 UAV. Under the terms of the deal, work to be provided by the firm includes engineering for upgrades to the Enhanced Integrated Sensor Suite and retrofitting of the Enhanced Electro-Optical Receiving Unit on Global Hawks. The work will be performed in El Segundo, Calif., with an expected completion date of Feb. 4, 2019.

April 13/17: UTC Aerospace Systems’ MS-177 sensor has been successfully tested by Northrop Grumman onboard an RQ-4 Global Hawk UAV. The sensor is a high-resolution imaging device designed to improve capabilities for the Global Hawk in addition to several other surveillance platforms operated by the USAF, with UTC adding that the sensor will provide warfighters with the most advanced reconnaissance tools to date. Demonstrations with the sensor began in early March and Northrop will continue through the first half of 2017. Prior to being integrated on such a high altitude platform, the MS-177 has been equipped on the E-8C JSTARS aircraft.

March 8/17: Northrop Grumman’s RQ-4B Global Hawk UAV has commenced flight testing with the UTC Aerospace Systems MS-177 long-range multispectral sensor. The February 8 maiden flight with the MS-177 is the initial step in a six-month integration, test and qualification phase that will mostly take place at Edwards AFB, close to Northrop’s facility in Palmdale, California, where the aircraft is built. Northrop’s RQ-4 is the second UAV to demonstrate compatibility with the sensor after General Atomics’ “Predator C” Avenger, which performed a series of flight tests in January and February 2016. Integration with the MS-177 will enable the Global Hawk to establish compliance with the USAF’s new Open Mission System standards, which allow different sensors and payloads to be rapidly installed and qualified.

August 30/16: RQ-4 Global Hawk UAVs operated by the USAF are to get an upgraded control system following a $104 million contract awarded to Raytheon. Under the deal, new payload controls for UAV will be incorporated, and the GCSs will be moved from temporary building to permanent structures at Beale AFB in California and Grand Forks AFB in North Dakota. Raytheon added that a new open architecture will be introduced, which will introduce scalability and the operation of new payloads and platforms, following which the old system will be gradually phased out.

July 22/16: It’s been reported that restrictions placed on Japan’s RQ-4 by the US is limiting Tokyo’s capabilities. Ideally, Japan wanted the RQ-4 to provide round-the-clock surveillance against neighboring North Korea and China. Now the Defense Ministry has discovered that the drone can only loiter for at most three times a week. Washington is only willing to supply optical sensors for Japanese Global Hawks, AIS tracking of ships and electronic emissions gathering sensors will not be provided at the outset. As a result, Japan may look to Israeli industry to supplement its UAV requirements with the IAI Heron.

May 25/16: Weapons testers upgrading the Northrop Grumman RQ-4B Global Hawk have commenced laser-printing simulated ice for ice-shape testing on the UAV. Using a process known as “selective laser sintering,” it is possible to characterize ice buildup on the aircrafts wings and V-tail, a common problem found on most aircraft. The testing will now allow operators to know the airframe’s exact tolerance to buildup when carrying different fuel loads. In use since the late 1990s, the USAF is looking to extend the UAV’s lifetime through to 2034 instead of early retirement.

November 23/15: Japan is to receive three RQ-4 Block 30 (I) UAVs after the sale was cleared by the US State Department on Friday. The deal will also include associated parts, equipment and training costing $1.2 billion in total. The purchase comes at a time when Japanese Prime Minister Shinzo Abe has been beefing up his country’s defense spending to counter Chinese influence. It was announced earlier this year that Japan is planning its largest ever defence budget which, if approved, will be in the region of $41 billion.

November 18/15: Northrop Grumman have selected Swiss company Garmin’s GSX70 weather radar as part of a contract to modernize and retrofit the USAF RQ-4 Global Hawk fleet. The GSX70 was selected for its ability to better recognise weather threats and allow for better decision making as well as its easy integration capabilities with the RQ-4. The installation of the the radar is said to begin in the first quarter of 2016 with Northrop’s contract running until 2020.

October 2/15: Northrop Grumman has been handed a $3.2 billion IDIQ contract to develop, retrofit, modernize and sustain the Air Force’s RQ-4 Global Hawk fleet, with the contract running to 2020. Cost estimates for Global Hawk modernization efforts out to 2020 – originally slated as $4 billion in May – were subsequently revised down to approximately half of that earlier this month.

September 16/15: Cost estimates for upgrades to the RQ-4 Global Hawk could be half of the $4 billion previously slated, according to an Air Force official. The requirement for a new Electro-Optical system and wide-angle camera could reduce the figure down; however, this appears to be achieved through the cutting of non-essential upgrades, including a sense and avoid sensor, which were included in the original figure. With the Air Force arguing to retain only one of its two current high-altitude ISR aircraft (the other being the Cold War-era U-2), the reduced cost estimate could bring the Global Hawk into direct competition with a set of upgrades proposed by Lockheed Martin for the U-2, known as the TR-X.

May 15/15: The Pentagon is set to award $4 billion in contracts for modernization of the RQ-4 Global Hawk over the next five years, with the program funded to 2020. The program recently achieved milestone C, a key requirement for the platform to progress with modernization efforts.

May 6/15: The RQ-4 Global Hawk unmanned aerial vehicle has been given milestone C approval from the Defense Acquisition Executive. The Global Hawk demonstrated interoperability and software maturity prior to milestone C, with the program fully funded throughout the Future Years Defense Program.

Feb 4/15: Northrop Grumman starts production on four units to go to South Korea. In late 2014 the Republic of Korea awarded Northrop Grumman a contract for four RQ-4s, including two ground stations and various support equipment. This is the first Pacific sale for the Global Hawk under the Foreign Military Sales process. RQ-4s are already being procured by Australia and Japan.

FY 2013 – 2014

Increasing ops tempo.

[youtube:v=8TIw2FeXT-A]

RQ-4A Global Hawk
click to play video

June 13/14: FY 2014. Northrop Grumman System Corp. in San Diego, CA receives a $61.3 million cost-plus-fixed-fee contract modification for BAMS-D operations and maintenance services: logistics support; field service representatives; and organization, intermediate, and depot-level maintenance. That’s a significant increase, compared to past years, but the Navy has been clear about their intent to raise operational tempo (q.v. Sept 6/13).

All funds are committed immediately, using US Navy FY 2014 O&M budgets. Work will be performed in Patuxent River, MD (70%); outside continental United States (25%); and Rancho Bernardo, CA (5%), and is expected to be complete in June 2015. US NAVAIR in Patuxent River, MD manages the contract (N00019-12-C-0117).

Jan 23/14: The BAMS-D fleet hits 10,000 flying hours supporting missions in the Middle East. It has been helpful during movements of carrier and amphibious groups, and has reached its goal of 15 missions per month (q.v. Sept 6/13). Sources: NGC, “Northrop Grumman-Built Maritime Surveillance Demonstrator Unmanned Aircraft Surpasses 10,000 Combat Flying Hours”.

Sept 6/13: More missions. A maximum $10 million cost-plus-fixed-fee contract modification for additional BAMS-D/ GHMD operations and maintenance services. The goal is to increase BAMS-D operational tempo from the current 9 maritime intelligence, surveillance, and reconnaissance missions per month to a sustained level of 15 missions per month. That will require more people to handle maintenance and operations, rather than more UAVs. $3 million is committed immediately.

Work will be performed in Patuxent River, MD (70%), and outside continental United States (30%), and is expected to be complete in May 2014 (N00019-12-C-0117).

Aug 21/13: FY 2013. A $27.6 million cost-plus-fixed-fee contract modification, exercising an option for this year’s BAMS-D operations and maintenance services. All funds are committed immediately, and expire at the end of the fiscal year on Sept 30/13.

Work will be performed in Patuxent River, MD (70%), and outside the continental United States (30%), and is expected to be complete in May 2014 (N00019-12-C-0117).

Dec 18/12: Northrop Grumman Aerospace Systems in Bethpage, NY receives a $7.2 million cost-plus-award-fee contract modification to support new Airborne Recorder certification requirements for BAMS-D. The change was forced by an NSA Information Assurance Security and Requirements Directive.

Work will be performed in Anaheim, CA (75%); Bethpage, NY (20%); and San Diego, CA (5%), and is expected to be complete in December 2013. Funding will be committed as needed (N00019-08-C-0023).

FY 2011 – 2012

Crash.

[youtube:v=GGlIarp2pOQ]

BAMS-D crash
click for video

Aug 29/12: FY 2012. Northrop Grumman in San Diego, CA receives a $40.1 million cost-plus-fixed-fee contract for continued operations and maintenance services in support of the Broad Area Maritime Surveillance – Demonstrator Unmanned Aircraft System, also known as the Global Hawk Maritime – Demonstrator.

Work will be performed in Patuxent River, MD (70%) and outside the continental US (30%), and will run until August 2013. All contract funds will expire at the end of the current fiscal year, on Sept 30/12. This contract was not competitively procured pursuant to FAR 6.302-1 (N00019-12-C-0117).

June 11/12: Crash. An RQ-4A BAMS-D Global Hawk crashes into a marshy tributary of Maryland’s Nanticoke River, during a routine training flight from Naval Air Station Patuxent River. There were no injuries to civilians and no property damage, but the crash site has been blocked to recreational boat traffic while the agency investigates.

The crash leaves 4 UAVs in the program: 3 for testing, tactics, and doctrine development in the USA, and 1 deployed abroad with the 5th fleet. CNN | Wired Danger Room | WBOC.

Crash

Aug 23/11: FY 2011. A $35.6 million cost-plus-fixed-fee contract modification, exercise an option for another year of operations and maintenance services in support of the U.S. Navy Global Hawk Maritime Demonstration.

Work will be performed in Patuxent River, MD (75%), and outside the United States (25%), and is expected to be complete in September 2012. All contract funds will expire at the end of the current fiscal year, on Sept 30/11 (N00019-10-C-0018).

FY 2009 – 2010

Deployments. MP-RTIP radar.

RQ-4 Global Hawk Cutaway

Global Hawk Cutaway
(click to view full)

July 23/10: FY 2010. Northrop Grumman Aerospace Sector in San Diego, CA receives a $29.7 million cost-plus-fixed-fee contract to provide operations and maintenance services for the U.S. Navy’s Global Hawk Maritime Demonstration.

Work will be performed outside the U.S. (50%); and in Patuxent River, MD (30%); and San Diego, CA (20%), and is expected to be complete in August 2010. All contract funds will expire at the end of the current fiscal year, on Sept 30/10. This contract was not competitively procured pursuant to FAR 6.302-1.

July 15/10: A $5.5 million contract modification for software development to test maritime surveillance and maritime imaging modes for the MP-RTIP radar. At this time, all funds have been committed by the Electronic Systems Center at Hanscom Air Force Base, MA (F-19628-00-C-0100; P00209).

The Northrop Grumman/Raytheon MP-RTIP is a 1.5 x 4 foot active, electronically scanned array (AESA) radar designed to provide better resolution than current ground-viewing systems. It will equip new Global Hawk Block 40s, but at the moment, it’s experiencing software challenges with “concurrent” mode, where the radar tracks moving targets (GTMI) while maintaining a high-resolution synthetic aperture radar (SAR) mapping scan. See also Aviation Week.

Oct 1/09: Deployment. One of the U.S. Navy’s 2 RQ-4 GHMD/ BAMS-D UAVs returns from service with Task Force 57, which operates in the Persian Gulf, Red Sea, Gulf of Oman and North Arabian Sea. The UAV conducted operational “field tests” that included over 60 flights over land and sea areas, and over 1,000 hours in the air, providing images to Task Force 57 in near real-time. The BAMS-D UAV was operated by navy personnel back in the United States at Patuxent River Naval Air Station, MD.

A team from Commander Patrol and Reconnaissance Wing 2, Commander Patrol and Reconnaissance Wing 5, NAVAIR, and Northrop Grumman Corporation conducted the deployment. A forward-deployed contingent of Northrop Grumman personnel, under oversight of Patrol Wings 2 and 5, provided maintenance for the aircraft, while working closely with counterparts on the USAF’s Global Hawk maintenance team.

The Navy’s 2nd BAMS-D UAV has now been sent overseas to continue field testing, while the returning aircraft returning aircraft undergoes depot-level maintenance and conducts other tests closer to home. US Navy NAVAIR, Oct 20/09 | StrategyPage.

Aug 17/09: Inside the Navy reports that the US Navy plans to use the GHMD in support of anti-piracy operations near Somalia, but satellite communication and control issues will need to be resolved first.

July 15/09: FY 2009. A $26.6 million modification to a previously awarded cost-plus-fixed-fee contract (N00019-05-C-0057) for additional operations and maintenance support for the Global Hawk Maritime Demonstration (GHMD) Program.

Work will be performed in San Diego, CA, and is expected to be complete in August 2010. All contract funds will expire at the end of the current fiscal year, on Sept 30/09.

April 23/09: FY 2009. An $8.7 million modification to a previously awarded cost plus fixed fee contract (N00019-05-C-0057) to provide additional operations and maintenance support for the Global Hawk Maritime Demonstration (GHMD).

Work will be performed in Patuxent River, MD (90%) and San Diego, CA (10%), and is expected to be complete in November 2009. All contract funds will expire at the end of the current fiscal year.

March 24/09: Deployment. The Navy’s 1st unmanned Broad Area Maritime Surveillance Demonstrator “Global Hawk” Unmanned Aerial Vehicle lands in the 5th Fleet’s Area of Responsibility, completing its 17th successful operational mission. The UAV was flown by Commander, Patrol and Reconnaissance Wing FIVE and other P-3 aviators via a satellite link from a mission control station located at Naval Air Station Patuxent River, MD. Source [PDF].

Feb 4/09: Deployment. Reports indicate that one of the Global Hawk Maritime Demonstration UAVs has deployed to CENTCOM’s theater of operations by the US Navy. Information Dissemination believes that its future will include pirate tracking off of Africa’s eastern coast. GHMD is a limited program that is both a predecessor to BAMS, and a way to experiment and learn how an advanced maritime patrol UAV can be used in real world operations (CONOPS).

Dec 23/08: Recognition. Northrop Grumman announces that US Navy’s Air Test and Evaluation Squadron (VX-20) gave the RQ-4 Global Hawk Maritime Demonstration (GHMD) team its Q2 2008 Test Team of the Quarter award. To date, the 2 GHMD demonstrator aircraft have flown more than 1,350 hours.

The team’s accomplishments included performing more than 1,000 hours of flight operations over an 18-month period, troubleshooting issues with the communications system, integrating the automatic identification system into the aircraft so it can be used in civilian air space, conducting tests with the ocean surveillance initiative, and developing tactics and guidelines for unmanned patrol systems. From January to June 2008, the team also supported various operational activities, including the Southeastern Anti-Submarine Warfare Initiative 08-2, the USS Iwo Jima Group Sail, and the Commander Carrier Strike Group 8. The team’s successes during this period culminated with the Trident Warrior exercise in June 2008, when the team flew more than 113 hours over a 5-week period, including an unplanned 23-hour humanitarian mission in which a GHMD was re-tasked to assist in the Northern California wildfires. July saw the UAVs participate in the Rim of the Pacific 2008 fleet exercise, which saw the team finish 4 missions totaling more than 92 hours.

Nov 10/08: Training. The USAF discusses some of the logistics involved. A cadre of USAF RQ-4 pilots from the 1st Reconnaissance Squadron at Beale AFB, CA are teaching a class of 3 active-duty P-3 Orion pilots and one civilian contractor how to fly the Global Hawk. Navy officials are looking to the Air Force to assist in expediting their pending RQ-4 Global Hawk deployment, one reason the normally 5-month course is being condensed to 4.

FY 2003 – 2008

GHM-D EMD . BAMS victory.

P-8 MMA Concept

P-8A MMA Concept
(click to view full)

Sept 18/08: FY 2008. A $12.6 million modification to a previously awarded cost-plus fixed fee contract (N00019-05-C-0057) for operations and maintenance support for the Global Hawk Maritime Demonstration (GHMD), including operation and sustainment, logistics support and sustaining engineering throughout the demonstration.

Work will be performed in Patuxent River, MD (90%) and San Diego, CA (10%), and is expected to be complete in September 2009. All contract funds will expire at the end of the current fiscal year.

April 22/08: BAMS. Northrop Grumman Corp. Integrated Systems in Bethpage, NY wins a cost-plus-award-fee contract with an estimated value of $1.16 billion for the BAMS System Development and Demonstration (SDD) phase, which will create the MQ-4N Triton UAV companion to the P-8A Poseidon. The award later prevails over protests from the losing coalition of Lockheed Martin and General Atomics.

See DID’s BAMS FOCUS article for more.

RQ-4 wins BAMS

Dec 19/07: FY 2008. A $12.1 million modification to a previously awarded cost-plus-fixed-fee contract (N00019-05-C-0057) for operations and maintenance support for the Global Hawk Maritime Demonstration (GHMD), including operation and sustainment, logistics support and sustaining engineering throughout the demonstration.

Work will be performed in Patuxent River, MD (90%) and San Diego, CA (10%), and is expected to be complete in December 2008. Contract funds in the amount of $4.6 million will expire at the end of the current fiscal year.

April 30/07: FY 2007. A $7.7 million modification to a previously awarded cost-plus-fixed-fee contract (N00019-05-C-0057) for operations and maintenance support for the Global Hawk Maritime Demonstration (GHMD), including operation and sustainment, logistics support and sustaining engineering throughout the demonstration.

Work will be performed in Patuxent River, MD (90%) and San Diego, CA (10%), and is expected to be complete in December 2007. Contract funds in the amount of $4.1 million will expire at the end of the current fiscal year.

Nov 30/05: FY 2006. $10.5 million ceiling-priced modification to a previously awarded cost-plus-fixed-fee contract (N00019-05-C-0057). It exercises an option for operations and maintenance support of the Global Hawk Maritime Demonstration (GHMD), including operation and sustainment, logistics support and sustaining engineering throughout the demonstration. Work will be performed in San Diego, CA (79%) and Patuxent River, MD (21%), and is expected to be complete in November 2006.

Sept 20/05: Support. $27.1 million not-to-exceed delivery order against a previously issued basic ordering agreement (N00019-05-G-0009) for the procurement of initial spares in support of the Global Hawk Maritime Demonstration Program. Work on this contract will be performed in San Diego, CA (46%); El Segundo, CA (28%); Salt Lake City, UT (19%); Indianapolis, IN (4%); and Falls Church, VA (3%); and is expected to be complete in September 2007.

Oct 6/05: 1st flight. The first RQ-4A Global Hawk UAV slated for the Navy’s GHMD program made its first flight from Palmdale, CA, to Edward’s Air Force Base, CA. US Navy.

May 2/03: R&D. Raytheon Co. in Falls Church, VA receives a $5 million not-to-exceed order against a previously awarded basic ordering agreement N00019-02-G-0350 for requirements development and initial design of the Block 3 Global Hawk Maritime Demonstration (GHMD) data control processor, data link controls and payload processing. The contract also includes preparation of an engineering plan to integrate this system into existing ships. The TCS will provide a single unmanned aerial vehicle (UAV) mission planning, command and control, data processing and dissemination system for operation of a whole range of UAV types. Work will be performed in Falls Church, VA (80%), and Rancho Bernardo, CA (20%), and is expected to be complete in December 2003.

Feb 5/03: EMD. $185.2 million cost-plus-award-fee using an undefinitized-contract-action contract modification. Provides for engineering and manufacturing development activities in support of the Global Hawk Maritime Demonstration.

Further funds will be obligated as individual delivery orders are issued, and work will be complete by September 2006 (F33657-01-C-4600, P00020).

GHM-D EMD contract
