MQ-8 Fire Scout VTUAV Program: By Land or By Sea

MQ-8B Fire Scout
(click to view full)

S-100, armed
(click to view full)

MQ-8C test
(click to view full)

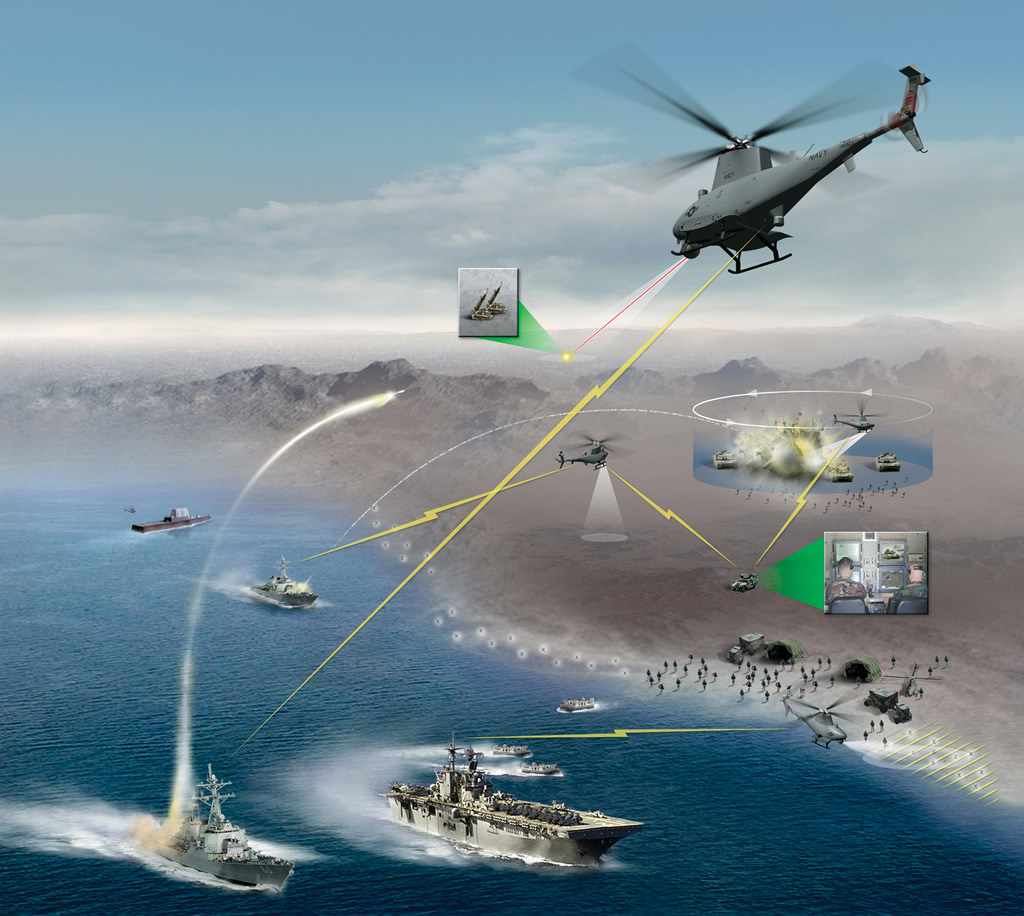

Navy MQ-8B CONOPS
(click to view full)

MQ-8A firing Hydra
(click to view full)

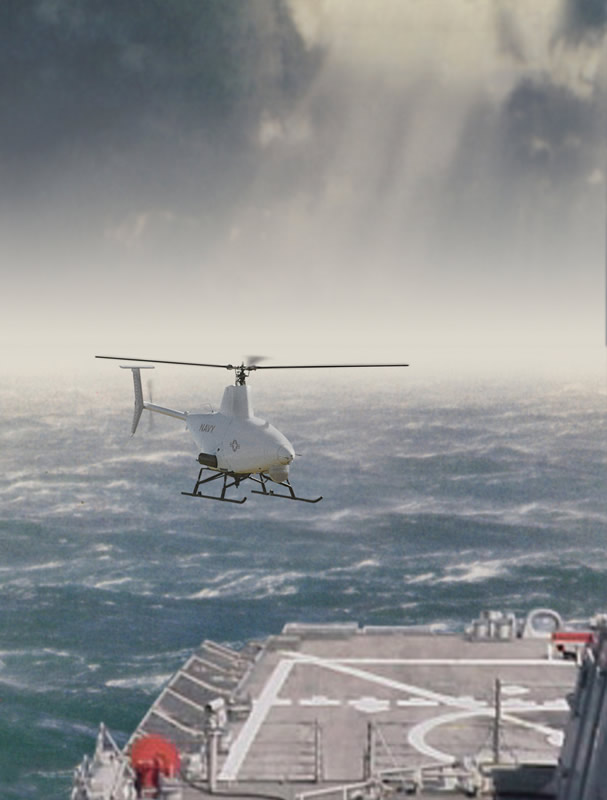

Bringing it in…
(click to view full)

Expecting a sunset?

September 23/20: HSC-22 HSC-22 received their first MQ-8C Firescout on September 15 aboard Naval Station Norfolk, the US Navy said. It is now the first East Coast squadron to operate the MH-60S, MQ-8B and MQ-8C. The Firescout is the US Navy’s latest combat drone to hit the skies and provide aerial surveillance, reconnaissance, situational awareness, aerial fire support, and precision targeting support to ground, air, and sea units. The MQ-8C Fire Scout’s main purpose is to provide radar surveillance with its multi-spectrum targeting system. The multi-spectrum targeting system is a camera that is capable of reading light, heat, and electrical signatures to find anything that might be of interest.

June 15/20: Cybersecurity Scientific Systems won a $9.6 million order, which provides for continuing improvement of the software development processes to enhance cybersecurity and software safety for the Image Based Navigation for Vertical Take-off and Landing Tactical Unmanned Aerial Vehicle Shipboard Landing program in support of the MQ-8 Fire Scout Unmanned Air Vehicle. This is a Small Business Innovation Research (SBIR) Phase III for research and development performed under the SBIR topic numbers N112-127, N03-025 and AF06-149. The MQ-8 Fire Scout Vertical Takeoff and Landing Tactical Unmanned Aerial Vehicle system is comprised of ground control stations, up to three MQ-8B Fire Scout air vehicles, and associated control handling and support equipment. The VTUAV system is designed to operate from air-capable ships with initial deployment on the Littoral Combat Ship (LCS) and will provide a significant improvement to organic surveillance capability. Work will take place in Massachusetts and New Hampshire. Estimated completion date is June 2023.

December 11/19: AN/ZPY-8 Northrop Grumman Systems won a $9.1 million delivery order in support of the MQ-8C Firescout Unmanned Aircraft System. This order is for the production and delivery of eight AN/ZPY-8 radar modification kits, eight forward access panel modification kits and all associated non-recurring engineering and qualification efforts in support of mission processor unit upgrades. Firescout is an autonomous helicopter system that provides real-time Intelligence, Surveillance, Reconnaissance, and Target-acquisition (ISR&T), laser designation, and battle management to tactical users without relying on manned aircraft or space-based assets. It has the ability operate from any air-capable ship or land base in support persistent ISR&T requirements. There are two Fire Scout variants. The smaller MQ-8B Fire Scout has deployed on multiple frigates and is currently deployed on a Littoral Combat Ship. MQ-8B Fire Scout has also deployed to Afghanistan to support counter- improvised explosive device (IED) operations. The MQ-8C Fire Scout is the Navy’s next generation autonomous helicopter. The MQ-8C will be equipped with an upgraded radar that allows for a larger field of view and a range of digital modes including weather detection, air-to-air targeting, and a ground moving target indicator (GMTI). Work will take place in California, Texas, and Philadelphia. Estimated completion will be in April 2021.

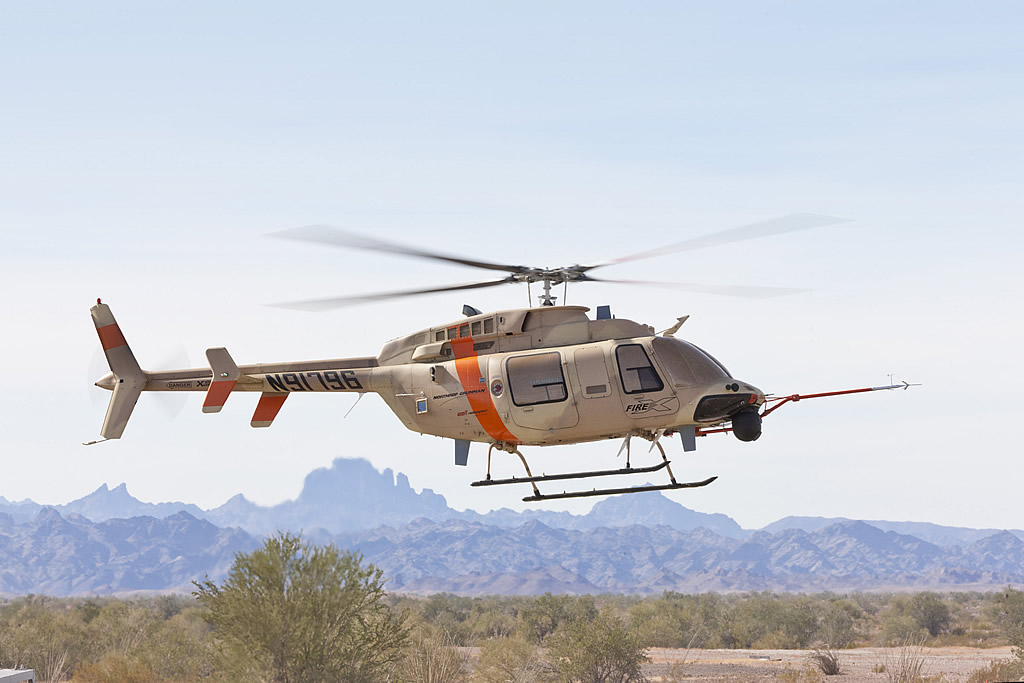

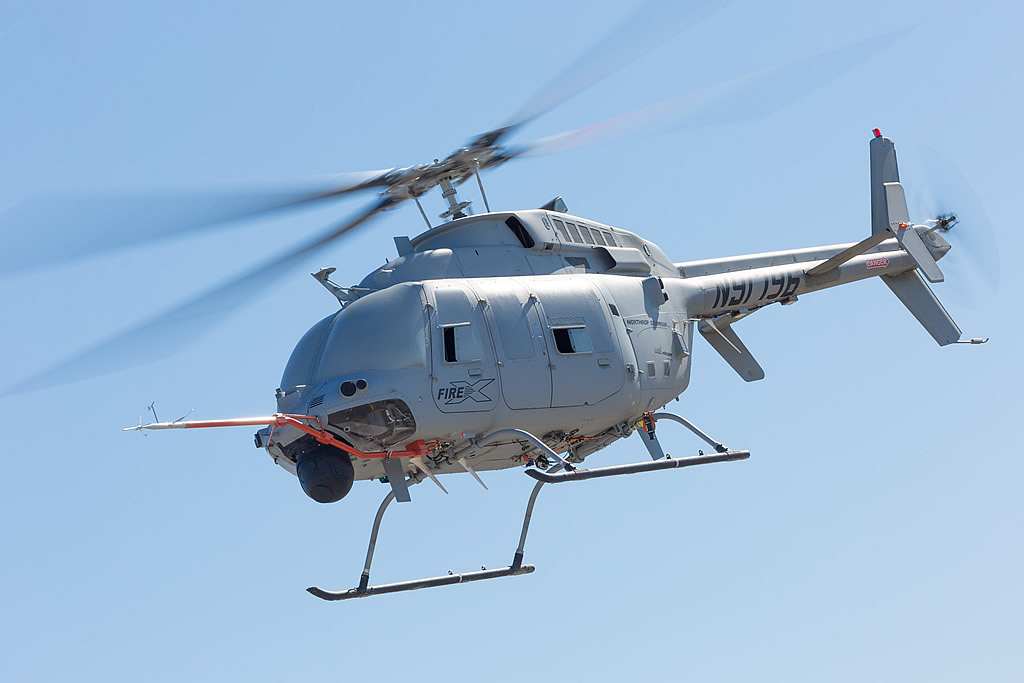

Fire-X (MQ-8C) test
(click to view full)

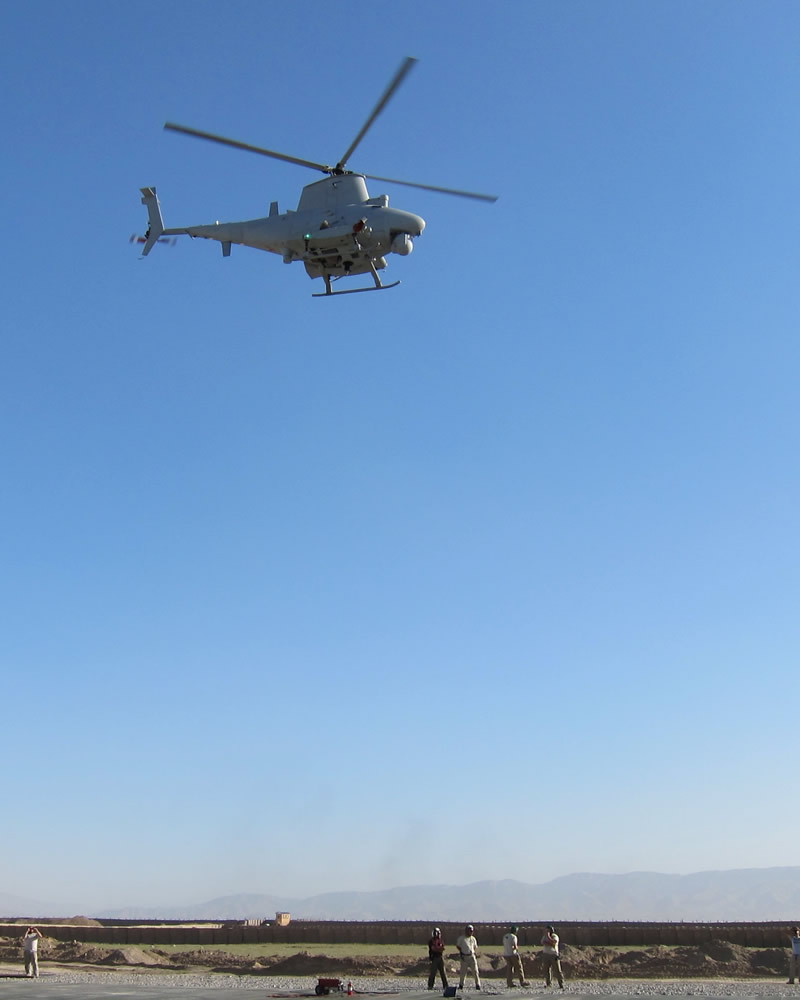

MQ-8B, Afghanistan
(click to view full)

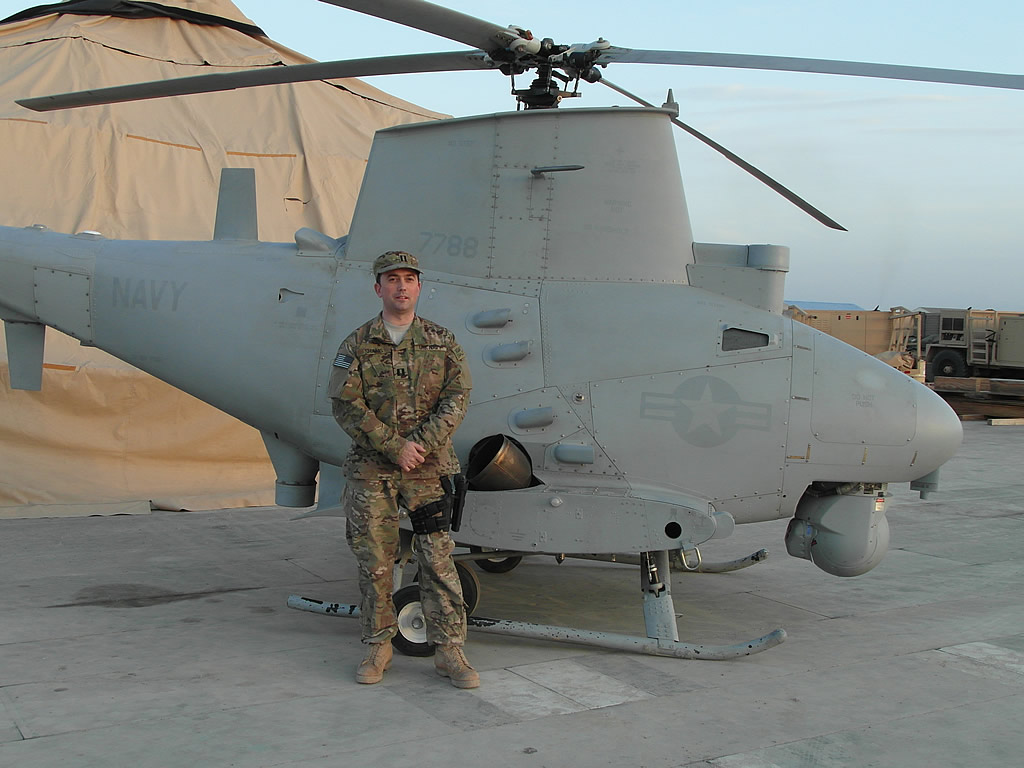

MQ-8B in Afghanistan
(click to view full)

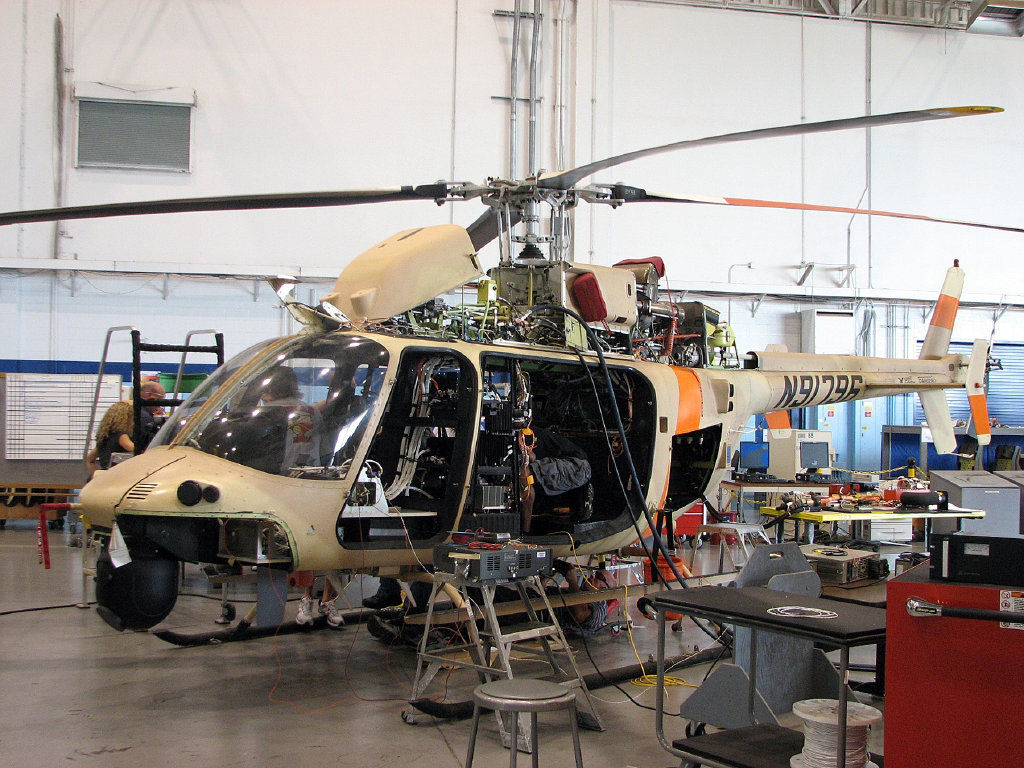

Fire-X: MQ-8C?
(click to view full)

Corrosion check
(click to view full)

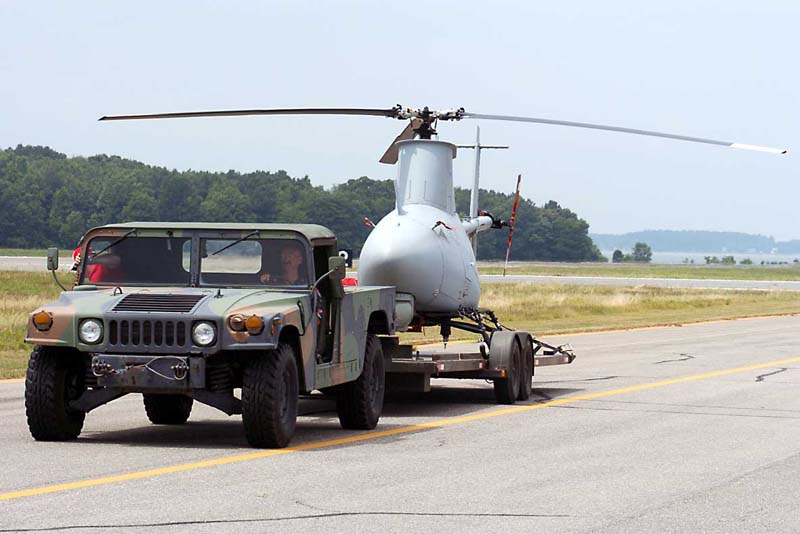

RQ-8A: Tow me, launch me.
(click to view full)

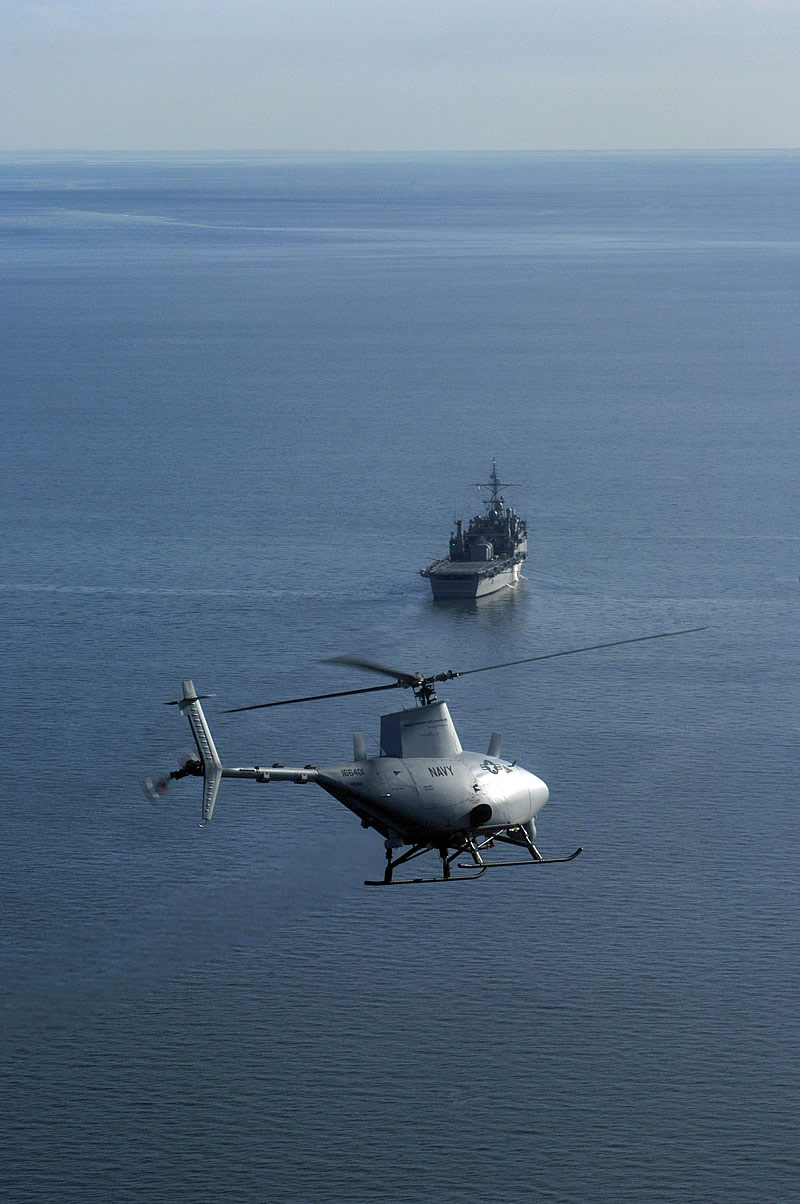

RQ-8A & LPD-13
(click to view full)

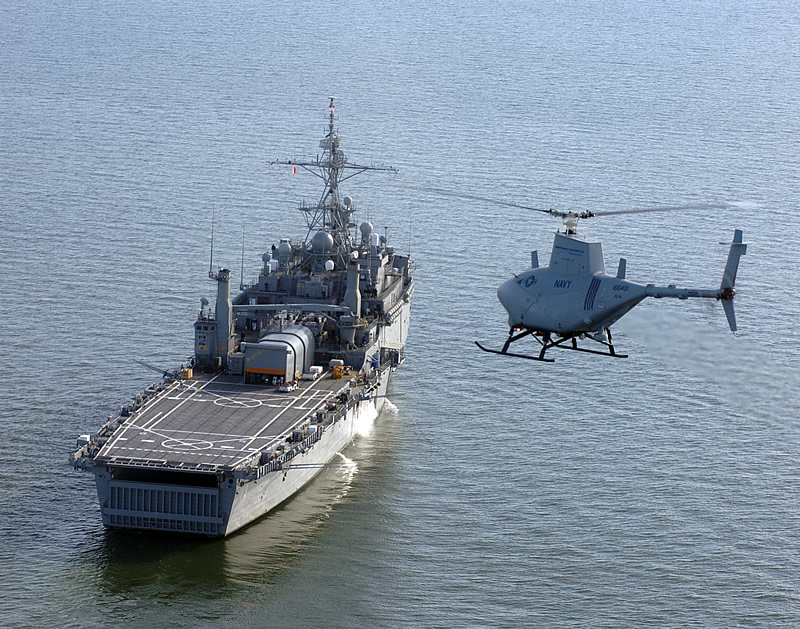

Approach.
(click to view full)

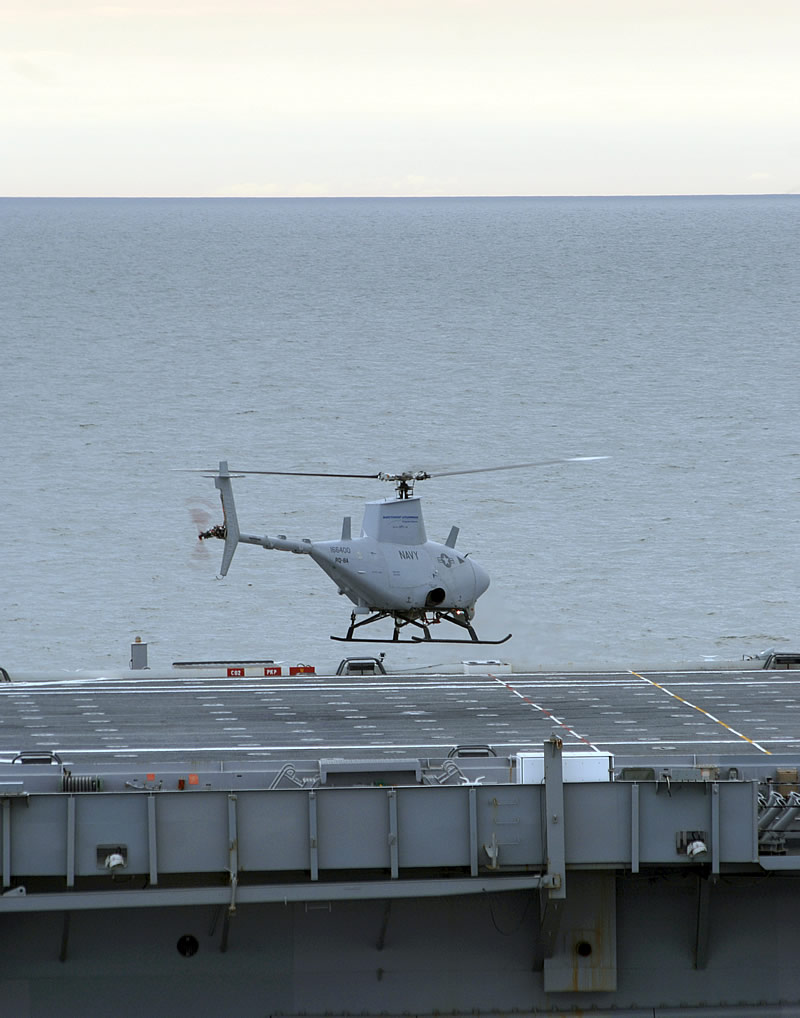

Touchdown.
(click to view full)
